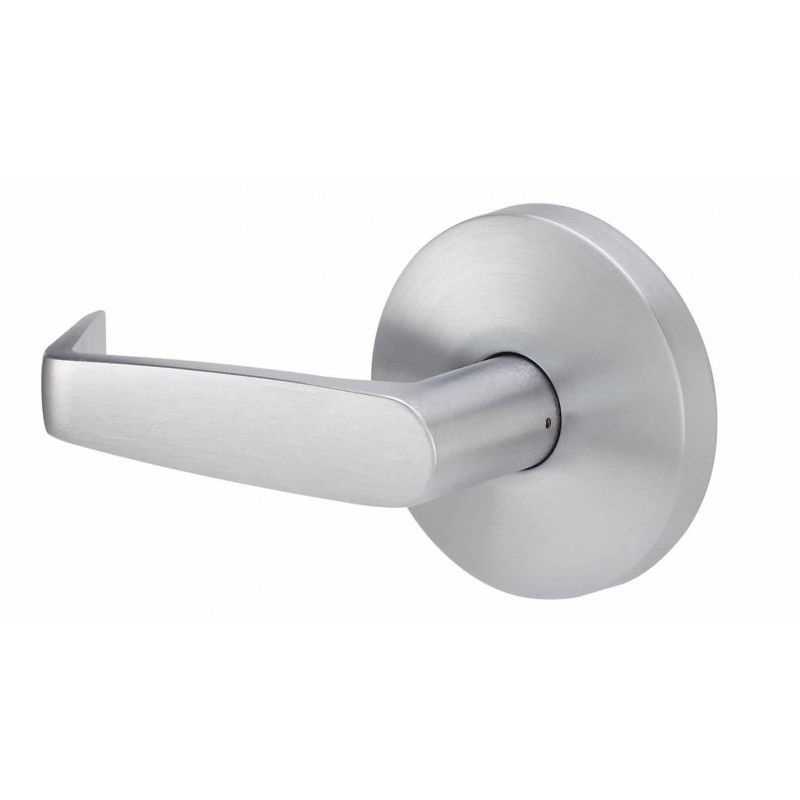

Falcon W Series Grade 2, Cylindrical Lock
The W Series medium-duty cylindrical locks feature two lever styles, two knob styles and two rose diameters to match most commercial door trims. Ideal for low-traffic doorways, the W Series can be used in retail, multi-family, mix-use, government and industrial applications.
The W Series is UL listed and meets ANSI/BHMA A156.2 Series 4000 Grade 2 standards for durability. Interchangeable cores remove for quick and convenient re-keying and are compatible with cores built by other manufacturers. The W Series delivers a quality product at a value price point and is versatile enough to fit various applications.Â
Features | Application | Options | ||
---|---|---|---|---|
| Cylindrical |
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
| Deadbolt |
|
|
|
|
|
|
| |
| Unit |
|
|
|
| Mortise |
|
|
|
| Interconnected |
|
|
|
ANSI number/grade | Function | Falcon | Arrow | Corbin/Russwin | Dorma | Hager | Yale |
---|---|---|---|---|---|---|---|
F75 | Passage | W101 | RL/RLX/MLX01 | CL3810 | CL710 | 2510 | 4601LN |
F111 | Comm/exit | W161 | RL03 | -- | CL725 | -- | 4628LN |
F77 | Patio | W201 | -- | CL3840 | CL730 | -- | -- |
F76 | Privacy | W301 | RL/RLX/MLX72 | CL3820 | CL740 | 2540 | 4602LN |
F109 | Entry/office | W511 | -- | CL3851 | CL753 | 2550 | 4607LN |
F84 | Classroom | W561 | RL/RLX/MLX17 | CL3855 | CL770 | 2570 | 4607LN |
F86 | Storeroom | W581 | RL/RLX/MLX12 | CL3851 | CL780 | 2850 | 4605LN |
Apartment entry | W711 | -- | -- | -- | -- | -- | |
Single dummy | W12 | RL/RLX/MLX08 | CL3850 | CL701 | 2517 | 4655LN | |
F82 | Entry | W501 | RL/RLX/MLX11 | CL3861 | CL750 | 2553 | 4604LN |
Falcon | Arrow | Yale | Corbin/Russwin | Dorma | Hager |
---|---|---|---|---|---|
Dane | Sierra | Augusta | NZD | LR | Withnell |
Quantum | Broadway | Pacific Beach | PZD | LC | Archer |
Avalon | -- | Monroe | -- | LG | -- |
Broadwalk | -- | -- | -- | -- | -- |
Broadway | -- | -- | -- | -- | -- |
Latitude | -- | -- | -- | -- | -- |
Longitude | -- | -- | -- | -- | -- |
Hana | Ball | -- | -- | -- | -- |
Elite | -- | Carolina | -- | -- | -- |
All effort has been made to make this information comprehensive. Since no two products are exactly alike, this data represents those products which are similar. This information was obtained from trade services and is not guaranteed nor meant to represent any product as equal to any other product.
Model/SKU | Attributes |
---|---|
W161626 LON30-19730-149 | Satin Chrome, Communicating/Exit, Longitude, |
W511606P AVA30-19530-148MK | Satin Brass, Entry/Office (Single Cylinder), Avalon, Master Keyed |
W561605P D30-19530-151KD | Bright Brass, Classroom (Single Cylinder), Dane, Keyed Different |
W161606 LON30-20430-148 | Satin Brass, Communicating/Exit, Longitude, |
W161625 AVA30-20930-151KA | Bright Chrome, Communicating/Exit, Avalon, Keyed Alike |
W511606P AVA30-19230-148KD | Satin Brass, Entry/Office (Single Cylinder), Avalon, Keyed Different |
W571613P6 LAT30-19930-151MK | Oil Rubbed Bronze, Latitude, Master Keyed |
W501626P6 LAT30-20130-149KA | Satin Chrome, Entry (Single Cylinder), Latitude, Keyed Alike |
W581622P6 LON30-20430-151KA | Matte Black, Storeroom (Single Cylinder), Longitude, Keyed Alike |
W201622 BRK30-19930-148 | Patio, Matte Black, Boardwalk, |
W561619P6 LAT30-19330-149KD | Satin Nickel, Classroom (Single Cylinder), Latitude, Keyed Different |
W571613P6 LON30-20130-150KD | Oil Rubbed Bronze, Longitude, Keyed Different |
W581622P6 LON30-19430-150 | Matte Black, Storeroom (Single Cylinder), Longitude, |
W561619P6 LON30-20830-151MK | Satin Nickel, Classroom (Single Cylinder), Longitude, Master Keyed |
W571613P6 LON30-20530-148KA | Oil Rubbed Bronze, Longitude, Keyed Alike |
