| Current Requirement at 24VDC | |||||
|---|---|---|---|---|---|
| Length of wire run (in feet) | 0-.5 Amp | .5-1 Amp | 1-2 Amp | 2-3 Amp | |
| 0-100 | 18 | 18 | 18 | 18 | |
| 100-200 | 18 | 18 | 18 | 16 | |
| 200-300 | 18 | 18 | 16 | 14 | |
| 300-450 | 18 | 16 | 14 | 12 | |
| 450-600 | 18 | 16 | 12 | NR | |
| 600-900 | 16 | 14 | NR | NR | |
| 900-1200 | 14 | 12 | NR | NR | |
| NR=Not recommended | |||||
- GSA Contract
- GS-07F-0249Y
- GSA Contract
- GS-07F-0326T
- Cage Code
- 40786
- DUNS
- 00-194-9684
Email sales@fbisecurity.com
Phone (215) 627-3205

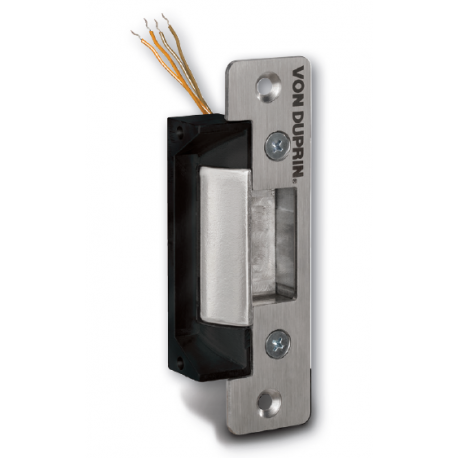

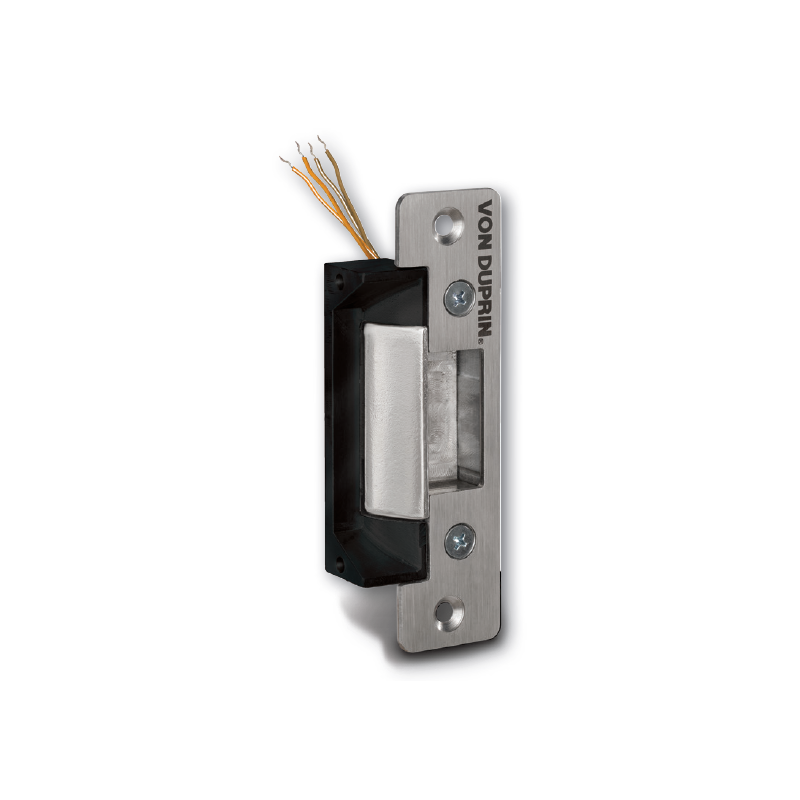

Von Duprin 4200 Series Electric Strikes for Cylindrical & Deadlatch Locks, Satin Stainless Steel
Details: Von Duprin 4200 Series Electric Strikes for Cylindrical & Deadlatch Locks, Satin Stainless Steel
Overview
The 4200 Series electric strikes are easy to order, configure in the field and install. This makes it a great choice for commercial applications where traffic control is the primary function.
Compatible with a wide range of cylindrical devices, the 4200 series makes electrifying an opening simple. It is designed and tested to work will all Schlage and Falcon cylindrical locks as well those of many other manufacturers'.
With a variety of field configurable options, the 4200 series is able to address a broad range of needs. The power failure mode (fail safe or fail secure) can be changed in the field without disassembling the strike. The 4200 series also features a 12/24 dual-voltage solenoid for field wiring of either input voltage.
Additional factory orderable options provide even greater flexibility. The 4200 series can be ordered with or without latchbolt monitor. Square face plate is offered standard to accommodate hollow metal frames, and rounded corner faceplates are available as an option for aluminum frames. An entry buzzer and rectifier kits are also available options.
The 4200 was developed with Von Duprin's high standards and engineering expertise. Its heavy duty stainless steel construction is designed to withstand abuse.
Features
- Field configurable 12/24 voltage utilizing dual-voltage internal solenoid
- Field configurable power failure mode (fail-safe/fail-secure)
- Non-handed, internal solenoid design
- Heavy duty stainless steel faceplate
- Latchbolt monitoring standard on 4212 only
- Optional entry buzzer and rectifier kits available for AC to DC operation
- 1 year electrical product warranty
Lockset compatibility
- The 4200 series is compatible with all Schlage and Falcon cylindrical locks as well as cylindrical and deadlatch locks of many other manufacturers.
- The 4211 is compatible with locksets with 5⁄8" (15 mm) throw latchbolts, or up to 3⁄4" (19mm) throw latchbolts with a 1⁄8" door gap.
- The 4212 is compatible with locksets with 1⁄2" (12.7mm) throw latchbolts, or up to 5⁄8" (15 mm) throw latchbolts with a 1⁄8" door gap.
Standard features
- Power failure mode
- Field configurable fail-secure/ fail-safe
- Voltage
- Field configurable 12 VDC/24 VDC dual voltage solenoid
- Finish
- 630 satin stainless steel
Technical specifications
| Strike | 12 VDC | 12 VDC |
|---|---|---|
| Current (amps) | 0.20 A | 0.10 A |
| Latchbolt monitor | 30 VDC | |
| Current (amps) | 0.20 A |
Model specifications
| Model number | 4211 | 4212 |
|---|---|---|
| Latchbolt throw | 3/4" | 5/8" |
| Latchbolt monitor switch | --- | ✓ |
| Face plate length | 4 7/8" | 4 7/8" |
| Backbox depth | 1 3/8" | 1 3/8" |
Lockset
| Cylindrical | ✓ | ✓ |
|---|---|---|
| Deadlatch | ✓ | ✓ |
| Mortise | --- | --- |
| Rim exit devices | --- | --- |
Number of doors
| Single | ✓ | ✓ |
|---|---|---|
| Pair | --- | --- |
Door and frame type
| Hollow metal | ✓ | ✓ |
|---|---|---|
| Aluminum | ✓ | ✓ |
| Wood | --- | --- |
Options
| EB (entry buzzer - fail-secure only) | ✓ | ✓ |
|---|---|---|
| SO12 & SO24 rectifier kit for AC to DC operation | ✓ | ✓ |
| Round corner faceplate | ✓ | ✓ |
Specifications & Options
- Security
- Fail Safe, Fail Secure
- Voltage
- 12VDC, 24VDC
- Door Frame
- Aluminum
- Monitoring
- Latchbolt
- Bolt Throw / Projection
- 3/4", 5/8"
More Von Duprin Electric Strikes
Electric Strike Wire Size Selection
6100 Series Electric Strike Cross Reference
| Name | Strike/Lock mounting | # Doors | Frame material (SGL DR) Door Material (BL DR) | Faceplate length | Drop in replaces Von Duprin | Drop in replaces Folger Adam |
|---|---|---|---|---|---|---|
| 6111 | Rim device | Single1 | All | 6" | 3031 | |
| 6112 | Rim device | Single | All | 9" | 310-44 | |
| 6113 | Rim device | Single | All | 6" | 3011,3021 | |
| 6114 | Rim nightlatch | Single | All | 7" | 310-55 | |
| 6121 | Rim device | Double-closed back | All | 9" | 310-4-1005 | |
| 6210 | Mortise | Single | HM/Alu | 4 7/8" | ||
| 6211 | Mortise or cylindrial | Single | HM/Alu | 4 7/8" | 3140 | 712 |
| 6211AL | Mortise or cylindrial | Single | Aluminum | 4 7/8" | 722 | |
| 6211WF | Mortise or cylindrial | Single | Wood | 4 7/8" | 7326 | |
| 6212 | Mortise or cylindrial | Single | HM/Alu | 6 3/8" | 3146 | |
| 6212WF | Mortise or cylindrial | Single | Wood | 6 3/8" | ||
| 6213 | Mortise or cylindrial | Single | All2 | 6" | 3041,42,61,62 | |
| 6214 | Mortise or cylindrial | Single | All3 | 9" | 310-2 3/4 | |
| 6215 | Mortise or cylindrial | Single | All3 | 9" | 310-2 | |
| 6216 | Mortise or cylindrial | Single | HM/Alu | 9" | 310-3-1 | |
| 6221 | Mortise or cylindrial | Double-open back | All | 6" | 3071,72 | |
| 6222 | Mortise or cylindrial | Double-open back | HM/Alu | 9" | 310-2 3/4 OB | |
| 6223 | Mortise or cylindrial | Double-closed back | All | 6" | 3091,3092 | |
| 6224 | Mortise or cylindrial | Double-closed back | HM/Alu | 9" | 310-2 3/4 | |
| 6224AL | Mortise or cylindrial | Double-closed back | Aluminum | 9" | 310-2 RF | |
| 6225 | Mortise or cylindrial | Double-open back | HM/Alu | 9" | 310-2 OB | |
| 6226 | Mortise or cylindrial | Double-closed back | HM/Alu | 9" | 310-2 |
1Includes double door with mullion.
2Recommended on wood frames only if drop in replacement is needed for 3041,42,61,62 on wood frames. Otherwise use 6211WF.
3Recommended on wood frames only if drop in replacement is needed for 310-2 3/4,310-2 on wood frames. Otherwise use 6211WF.
4Strike lip area cutout is slightly larger than Folger Adam.
5Surface applied strike. Mounting hole locations different from Folger Adam.
6Wood frame horizontal solenoid location differs from Folger Adam. May require frame prep modification when retrofitting.
Finishes
| US number | BHMA number | Description | Von Duprin number |
|---|---|---|---|
| US3 | - | Plated polished brass on stainless steel | 85 |
| US4 | - | Plated dull brass on stainless steel | 84 |
| US10 | 639 | Plated dull bronze on stainless steel | 06 |
| US10B | 640 | Planted dark bronze on stainless steel | 86 |
| US32 | 629 | Stainless steel,polished | 31 |
| US32D | 630 | Stainless steel,satin | 32 |
Available Model Numbers and Combinations
| Model/SKU | Attributes |
|---|---|
| 4211 US32D | 1/2"-3/4", Not Included, Not Included, Square Corner |
| 4211 US32D EB | 1/2"-3/4", Not Included, Included, Square Corner |
| 4211 US32D S012 | 1/2"-3/4", Not Included, Square Corner |
| 4211 US32D S012 EB | 1/2"-3/4", Included, Square Corner |
| 4211 US32D S024 | 1/2"-3/4", Converts 24 VAC to 24 VDC, Not Included, Square Corner |
| 4211 US32D S024 EB | 1/2"-3/4", Converts 24 VAC to 24 VDC, Included, Square Corner |
| 4212 US32D | 1/2"-5/8", Not Included, Not Included, Square Corner |
| 4212 US32D EB | 1/2"-5/8", Not Included, Included, Square Corner |
| 4212 US32D S012 | 1/2"-5/8", Not Included, Square Corner |
| 4212 US32D S012 EB | 1/2"-5/8", Included, Square Corner |
| 4212 US32D S024 | 1/2"-5/8", Converts 24 VAC to 24 VDC, Not Included, Square Corner |
| 4212 US32D S024 EB | 1/2"-5/8", Converts 24 VAC to 24 VDC, Included, Square Corner |
