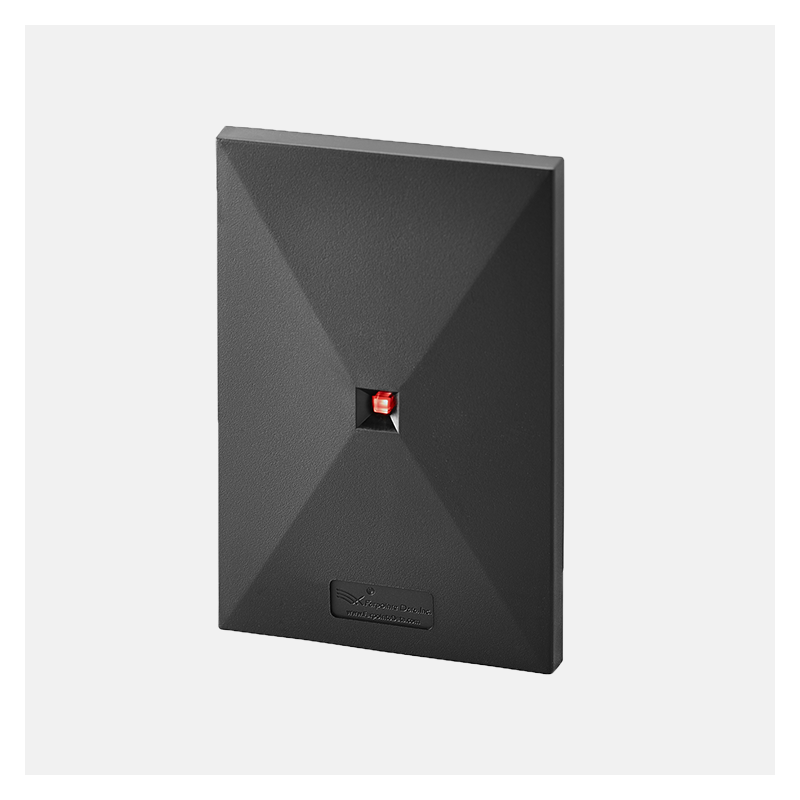

Details: ZKTeco KR500-OSDP Proximity Card Reader w/ OSDP Output

The KR500H is a proximity card access control reader with that is conveniently small in size for any thin frame doors, parking gates, fences, turnstiles, or other narrow mounting spaces. With a built-in Wiegand-Out port, KR500E can be connected to most any access control panel. The KR500-OSDP reader supports Open Supervised Device Protocol communication.

Features

• Conveniently small in size for thin mounting areas
• Weather-resistant when sealed with epoxy potting
• Multiple 125 KHz proximity cards supported

Applications

• Public Buildings & Facilities
• Commercial & Industrial Buildings
• Government & Military Facilities
• Retail & Strip Malls
• Multifamily & Mixed-Use

Specifications

Technology

125 KHz Proximity

Range

Up to 5 inches

Indoor & Outdoor Installation

Electronic sealed in weather and tamper-resistant epoxy potting

Power Supply

5-16V DC

Dimension

3.2" W × 1.7" H × 0.7" D
