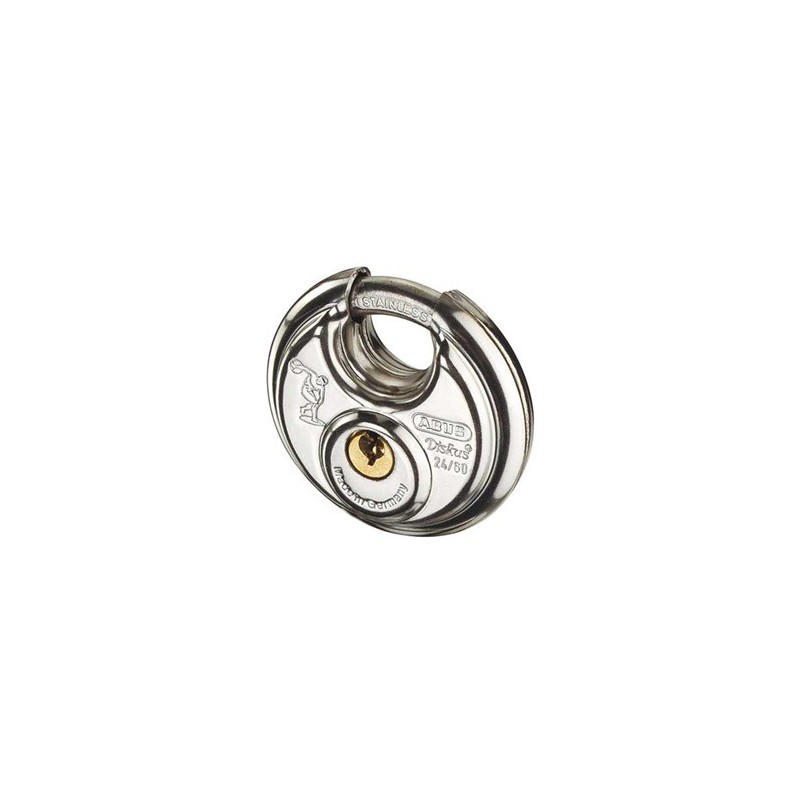

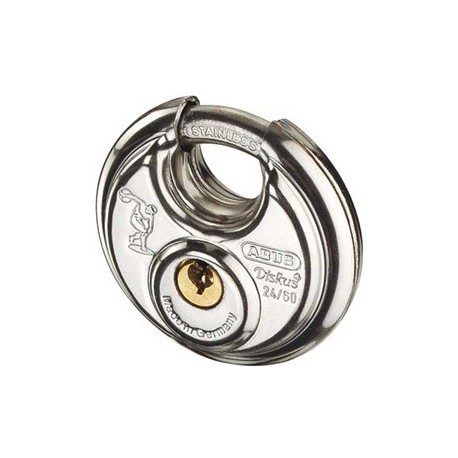

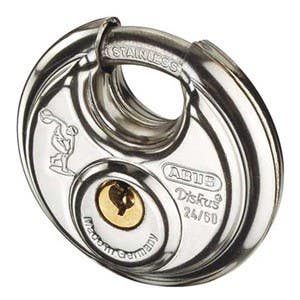

Abus 24IB/50 All Weather Diskus Padlock



Details: Abus 24IB/50 All Weather Diskus Padlock

Diskus® locks work best with security hasps

The disc lock is a special form of padlock with some distinct advantages. The disc shape effectively combats the most common ways of forcing it open. The design with only a small opening in the shackle makes it very difficult to tamper with. As the ABUS Diskus® is made mainly of stainless steel, it is used especially where security and protection against corrosion are required.

360-degree all-round protection

The Diskus® family is available in models with diameters between 50 and 80 mm. The original Diskus® is only available from ABUS. As a special model, the locks can be retrofitted with a disc cylinder (ABUS-Plus locking system) or cylinder pulling protection.


  • Lock body, inner parts and shackle made solely from stainless steel for extreme resistance to corrosion
  • Cylinder cover — maximum protection against dirt and water spray (2 23⁄64"and 2 3⁄4" only)
  • Nickel-plated cylinder for enhanced weather protection
  • Original Diskus design: 360° protection
  • Diskus Deep-Welding Technology — the best in break-in protection
  • Precision pin cylinder
  • Key retaining: locking only with the key (key cannot be removed while the lock remains open)
  • Made in Germany


  • Also ideal in combination with ABUS Diskus® Hasp 140, so the lock shackle cannot be attacked with tools


  • Sizes: 1 31⁄32", 2 23⁄64", 2 3/4"


Depth e
1 inch
Height f
1 31/32 inch
Horizontal clearance b
33/64 inch
Key Blank
No. of keys supplied
2 keys incl
individual box
keyed different
Shackle diameter d
1/4 inch
Vertical clearance c
5/16 inch
Weight [lbs]
0.25 lbs
Width a
2 1/64 inch

⚠️WARNING: Cancer and Reproductive Harm — www.P65Warnings.ca.gov

Available Model Numbers and Combinations

Model/SKU Attributes
KD (24590) Keyed Different
KA (24510) Keyed Alike
