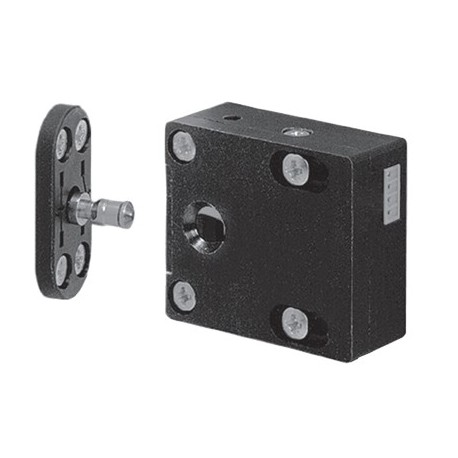

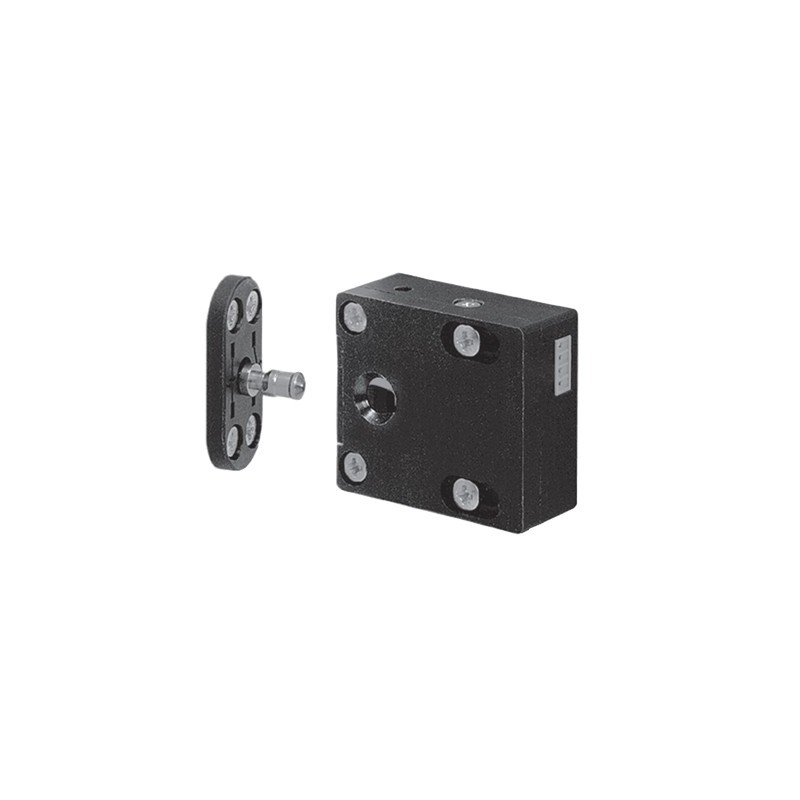

RCI 3510LM Electromechanical Cabinet Lock
3510LM
STANDARD FEATURES
Lock Housing1⅞" D × 1⅝" W × 25⁄32" L (48mm × 42mm × 20mm) Polycarbonate
Locking Pin Assembly
3⁄16" (4.5mm)
Operating Voltage
12⁄24VAC intermittent ±10%;
12⁄24VDC continuous ±10%
Mode of Operation
Fail Unlocked or Fail Locked
Cycle Rating
500,000 cycles
Current Consumption
260 mA @12VDC
130 mA @ 24VDC
140 mA @ 12VAC
70 mA @ 24VAC
Power Requirements
The compact locking units 3510 and 3510MS can be operated with
RCI's 10 Series transformer and regulated power supplies.
MS Contact Rating
1A @25V; Model 3510MS incorporates an optional contact which monitors the state of the lock (locked or unlocked).
RCI recommends using our 9 Series keypads for audit trail capability.
Operating Temperature
10° to 40°C ; 50° to 104°F
Holding Force
200 lbs. (91 kgs.)
