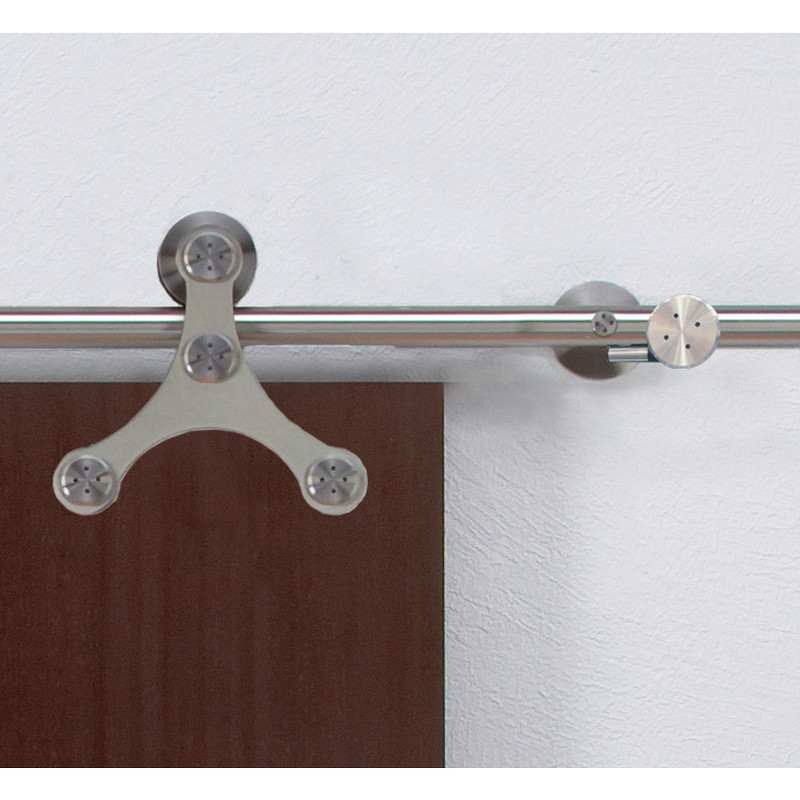

ABP-Beyerle USU65DS Tritec Series Barn Door Hardware Set for Wooden Doors

USU65DS-

$1,762.04

Details: ABP-Beyerle USU65DS Tritec Series Barn Door Hardware Set for Wooden Doors

Features

  • Single door set
  • Anti-jump device
  • Solid track rail for smooth and quiet operation
  • Made from stainless steel (AISI304L)
  • Heavy duty polymer roller
  • Finish: satin stainless steel

Benefits

  • ANSI/BHMA A156.14-2013 tested and certified grade 1
  • Intertek certification
  • Door thickness: 1 7/16" — 1 3/4"
  • Initial friction < 10 NM
  • Maximum door weight: 320 lbs (145 kg)
  • Height adjustment: +/- 1/8"
  • Including softstop Soft-Tec
  • Passage width 29 1/2" - 35 7/16"

Kit Includes

  • One (1) track rail 70 7/8"
  • Two (2) trolleys
  • Three (3) wall mounts
  • Two (2) softstops Soft-Tec
  • One (1) door bottom guide
  • hanger bolts

Available Model Numbers and Combinations

Model/SKU Attributes
USU65DS-1800EF 29.5" - 36.17"
USU65DS-2100EF 35.81" - 39.38"
USU65DS-2300EF 39.75" - 44.06"
USU65DS-2540EF 44.5" - 49.19""
