Reduced price! Adams Rite 3700/8700 Series Rim Exit Device

Adams Rite

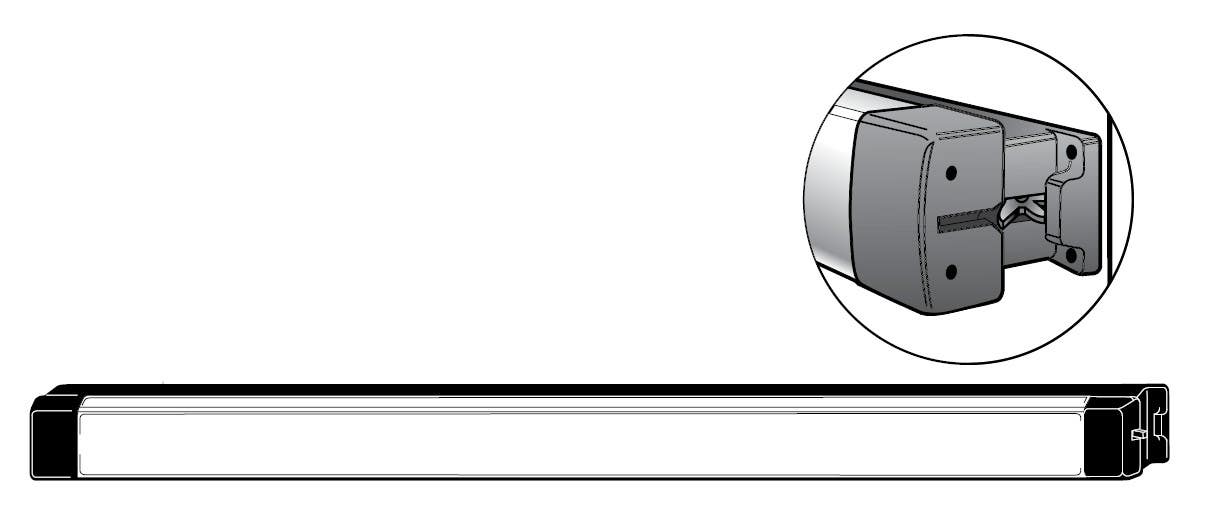

Adams Rite 3700/8700 Series Rim Exit Device

$524.00

Details: Adams Rite 3700/8700 Series Rim Exit Device

Exit Devices simplify egress and are priceless during emergencies. With the Adams Rite 3700 Series Fire-Rated 8700 Series Life-Safety Rim Exit Device you can rest easy knowing that your facility is fully equipped for an emergency. Available in Life-Safety and Fire-Rated models.

Model Type Rating Door Construction Max Size Single Doors Max Size Pairs & Double Egress
3700 Rim 3 Hr Hollow metal or wood 4'0" × 80" 8'0" × 8'0"

Features

  • Patented "Starwheel" bolt interlocks door to frame
  • Strong, durable construction for a high level of security
  • Easy to install
  • Unobtrusive design for clean sight lines
  • Pushbar clad or anodized, not plated, in a variety of finishes

Specifications

3700 Series Certifications:

  • UL Panic-Fire Exit Hardware, 3-Hour Fire Label
  • UL 305 Panic Hardware
  • California State Fire Marshall
  • New York City MEA*
  • Warnock/Hersey Listing

8700 Series Certifications

  • UL 305 Panic Hardware
  • ANSI/BHMA A156.3 Grade 1
  • California State Fire Marshall
  • New York City MEA*

*Consult Factory for specific number

Materials
Pushbar made of extruded aluminum, clad or anodized in a variety of finishes
Handing
Device is non-handed. Lever Entry Trim is field reversible
Pushbar Length
Standard sizes: dimensioned for 30", 36", 42", and 48" openings. Standard width bars can be field cut to the next smallest opening width
Door Thickness
Suits 1¾" standard, up to 2¼"
Stile Width
3700 — Minimum 3¾". Door construction may require additional stile width to meet fire ratings and provide adequate strength. 8700 — Minimum 3¾"
Projection
2⅝" when fully projected, 1⅝"when dogged
Dogging
Standard dogging with hex key or cylinder dogging for 8700 Series only. Electric dogging also available for 3700 and 8700 Series
Fasteners
Standard self-tapping screws. Optional Sex Bolt Kits 26-0584 (two per device). Specify finish
Cylinders
(available separately)
Cylinder × Fixed Pull (Function 03)
Accepts any standard rim cylinder
3080 Entry Trim
(Functions 08, 09): Accepts any standard diameter mortise cylinder with MS® cam. Accommodates cylinder lengths from 1" to 1¼". (Available separately)
Warranty
Five year limited
Starwheel Bolt
1. When door closes, the interlocking noseguard and starwheel bolt close around the strike. The deadlocking slide spring over, locking the starwheel bolt to the strike.<br />2. When pushbar is depressed, the deadlocking slide moves back, allowing the door to unlock from the strike. This unique interlock provides solid security and prevents jamb spreading
Strike
Standard hardened steel strike (included)
Removable Mullion — 3889
Allows the use of rim exit devices on paired doors without narrowing the doors. Provides higher security and better traffic flow than paired doors with vertical rod exit devices. The 3889 is used for fire-rated applications or with non-rated devices on wood or hollow metal doors. Available in primer only. Specify door height when ordering

Options and Accessories

Silent Electrification Motorized Latch Retraction
The SE Motorized Latch Retraction option provides near-silent operation for quiet environments such as hospitals, offices, hotels, and libraries where solenoid-driven devices would be disruptive
Electric Latch Retraction:
The EL option uses a solenoid mounted in the pushbar for instantaneous unlocking and locking of the exit device from a remote location or access control device. The EL option is available for rim exit devices only
Alarmed Exit Device
This battery-operated option emits a loud (95 decibel) alarm to notify management of unauthorized exit. Available on minimum openign width 36". Cannot be ordered with other exit device options
Request to Exit (REX) — Monitor / Signal Switch
Mounted in the exit device pushbar on the hinge end, the switch can be used to activate signal light, horn, monitor, or other devices
Cylinder Dogging
For management control of dogging exit devices for life-safety exit devices only
Electric Dogging
A holding magnet keeps the pushbar depressed (set manually) and the latch retracted for lower profile exit devices, resulting in less damage and quieter operation
Matching End Caps
Matching end caps are available for applications where it is preferable that the end caps match the finish of the exit device. Available for US finishes only
Available Finishes
313 Dark Bronze Anodized, 335 Black Anodized, 628 Clear Anodized, US3 Bright Brass, US4 Satin Brass, US32 Bright Stainless, US32D Satin Stainless
01 02 03 08 09 14
Exit only - no outside operation No outside operation - pull only when dogged Night latch - key retracts latch Key outside unlocks/locks lever Night latch - key unlocks trim, trim retracts latch/trim relocks when key is removed Passage only
Cylinder type - N/A Cylinder type - N/A Cylinder type - Rim Cylinder type - Mortise Cylinder type - Mortise Cylinder type - N/A

About Adams Rite

Adams Rite designs, manufactures and markets door hardware products to the industrial, commercial, and institutional building construction industry. Carrying an extensive line of products including locks, latches, electric strikes, exit devices and integrated door assemblies, Adam's Rite has been providing security products to the United States and beyond for over 100 years. Standing by their tradition of developing new and innovative products, Adam's Rite builds their hardware to function well and to look good doing it, designing their products to complement the modern business aesthetic while meeting safety and access codes.

Available Model Numbers and Combinations

Model/SKU Attributes
8701ELM2-A36B-12 Rim exit device for wood and hollow metal, Clear Anodized, Electric Latch Retraction, Dual Switch, Alarmed Exit Device for 36" Door Width, Clear Anodized, Default, 12 Volts
8702CM2-A30B Rim exit device for wood and hollow metal, Dark Bronze Anodized, Cylinder Dogging (non-fire rated devices ONLY), Dual Switch, Alarmed Exit Device for 30" Door Width, Clear Anodized, Default,
8700--36-US3 Rim exit device for wood and hollow metal, Bright Brass, No option, No Monitor, 36", Bright Brass, Default,
8700-M-48-US32MEC-12 Rim exit device for wood and hollow metal, Bright Brass, No option, Single Switch, 48", Bright Stainless Steel, Match Finish, 12 Volts
8700-M2-A42B-US4-24 Rim exit device for wood and hollow metal, Bright Brass, No option, Dual Switch, Alarmed Exit Device for 42" Door Width, Satin Brass, Default, 24 Volts
8700ELM-42-US3 Rim exit device for wood and hollow metal, Bright Brass, Electric Latch Retraction, Single Switch, 42", Bright Brass, Default,
8700ELM2-A36B-US32MEC-12 Rim exit device for wood and hollow metal, Bright Brass, Electric Latch Retraction, Dual Switch, Alarmed Exit Device for 36" Door Width, Bright Stainless Steel, Match Finish, 12 Volts
8700C-36-US3 Rim exit device for wood and hollow metal, Bright Brass, Cylinder Dogging (non-fire rated devices ONLY), No Monitor, 36", Bright Brass, Default,
8700EDM-A30B-US3 Rim exit device for wood and hollow metal, Bright Brass, Electric Dogging, Single Switch, Alarmed Exit Device for 30" Door Width, Bright Brass, Default,
3701C-A42B Fire-rated rim exit device for wood and hollow metal, Clear Anodized, Cylinder Dogging (non-fire rated devices ONLY), No Monitor, Alarmed Exit Device for 42" Door Width, Clear Anodized, Default,
3703--A30B Fire-rated rim exit device for wood and hollow metal, Black Anodized, No option, No Monitor, Alarmed Exit Device for 30" Door Width, Clear Anodized, Default,
3700--42-US32-24 Fire-rated rim exit device for wood and hollow metal, Bright Brass, No option, No Monitor, 42", Bright Stainless Steel, Default, 24 Volts
3700-M-A36B-US4 Fire-rated rim exit device for wood and hollow metal, Bright Brass, No option, Single Switch, Alarmed Exit Device for 36" Door Width, Satin Brass, Default,
3700-M2-A48B-US32DMEC-12 Fire-rated rim exit device for wood and hollow metal, Bright Brass, No option, Dual Switch, Alarmed Exit Device for 48" Door Width, Satin Stainless Steel, Match Finish, 12 Volts
3700ELM-48-US32-24 Fire-rated rim exit device for wood and hollow metal, Bright Brass, Electric Latch Retraction, Single Switch, 48", Bright Stainless Steel, Default, 24 Volts

View All Model Numbers and Options
