Alarm Lock DL2700LD Trilogy T2 Digital Lock w/ Classroom Lockdown Indicator & Keyfob, Satin Chrome

$787.33

Details: Alarm Lock DL2700LD Trilogy T2 Digital Lock w/ Classroom Lockdown Indicator & Keyfob, Satin Chrome

At the first sign of trouble outside, with just one button and virtually no special training or knowledge required, faculty and/or students of all ages can simply press Trilogy's inside 'privacy' button to lock out unauthorized access, instantly locking-down a classroom or area, all while remaining safely within the room. There is no need to open the door, nor use a special key, since the fingertip-activated button is located on the inside door, i.e., the same side as classroom occupants. Trilogy's lockdown function automatically disables free passage through the door and even locks out general PIN user codes, since routine Trilogy keypad access is temporarily suspended whenever the privacy button is activated (even when the lock is time-scheduled for free-access mode).

Instantly, a lock-down override code, however, will reactivate the pushbutton keypad and enable authorized teachers/staff, outside the classroom, to readily bypass the lockout function at any time, should students, etc. accidentally or purposefully activate lockdown mode. (In fact, all master and management codes (11) will permit instant access to the Trilogy protected area.)

Features

Features Lockdown Indicator Bar & Keyfob-Activation

  • Lockdown up to four locks with one compact remote keyfob, supplied (up to 50 RR-4KEYFOB keyfobs supported per lock)
  • Bright visual lockdown indicator bar on inner door; Outside small indicator light flashes and/or beeps when in
  • Up to 100 different user codes (3-6 digits)
  • 5AA battery operated; 3 to 4 years battery life or
  • 100,000 cycles, typ.
  • Grade 1 Durability

Downloads

DL2700LD Lockdown Lock

Trilogy© T2 Digital Lock with LocDown™ Features:

Keyfob-Activation & Lockdown Indicator Bar Inside

dl2700ld

At the first sign of trouble, faculty staff can remotely press their pocket-sized keyfob's button to lock out unauthorized access, instantly locking-down a classroom or area, while remaining safely within the room. (Keyfob activation up to 100' away, depending on building construction.) Formulti-classroom users, up to 50 keyfobs can be supported on each lock and each keyfob can control upto four locks. With Trilogy's lockdown function, only users with a security level of Master or Manager are allowedaccess and can unlock the lock. All other basic user codes are denied access during emergencylock down. Instantly, a return to normal command, however, can be sent from a keyfob, re-enablingauthorized teachers/staff and first responders outside the classroom, thus disabling emergencylockdown at any time.

dl2700ld
  • Lockdown up to four locks with one compact remote keyfob - Pocket-sized, just over 2" (one included with DL2700LD)
  • Bright visual lockdown indicator bar on inner door confirms security activation to occupants; Outside small indicator light flashes and/or optionally beeps when in lockdown
  • Grade 1 Durability. Grade 1 Lockset , rugged all metal keypad
  • Up to 100 different user codes (3-5 digits). Master, manager and emergency, plus 3 service codes
  • 100% fingertip programmable, easy installation in less than an hour (Modified ANSI 115 Prep simply retrofits standard locksets.)
  • Individual, group or total user code enable/disable. Passage mode, too
  • Long-life battery operated; uses 5 standard AA batteries
  • Non-handed for easy installation and versatility
  • "W" Weatherproof Models available for exterior use, -31°F to +151°F (-35°C to +66°C )
  • Remote Keyfob For Lockdown: 4-Button Keyfob (2 3/8" x 1 1/4" x 1/2"), controls up to 4 locks and uses replaceable battery. One included with DL2700LD Lock; up to 50 can be supported on each lock. Additional keyfobs, order part no. RR-4KEYFOB. Portable keyfob range up to 100', depending on building construction constraints.

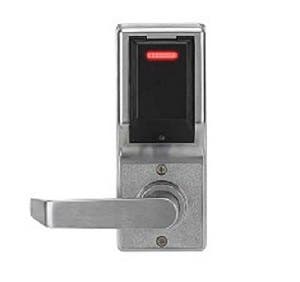

  • Indicators: Activating LocDown mode via keyfob illuminates a large,red super-bright indicator bar on lock back, & red indicator light, on front. Additional, audible lock-down indicator tone is a programmable option. Routine momentary green visual/audible entry indicator activated with authorized lock usage; visual indicator warns of low battery condition.
  • Operation: Clutch mechanism permits turning lever without retracting latch and reduces stress on lock bodies and spindle. Outside lever free turning in locked position. Entering access code, key bypass, or remote bypass will allow lever to retract latch. Inside lever always instant egress.
  • Door Thickness: 1 5/8" to 1 7/8". Other thicknesses. Please consult Alarm Lock.
  • Backset: 2 3/4" Standard. 2 3/8" backset also available

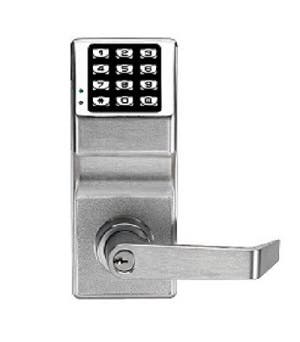

  • Keypad: All metal, 12 button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service codes, lockout and remote override capability and allowable entry time from 5 to 20 seconds. 4 Different keypad tones and keypad may be silenced.
  • Standard Key Override Cylinders: Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included: HW580 fits Schlage©, Corbin/ Russwin© CL, Sargent© 480 Series, ASSA©65-611. Model HW620 fits Ilco© and Lori© cylinders.
  • Interchangeable Core Models: Accepts 6 & 7 Pin Cylinders from: Best©, Arrow©, KSP©, Medeco Keymark© & Kaba Peaks©. Also available IC Core models for Yale©, Medeco©, Sargent, Corbin/ Russwin CL and Schlage. Alarm Lock Tailpiece is supplied; IC Core is not included.
  • Latchbolt: UL Listed, fire rated, 3 hours, 1/2" throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors.
  • Strike: 1 1/8" x 2 3/4" T strike & 1 1/4" x 4 7/8" ASA strike included. With screws for wood or metal jambs.
  • Latch Front: 1 1/8" x 2 1/4" wrought brass or stainless steel.
  • Handing: Non-handed.
  • Finishes: US3 polished brass, US26D satin chrome, 10B duronodic
  • Power: 5 AA alkaline batteries (supplied), provide up to 5 years long battery life &/or approximately 75,000 cycles, typ., engaging Trilogy's unique Flex Drive™ motor, depending on actual lock usage. Audible low battery alert.
  • Door Prep: Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes. Cleanly, simply retrofits standard locksets.
  • Compliances: Grade 1, heavy duty cylindrical lockset, UL listed and FCC certified. ADA compliant leversets.
dl2700ld dl2700ld dl2700ld

Alarm Lock Electronic Standalone Pushbutton Lock Comparison Chart

Model & Feature DL2700 DL2700LD DL2700CR/DB DL1200 Series ETDL27 Series
Lock Type Cylindrical Cylindrical Mortise Narrow Stile Exit Trim for use w/ Panic Device
User Codes 100 +3 +1 100 +3 +1 100 +3 +1 100 +3 +1 100 +3 +1
Code Length 3-6 digits 3-6 digits 3-6 digits 3-5 digits 3-6 digits
Programming Keypad only Keypad only Keypad Keypad Keypad
Vandal-Proof Keypad All metal, 12 button. For Double-Sided Keypads:Model DL5200 All metal, 12 button All metal, 12 button All metal, 12 button All metal, 12 button
Trim w/Rugged Clutch Straight or curved lever Straight or curved lever Straight or curved lever Straight or curved lever, thumbturn or knob Straight or curved lever
Dimensions, Outside 3-1/4”W x 8”H, 6-3/8” at lever 3-1/4”W x 8”H, 6-3/8” at lever 3”W x 11-1/16”H, 6-3/16” at lever 14-3/8”H x 1-5/8”D x 13⁄4”W 3”W x 11-1/16”H, 6-3/16” at lever
Privacy/Lockout Lockdown Indicator bar & Keyfob incldd
Special Model Ordering Option - Double Sided Keypad Access, DL5200 CR Classroom or DB Deadbolt Option - Narrow Stile Exit Trim DL1200ET
Weather-Proof -31 to 151˚ F WP version Standard Standard Standard Standard
Handing Nonhanded Nonhanded Handed; Field Reversible Nonhanded Nonhanded
Door Thickness 1-5/8 to 1-7/8” (others on request.) 1-5/8 to 1-7/8” (others on request.) 1-5/8 to 1-7/8” (others on request.) 1-3/4” 1-5/8 to 1-7/8” (others on request.)
Backset 2-3/4” (included); 2-3/8”option. 2-3/4” (included); 2-3/8”option. 2-3/4” (included) 31/32, 1-1/8 & 1-1/2"
Cylinder Large key-in-knob, incld -or- IC Prep for Best/Falcon/Arrow (w/o cyld.) Large key-in-knob, incld -or- IC Prep for Best/Falcon/Arrow (w/o cyld.) 1-3/8" mortise cylinder, supplied. Generic Rim cylinder, supplied. 1-1/8, 1-1/4, 1-3/8” supported. Generic Rim cylinder, supplied. Other mfrs. - Cylinder Adapters must be ordered separately.
Special Order Cylinders Yale, Medeco, Sargent, Corbin/Russwin, Schlage Yale, Medeco, Sargent, Corbin/Russwin, Schlage (Others available on request thru factory)
Relay Options yes yes yes yes yes
Battery/Cycles Typical 5AA; 200000 or up to 5 years 5AA; 100000 or up to 3 - 4 years 5AA; 60000 2-3VLithium, 100000 5AA; 60000
Ratings BHMA Grade 1 Lockset; 3hr. Fire Rated UL BHMA Grade 1 Lockset; 3hr. Fire Rated UL 3hr. Fire Rated UL 3hr. Fire Rated UL
Architectural Finishes US26D, US3, 10B US26D, US3, 10B US26D, US3, 10B US10B,US26D,MS, MB US26D, US3, 10B

Available Model Numbers and Combinations

Model/SKU Attributes
DL2700LDIC/26D
DL2700LDIC26D-S
DL2700LD/26D
