> >>>>Best 8T 2 7 S S1606 CS LL NF SH Tubular Deadbolt
Reduced price! Best T Series Tubular Deadbolt

Best Access

Previous Next

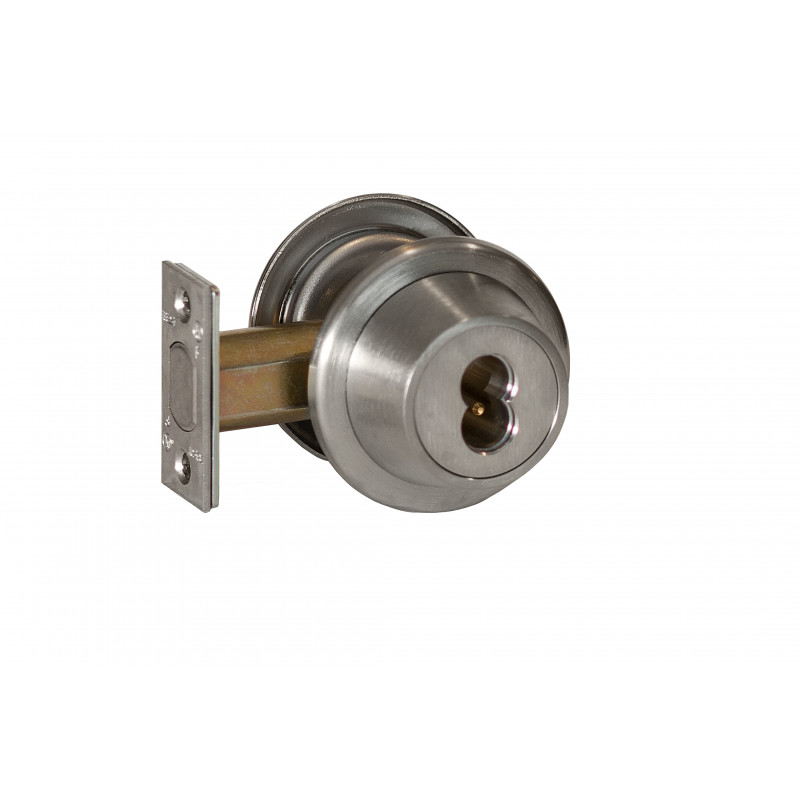

Best 8T 2 7 S S1606 CS LL NF SH Tubular Deadbolt

8T 2 7 S S1606 CS LL NF SH

Backset
2-3/8"
Function
Single Keyed Classroom
Strike
ANSI deadbolt
Finish
Satin Brass
Concealed Screws
Included
Drive-in Bolt
Not Included
Lead Lined
Included
Security Head Screws
Included
edit options

$297.00

Details: Best 8T 2 7 S S1606 CS LL NF SH Tubular Deadbolt

DESCRIPTION

Used either as a standalone or in conjunction with cylindrical locks for extra security, the BEST T Series consists of two strong options: 8T: Grade 1 tubular deadbolt 7T: Grade 2 tubular deadbolt Built with identical tubular assemblies, the 7T and the 8T both fit standard door preps. The 7T can be found in low-security areas, such as bathrooms or storage rooms. The 8T is often paired with a cylindrical lock in commercial office spaces, residential applications and other spaces where there is a greater need for security—and, more specifically, a deadbolt that is more resistant to brute force attack. The 8T is also available with lead line options, making it a good solution for radioactive doors (MRI, x-ray, etc.) in healthcare facilities.

Features:

  • No exposed mounting screws standard on 8T2/8T3 double cylinder M function only (available as an option on 8T2/8T3 K, L, and S function)
  • Full 1" stainless steel throw deadbolt
  • Free-turning, wrench-resistant, tapered cylinder ring
  • 8T2/8T3-solid extruded brass or bronze cylinder 7T2/7T3-solid cast zinc with brass or bronze shell
  • Stainless steel for strength and corrosion resistance
  • Simple installation; self-aligning and reversible strike
  • May be keyed into existing BEST® masterkeyed system
  • The original interchangeable core permits instant, economical rekeying
  • ADA turn lever
  • Deadbolt UL listed for use as auxiliary lock type on 3 hr. fire doors (GWXT). These locks also carry the C-UL mark which is officially accepted in all of Canada, indicating compliance with appropriate Canadian standards and codes.

Specifications:

Backset
7T2/8T2— 2 3⁄8", 7T3/8T3— 2 3⁄4"
Cylinders
8T2/8T3— ANSI A156.36-2010 Auxiliary Locks, Grade 1 Operational, BHMA, Strength and Security with drill-resistant core (1CD/1CDP.1CDB/1CDF/1CDM/1CDX)
7T2/7T3— ANSI A156.36
2010 Auxiliary Locks, Grade 2 Operational, BHMA, Strength and Security with drill
Deadbolt
7T2/7T3— 1" throw, 5⁄8" × 7⁄8" bolt. Brass nickel plated, with concealed hardened steel free-turning pin. Housing fits 1" bore. 8T2/8T3— 1" throw, 5⁄8" × 7⁄8" solid stainless steel
Door thickness
Fits 1 3⁄4" doors (standard)
7T2/7T3: fits doors
from 1 3⁄8" to 2 1/8"
8T2/8T3: fits doors
from 1 3⁄8" to 3". Specify if other than 1 3/4"
Faceplate
brass or bronze base material
Strike
8TSTK — rectangular 1 1⁄8" × 2 3⁄4" (ANSI A156.36-2010)
Strike
8TS1 — curved lip 1 1⁄4" × 4 7⁄8" (ANSI A156.36-2010)
Strike
8TS4 — curved lip 1 1⁄8" × 2 3⁄4" (ANSI A156.36-2010)
Strike
8TS5 — high security rectangular 1 1⁄4" × 4 7⁄8" (ANSI A156.36-2010)
Trim
wrought brass or bronze cylinder rose or turn lever rose, 2 3⁄4" dia. to cover 2 1⁄8" bore. Machined brass or bronze cylinder ring

Downloads

Catalog

Available Model Numbers and Combinations

Model/SKU Attributes
8T 2 7 S STK611 CS D5 LL SH KD 2-3/8", Single Keyed Classroom, Bright Bronze, Included, Included, Included, Included,
8T 2 7 S S1626 SH ND 2-3/8", Single Keyed Classroom, ANSI deadbolt, Satin Chrome, Not Included, Not Included, Not Included, Included,
8T 3 7 KL S1626AM CS D5 LL NF 2-3/4", Non Keyed Turnknob, ANSI deadbolt, Satin Chrome (Antimicrobial), Included, Included, Included, Not Included,
8T 3 7 M S4690 NF SH ND 2-3/4", Double Keyed CS Standard, Lip deadbolt, Dark Bronze, Not Included, Not Included, Not Included, Included,
8T 2 7 S S1690 LL KD 2-3/8", Single Keyed Classroom, ANSI deadbolt, Dark Bronze, Not Included, Not Included, Included, Not Included,
8T 3 7 KL S1630AM LL NF ND 2-3/4", Non Keyed Turnknob, ANSI deadbolt, Not Included, Not Included, Included, Not Included,
8T 2 7 L S1630AM CS D5 ND 2-3/8", Single Keyed no Turnknob, ANSI deadbolt, Included, Included, Not Included, Not Included,
8T 2 7 S S1626AM D5 NF KD 2-3/8", Single Keyed Classroom, ANSI deadbolt, Satin Chrome (Antimicrobial), Not Included, Included, Not Included, Not Included,
8T 3 7 KL S1630AM CS LL NF SH 2-3/4", Non Keyed Turnknob, ANSI deadbolt, Included, Not Included, Included, Included,
8T 2 7 S S1606 CS LL NF SH 2-3/8", Single Keyed Classroom, ANSI deadbolt, Satin Brass, Included, Not Included, Included, Included,
8T 2 7 S S1619 CS D5 LL NF SH 2-3/8", Single Keyed Classroom, ANSI deadbolt, Satin Nickel, Included, Included, Included, Included,
8T 3 7 M S4626AM CS D5 LL KD ND 2-3/4", Double Keyed CS Standard, Lip deadbolt, Satin Chrome (Antimicrobial), Included, Included, Included, Not Included,
8T 2 7 S S1611 SH ND 2-3/8", Single Keyed Classroom, ANSI deadbolt, Bright Bronze, Not Included, Not Included, Not Included, Included,
8T 3 7 M S4606 CS SH ND 2-3/4", Double Keyed CS Standard, Lip deadbolt, Satin Brass, Included, Not Included, Not Included, Included,
8T 2 7 S S4626 CS NF 2-3/8", Single Keyed Classroom, Lip deadbolt, Satin Chrome, Included, Not Included, Not Included, Not Included,

View All Model Numbers and Options
