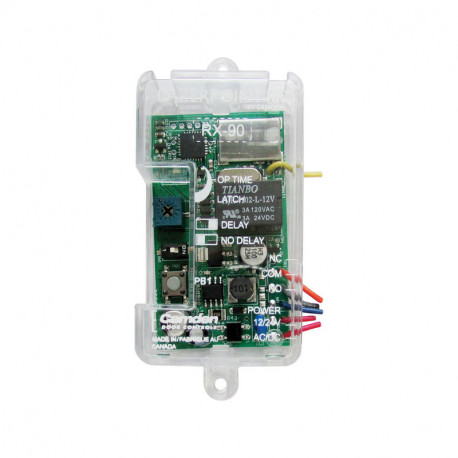

Details: Camden Door Control CM-RX Lazerpoint RF 915Mhz Wireless Door Control System - Receiver

Lazerpoint RF is a completely new wireless solution for automatic door operators. The system introduces the many advantages of 915MHz spread-spectrum wireless technology to the automatic door market and encompasses the widest range of transmitters, receivers, activation devices, and switch enclosures available today.

Features

• LAZERPOINT RF battery-powered wireless door activation devices are compatible with all automatic door operators.
• Ultra-compact receiver can be mounted in door operator cabinets.
• Advanced 915MHz spread spectrum (broadband) wireless communications for outstanding range and performance.
• 'Push and Learn' transmitter enrollment and signal strength indicator.
• Supports up to 40 Lazerpoint(tm) transmitters

Specifications

Wireless Frequency

905.25 / 915.25 / 925.25 MHz. Spread Spectrum

Receiver Capacity

40 CM-TX Series Transmitters

Codes

1 Million Unique (20 Bit) Codes

Power/Voltage

12/24 V, AC/DC

Status and Alarm Indicators

Relay status, signal strength, erase mode and pot position

Output CM-RX-90

(1) SPDT relay, 3 modes

Output CM-RX-91

(1) SPDT relay, 1 mode

Output CM-RX-92

(2) SPDT relays, 6 modes

Contact Rating

3 Amps , 30VDC

Current Draw

23mA - 43mA

Time Delay CM-RX-90,CM-RX-91

1-30 seconds

Time Delay CM-RX-92,1 D.O.R.

1-30 sec

Time Delay CM-RX-92,2 D.O.O.

1-15 sec

Time Delay CM-RX-92,2 D.O.R.

1-30 sec

Applications

• Public Buildings & Facilities
• Commercial & Industrial Buildings
• Government & Military Facilities
• Retail & Strip Malls
• Multifamily & Mixed-Use

Downloads

• CM-RX-90 V2 Manual_Eng-Rev3
• CM-RX-91 Manual_Eng-Rev3
• CM-RX-92 Manual_Eng-Rev3
• Spec Sheet
