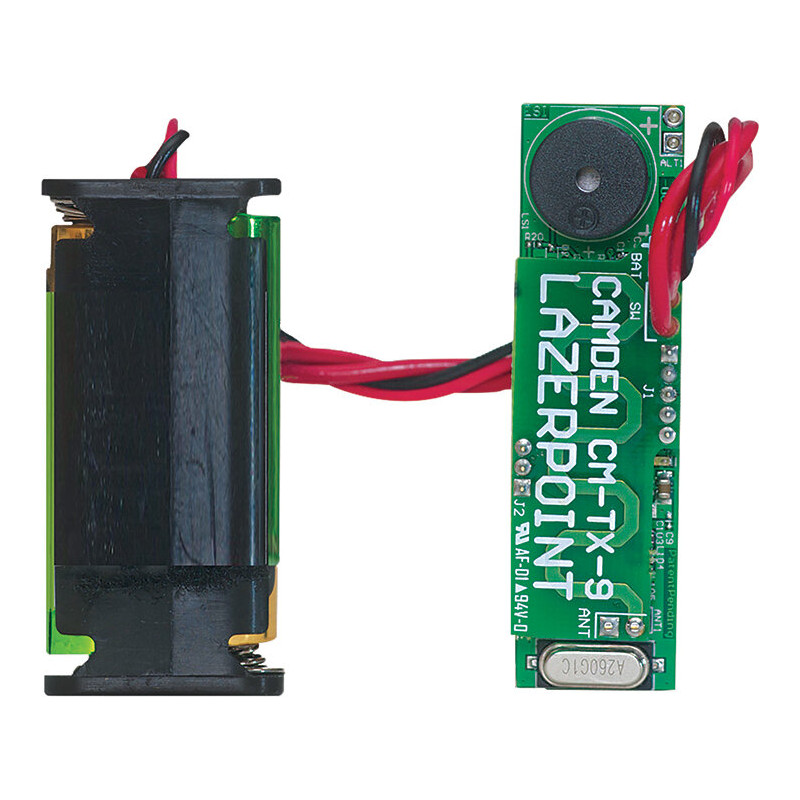

Details: Camden Door Control CM-TX-9 Lazerpoint RF 915Mhz Wireless Door Control System - Transmitter

Lazerpoint RF is a completely new wireless solution for automatic door operators. The system introduces the many advantages of 915MHz spread-spectrum wireless technology to the automatic door market and encompasses the widest range of transmitters, receivers, activation devices, and switch enclosures available today.

Features

• LAZERPOINT RF battery-powered wireless door activation devices are compatible with all automatic door operators.
• Advanced 915MHz spread spectrum (broadband) wireless communications for outstanding range and performance.
• Switch Transmitters Ultra-compact switch transmitter fits anywhere, including jamb box.
• Switch Transmitters Multi-year battery life using inexpensive 'AAA' alkaline batteries.

Specifications

Wireless Frequency

905.25 / 915.25 / 925.25 MHz. Spread Spectrum

Wireless Range

500ft (152m) open area

Codes

1 Million Unique (20 Bit) Codes

Power/Voltage CM-TX-9

(2) AAA alkaline batteries (supplied)Power/Voltage CM-TX-99

Battery Life CM-TX-9

500,000 cycles

Status and Alarm Indicators

Transmission confirmation, low battery, battery test and stuck switch

Current Draw

2 mA

Contact Rating

3 Amps 30VDC

Applications

• Public Buildings & Facilities
• Commercial & Industrial Buildings
• Government & Military Facilities
• Retail & Strip Malls
• Multifamily & Mixed-Use

Downloads

• Installation Manual
• Spec Sheet

Camden Door Controls Warranty
