Codelocks CL4000GD Electronic Push Button Medium Duty Lock for Glass Door, For Door Thickness-5/16" - 5/8", Finish-Brushed Steel
CL4000 GD BS

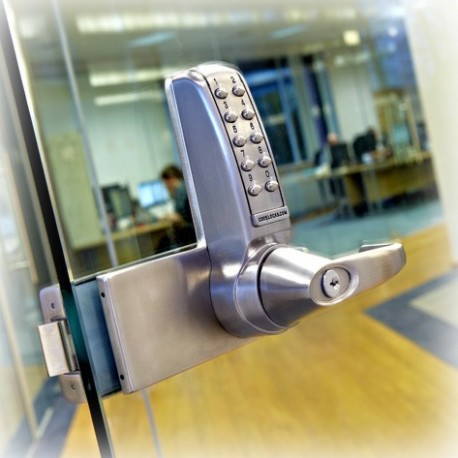

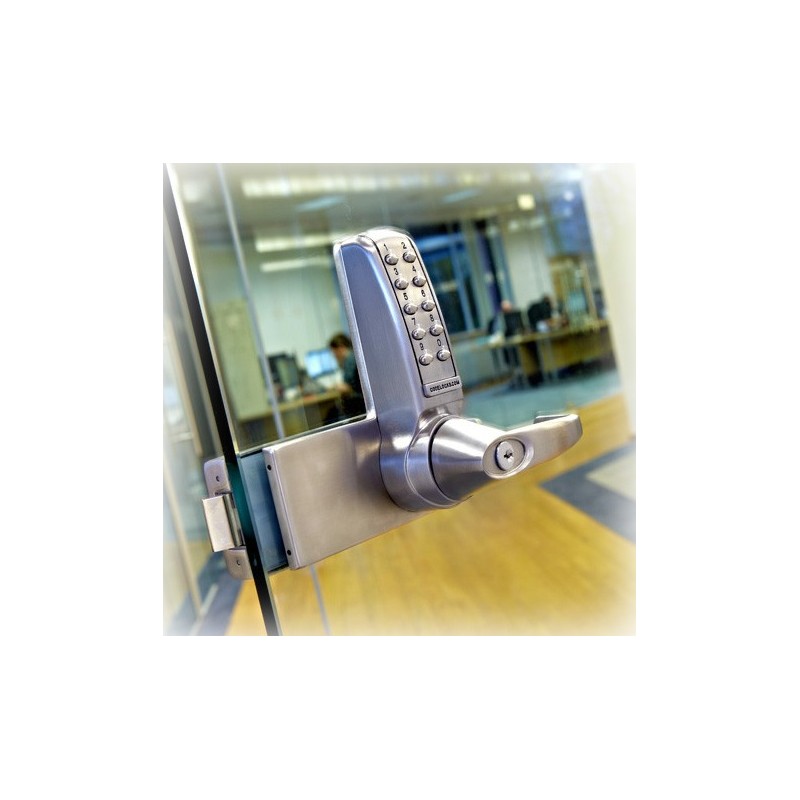

The CL4000GD is a medium duty electronic lock for glass doors that provides multi-functional access control. It is stylish and contemporary with full size levers and can be used as the primary lock on medical centers, schools, commercial and residential environments.
The outside lever turns freely without operating the latchbolt.
When a valid code is entered and the blue LED lights, the lever will retract the latchbolt. When the door closes the spring latch will automatically lock the door. The key will open the door for management functions. The key may be used to set the lock into Code Free mode so that anyone can open the door without using a code.
Code Free Mode can also be programmed at the keypad using the Master Code.
The lock can store up to 80 different User Codes. Codes may be 4, 5 or 6 digits long.
Programming is via the keypad, using the Master Code. The lock has fitted as standard two alarm release terminals.
As standard the CL4000GD is supplied with a flat strike plate for fitting to solid door frames. When fitting to a glass door with a glass side panel you will need to buy the patch strike box..
Item | Details |
---|---|
Batteries | 4x'N' Batteries |
Body material | Zinc alloy |
Door material | Models CL4010 and CL4020 for wooden doors - For other materials contact Technical Support. Model CL4000GD for glass doors |
Door thickness | 8mm -15mm (5/16" - 10⁄16") |
Non handed | Lever hand handle supplied as either righthand (RH) or left hand (LH) versions, inswing doors only |
Spindle type | 8mm (5/16") spring loaded spindle |
Cl4000Gd Installation Template |
Model/SKU | Attributes |
---|---|
CL4000GDLH | Left hand |
CL4000GDRH | Right hand |
