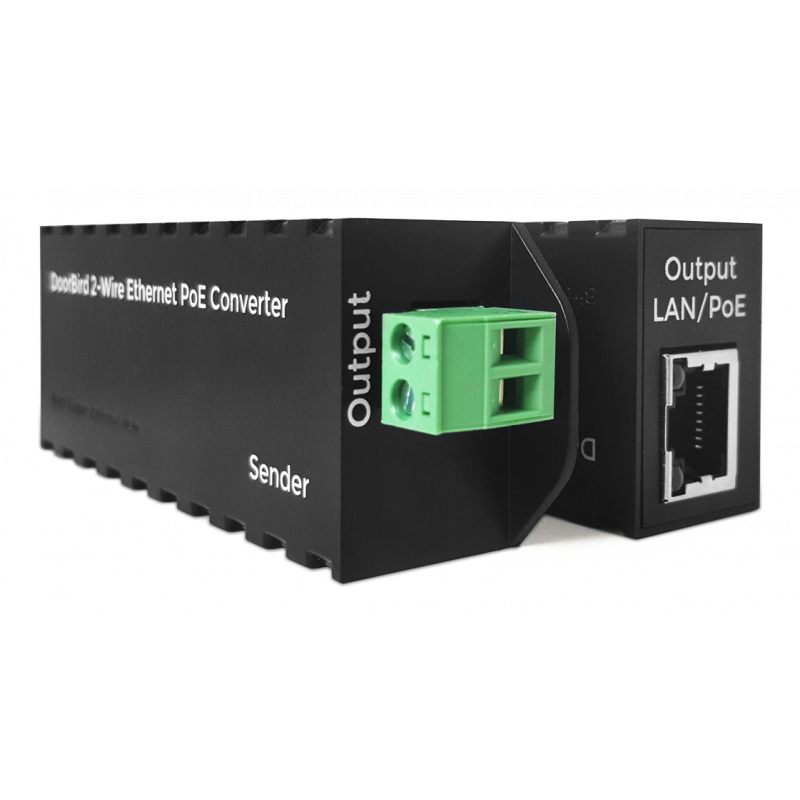

DoorBird A1071 2-Wire Ethernet PoE Converter

A1071

$426.10

Details: DoorBird A1071 2-Wire Ethernet PoE Converter

DOORBIRD 2-WIRE ETHERNET POE CONVERTER A1071

The DoorBird 2-Wire Ethernet PoE Converter is probably the world's smallest and most powerful converter. It allows you to transfer network data (Ethernet) and power (PoE) with a simple two-wire cable over long distances. For example; existing buildings with a simple two-wire bell wire can be equipped with network technology without having to retrofit any network cables.

THE FEATURES

  • Use of existing cabling
  • ∙ Only a two-wire cable required for both
  • data transmission and power supply (PoE)
  • ∙ Compact design, robust metal housing
  • ∙ Easy and fast installation

GENERAL

  • Dimensions 33 × 25 × 88 mm (H × W × D)
  • 1,30 × 0,98 × 3,46 in (H × W × D)
  • Power supply PoE-Switch or PoE-Injector
  • (IEEE 802.3 af/at), not included
  • Operating conditions -25 to 55°C / -13 to 131°F
  • Speed Up to 60 mbit/s at maximum
  • transmission range
  • Latency ~ 0.01 ms
  • Connectors 1x RJ45 jack (10/100 Base-T),
  • 2x screw terminals
  • PoE PoE 802.3 af/at Mode-A and PoE +,
  • up to 30 W
  • Data line pair 1/2 (+), 3/6 (-)
  • Range 80 meters / 262 feet with unshielded
  • two-wire cable
  • Scope of delivery
  • 1 × DoorBird 2-Wire Ethernet PoE
  • Converter Sender
  • 1 × DoorBird 2-Wire Ethernet PoE
  • Converter Receiver
  • 1 × DIN-Rail adapter
  • Required accessories
  • 2 × Network cable, IEEE 802.3 af/at PoE
  • Switch or PoE Injector, e.g. DoorBird
  • Gigabit PoE Injector, D-Link DGS-1008P
  • or TPLink TL-PoE150S
  • Compatible with all DoorBird IP Video
  • Door Stations.
  • Approvals CE, FCC, RoHS, IP50
  • Weather-proof No
  • Weight 140 g
  • EAN 4260423860360
