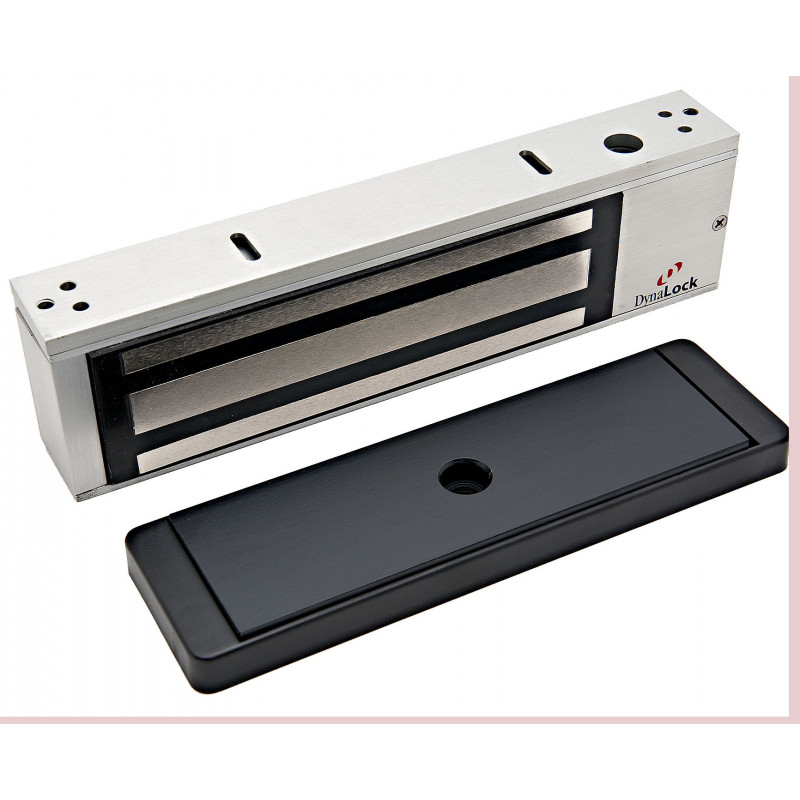

Details: DynaLock 2011-390 Single 1200 lb Holding Force Maglock, Finish-Satin Aluminum

Electromagnetic locks, surface mounted for outswing or inswing single or double doors. Size: 1-1/2"D × 2-3/4"H × 11"L Single or 22"L Double 1-1/2"D × 2-3/4"H × 10-1/2" L (2011-390 only) Multi-voltage field selectable 12/24 VAC/VDC Current Draw: 384 mA @ 12VDC Single / 768 mA Double 217 mA @ 24VDC Single / 434 mA Double Adjustable Relock Time Delay (Former TD Option) is standard on all models.

Downloads

Data Sheet

DynaLock Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
2011-390 LEDLED2LP2 US28	Not Included,
2011-390 VOP LEDLP2 US28
2011-390 DSM LP US10B	Not Included, Not Included,
2011-390 DSM VOPLED2 US13	Not Included,
2011-390 LEDLED2LP2 US3	Not Included,
2011-390 VOP LEDLP2 US3
2011-390 DSM LP US19	Not Included, Not Included,
2011-390 DSM VOPLED2 US10B	Not Included,
2011-390 LEDLED2LP2 US4	Not Included,
2011-390 VOP LEDLP2 US4
2011-390 DSM LP US26	Not Included, Not Included,
2011-390 DSM VOPLED2 US19	Not Included,
2011-390 LEDLED2LP2 US10	Not Included,
2011-390 VOP LEDLP2 US10
2011-390 DSM LPLP2 US28	Not Included, Not Included,

View All Model Numbers and Options
