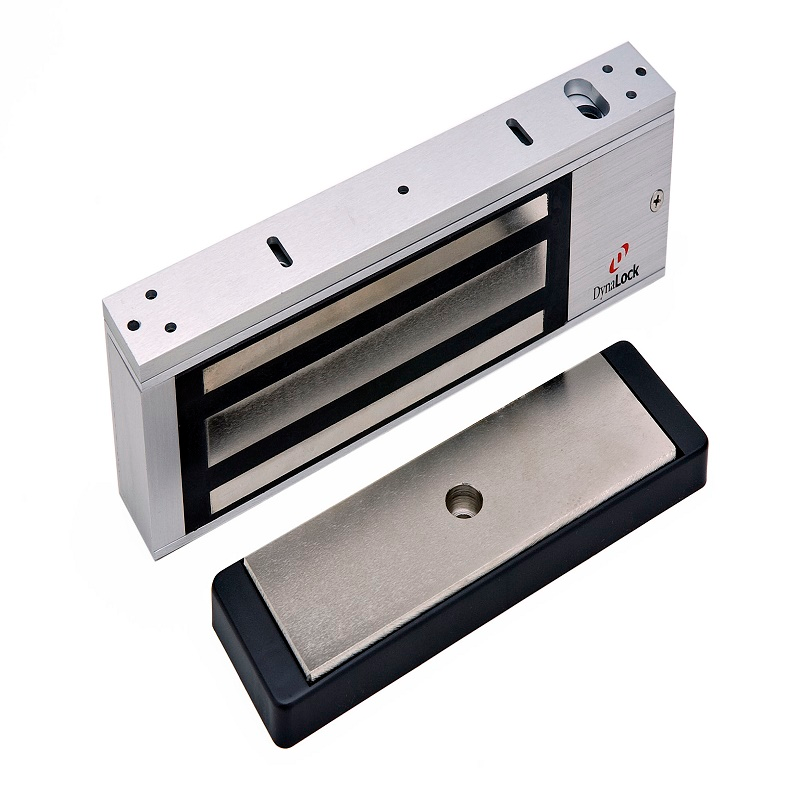

Details: DynaLock 2011TJ20 1200lb Electromagnetic Lock

Electromagnetic locks, surface mounted for outswing or inswing single or double doors. Size: 1-1/2"D × 2-3/4"H × 11"L Single or 22"L Double 1-1/2"D × 2-3/4"H × 10-1/2" L (2011-390 only) Multi-voltage field selectable 12/24 VAC/VDC Current Draw: 384 mA @ 12VDC Single / 768 mA Double 217 mA @ 24VDC Single / 434 mA Double Adjustable Relock Time Delay (Former TD Option) is standard on all models.

Downloads

Data Sheet

Available Model Numbers and Combinations

Model/SKU	Attributes
2011TJ20 VOP LP2 US4	Satin Brass
2011TJ20 HSM VOP US10B	Not Included, Dark Bronze
2011TJ20 VOP LP2 US10	Light Bronze
2011TJ20 DSM LED2 LP2 US3	Not Included, Bright Brass
2011TJ20 DSM HSM LED US19	Not Included, Not Included, Black Satin
2011TJ20 HSM VOP US19	Not Included, Black Satin
2011TJ20 VOP LP2 US13	Medium Bronze
2011TJ20 DSM LED2 LP2 US4	Not Included, Satin Brass
2011TJ20 DSM HSM LED US26	Not Included, Not Included, Bright Chrome
2011TJ20 VOP LP2 US10B	Dark Bronze
2011TJ20 HSM VOP US26	Not Included, Bright Chrome
2011TJ20 DSM LED2 LP2 US10	Not Included, Light Bronze
2011TJ20 HSM VOP LP US28	Low Power Coil 12V only .16 Amps(single lock), Satin Aluminum
2011TJ20 VOP LP2 US19	Black Satin
2011TJ20 DSM LED2 LP2 US13	Not Included, Medium Bronze

View All Model Numbers and Options
