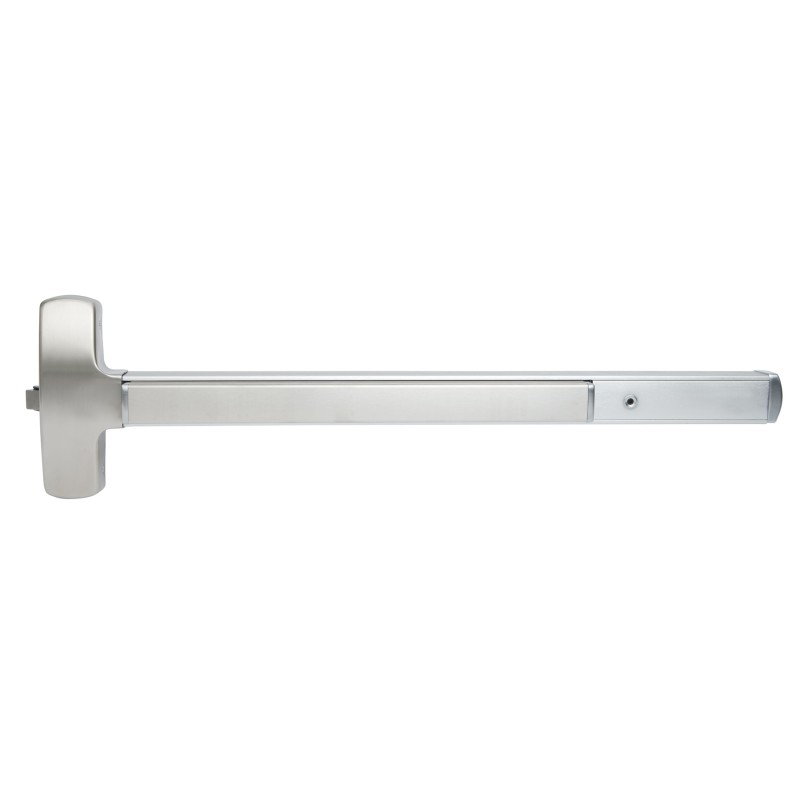

Details: Falcon 25 Series Concealed Vertical Rod Exit Device

The 24/25 Series heavy-duty architectural push pad exit devices provide quick, easy egress suitable for various applications. Offices, banks, assisted living facilities, retail stores and other commercial buildings have constant traffic, so the exit devices must be able to perform under continual use and abuse.

The 24/25 Series exit devices out-perform competitors and are offered at a reasonable price. The ANSI/BHMA Grade 1 certified exit devices feature a sleek, streamlined styling and smart solutions for any building design while assuring egress in case of an emergency.

Extruded aluminum construction delivers greater strength and impact resistance
Includes panic exit and fire exit hardware for single and double door applications
No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation
One trim input design provides maximum versatility and ability to use various trims
Stainless steel push pad cover provides a scratch-resistant pushing surface
Flush-end caps help prevent them from being destroyed or knocked off in abusive situations
Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors

The 24/25 Series offers common industry device types: a rim, surface vertical rod, concealed vertical rod and mortise vertical rod devices.
24 Series device types: Rim device, 24-R Series rim device, F-24-R Series rim fire device.
Surface vertical, 24-V vertical rod device, F-24-V vertical rod fire device.
Concealed vertical, 24-CWDC wood door concealed vertical rod device, F-24-CWDC wood door concealed vertical rod fire device.
25 Series device types: Rim device, 25-R Series rim device, F-25-R Series rim fire device.
Surface vertical, 25-V vertical rod device, F-25-V vertical rod fire device.
Concealed vertical, 25-C concealed vertical rod device, F-25-C concealed vertical rod fire device.
Mortise vertical, 25-M mortise device, F-25-M Series mortise fire device

Certifications: Certified ANSI A156.3-2008 Grade 1 standards. UL listed panic exit devices. UL listed A or B label fire rating

Downloads

Falcon Locks Warranty

Available Model Numbers and Combinations

Model/SKU	Attributes
ELRXCONFSE25C510L.US10	Satin Bronze, Hex Dogging, Not Included, Included, Not Included, Fail Secure
LDRXKORCONFSE25C510LBE.US4	Satin Brass, Less Dogging, Not Included, Included, Not Included, Fail Secure
CDELRXCONFSE25C513KNL.US4	Satin Brass, Knob Night Latch, Cylinder Dogging, Not Included, Included, Not Included, Fail Secure
LDELDMLMCONFSA25CEO.US3	Exit Only, Less Dogging, Not Included, Not Included, Fail Safe
LDDMLMKORCONFSE25C510LBE.US26D	Satin Chrome, Less Dogging, Not Included, Not Included, Fail Secure
LDAXELRXKORFSA25C510LNL.US32	Less Dogging, Included, Included, Not Included, Fail Safe
CDAXDMKORCONFSE25C510LBE.US28	Cylinder Dogging, Included, Not Included, Fail Secure
AXELRXLMCONFSA25C512TPBE.US3	Hex Dogging, Included, Included, Not Included, Fail Safe
LDAXRXLMKORCONFSE25C510LBE.US11	Aged Bronze, Less Dogging, Included, Included, Not Included, Fail Secure
CDAXELRXLMKORFSE25C513KNL.US4	Satin Brass, Knob Night Latch, Cylinder Dogging, Included, Included, Not Included, Fail Secure
ELRXCONFSE25C511L.US28	Hex Dogging, Not Included, Included, Not Included, Fail Secure
AXRXDMLMFSA25C718C.313AN	Duranodic Dark Bronze, Hex Dogging, Included, Included, Fail Safe
CDAXRXKORCONFSA25C513KBE.US26D	Satin Chrome, Knob Blank Escutcheon, Cylinder Dogging, Included, Included, Not Included, Fail Safe
LDELDMFSE25C512TPBE.US26D	Satin Chrome, Less Dogging, Not Included, Not Included, Fail Secure
CDELCONFSA25C513K.US26	Knob, Cylinder Dogging, Not Included, Not Included, Not Included, Fail Safe

View All Model Numbers and Options
