Reduced price! Falcon H2 Series Complete Locks

Falcon Locks

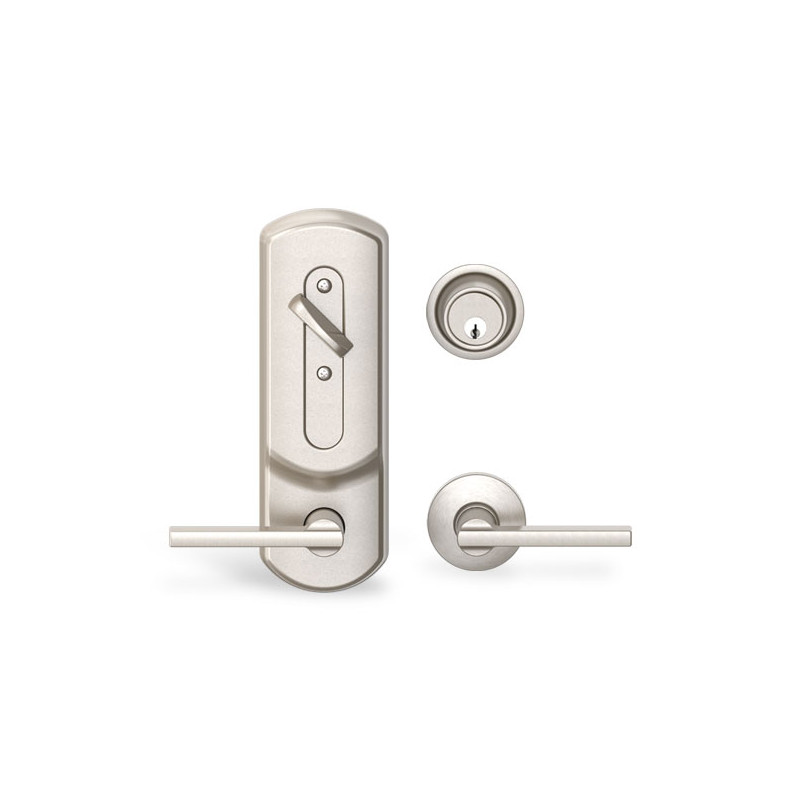

Falcon H2 Series Interconnected Lock

$403.00

? ?
?

Details: Falcon H2 Series Interconnected Lock

The H2 Series interconnected locks provide a single-motion egress and are ideal for multi-family, mixed-use and public restroom applications. The H2 Series features a single-motion egress (retracting both the latch and deadbolt simply by rotating the inside lever) to meet Life and Safety code requirements, while exceeding BHMA Grade 2 requirements for operational usage, security, cycle and finish.

Features

  • 5 lever styles and 5 finishes for suiting across other Falcon and Schlage products
  • Entrance single lock and the public restroom with occupancy indicator functions are available
  • Large inner plate that connects lock and deadbolt
  • Exterior has the appearance of a tubular lock and deadbolt
  • Supports 2-3?8" or 2-3?4" backsets
  • 1-3?4" - 2" door range standard; 1-3?8" available
  • Compatible with standard FSIC cores
  • 10-year limited warranty

Finishes

  • Bright Brass
  • Satin Brass
  • Satin Bronze
  • Oil Rubbed Bronze
  • Aged Bronze
  • Satin Nickel
  • Matte Black
  • Bright Chrome
  • Satin Stainless Steel

Designs

  • Lever styles include: Avalon, Dane, Flair, Latitude, Quantum

Specifications

Certifications
UL: listed 1-1/2 Hour B Label

Downloads

Falcon H2 Series

Falcon Lock Comparison

Features Application Options
T Series
Cylindrical
  • Grade 1 certified
  • Wide variety of functions and options
  • Can accept competitive standard cylinders SFIC and FSIC
  • Ideal for new construction and retrofit applications where Grade 1 security is needed
  • 15 commercial functions
  • 8 finishes
  • 7 lever designs
K Series
  • Grade 1 certified
  • Most common functions, lever styles and finishes
  • Affordable price
  • Where Grade 1 security and reliability are needed, but cost is a concern
  • 8 commercial functions
  • 2 finishes
  • 3 lever designs
X Series
  • Grade 1 certified
  • Corrosion resistant option
  • Compatible with competitive SFIC
  • Where a Grade 1 security lock is needed and corrosive marine conditions could be a concern
  • 10 commercial functions
  • 6 finishes
  • 3 knob designs
  • 2 rose options
B Series
  • Grade 2 certified
  • Perfect replacement for existing locks or new construction
  • Compatible with competitive SFIC
  • Where frequent use is expected and durability is needed, but Grade 1 security is not required
  • 10 commercial functions
  • 5 finishes
  • 2 lever designs
W Series
  • Grade 2 certified
  • Two rose diameter options to match most commerical door trim
  • Applications with nontraditional door trim where cost is a concern
  • 12 commercial lever functions
  • 8 commercial knob functions
  • 8 finishes
  • 7 lever/2 knob designs
  • 2 rose options
D100 Series
Deadbolt
  • Grade 1 certified for security
  • Supplemental protection against break-in
  • Compatible with competitive SFIC
  • Where supplemental Grade 1 security is required
  • 5 commercial functions
  • 5 finishes
D200 Series
  • Grade 2 certified for security
  • Supplemental protection against break-in
  • Compatible with competitive SFIC
  • Where supplemental, Grade 2 security is required
  • 8 commercial functions
  • 5 finishes
RU Series
Unit
  • Grade 1 certified
  • Old-fashioned style with modern strength, security and convenience
  • Compatible with competitive SFIC
  • Retrofitting older and historical buildings where Grade 1 security is required
  • 12 commercial functions
  • 2 finishes
  • 2 lever designs
MA Series
Mortise
  • Grade 1 certified
  • One of Falcon's toughest locks that is built to stand up to constant use without fail
  • Compatible with competitive SFIC
  • Where a tough-as-nails, reliable and durable Grade 1 security lock is required
  • Facilities where a large variety of applications are needed
  • 26 commerical functions
  • 9 finishes
  • 8 lever designs
  • 1 knob design
  • Rose (sectional) and escutcheon option
H2 Series
Interconnected
  • Grade 2 certified
  • Large inner plate that connects lock and deadbolt
  • Exterior has the appearance of a tubular lock and deadbolt
  • Where strength and security are required, but cost is a concern
  • Used in multi-family applications for one step egress
  • 2 commercial functions
  • 5 finishes
  • 5 lever design

Available Model Numbers and Combinations

Model/SKU Attributes
H2101PQ330-04110-094643E LATMK Aged Bronze, Master Keyed
H2101PQ330-04110-092643E DANKA Aged Bronze, Keyed Alike
H2101PQ330-04110-001626 DAN Satin Chrome,
H2101PQ330-04110-001605 DANKA Bright Brass, Keyed Alike
H2101P6Q330-04110-094619 DANKD Satin Nickel, Keyed Different
H2101P6Q330-04110-092625 LATKA Bright Chrome, Keyed Alike
H2101P6Q330-04110-095626LONKA Satin Chrome, Keyed Alike
H2101P6Q330-04110-001626BRK Satin Chrome,
H2101P6Q330-04110-001643EBRW Aged Bronze,
H2101P6Q330-04110-026605BRK Bright Brass,
H2101P6Q330-04110-026625 FLA Bright Chrome,
H2101P6Q330-04110-027619 QUAKD Satin Nickel, Keyed Different
H2171PQ330-04110-092605 DAN Bright Brass,
H2171PQ330-04110-092605BRKKA Bright Brass, Keyed Alike
H2171PQ330-04110-092622 LATMK Matte Black, Master Keyed

View All Model Numbers and Options
