Falcon W-Series Grade 2 Cylindrical Lock w/ Lever & Small Rose 2-9/16" (65mm)
The W Series medium-duty cylindrical locks feature two lever styles, two knob styles and two rose diameters to match most commercial door trims. Ideal for low-traffic doorways, the W Series can be used in retail, multi-family, mix-use, government and industrial applications.
The W Series is UL listed and meets ANSI/BHMA A156.2 Series 4000 Grade 2 standards for durability. Interchangeable cores remove for quick and convenient re-keying and are compatible with cores built by other manufacturers. The W Series delivers a quality product at a value price point and is versatile enough to fit various applications.Â
Features | Application | Options | ||
---|---|---|---|---|
| Cylindrical |
|
|
|
|
|
|
| |
|
|
|
| |
|
|
|
| |
|
|
|
| |
| Deadbolt |
|
|
|
|
|
|
| |
| Unit |
|
|
|
| Mortise |
|
|
|
| Interconnected |
|
|
|
ANSI number/grade | Function | Falcon | Arrow | Corbin/Russwin | Dorma | Hager | Yale |
---|---|---|---|---|---|---|---|
F75 | Passage | W101 | RL/RLX/MLX01 | CL3810 | CL710 | 2510 | 4601LN |
F111 | Comm/exit | W161 | RL03 | -- | CL725 | -- | 4628LN |
F77 | Patio | W201 | -- | CL3840 | CL730 | -- | -- |
F76 | Privacy | W301 | RL/RLX/MLX72 | CL3820 | CL740 | 2540 | 4602LN |
F109 | Entry/office | W511 | -- | CL3851 | CL753 | 2550 | 4607LN |
F84 | Classroom | W561 | RL/RLX/MLX17 | CL3855 | CL770 | 2570 | 4607LN |
F86 | Storeroom | W581 | RL/RLX/MLX12 | CL3851 | CL780 | 2850 | 4605LN |
Apartment entry | W711 | -- | -- | -- | -- | -- | |
Single dummy | W12 | RL/RLX/MLX08 | CL3850 | CL701 | 2517 | 4655LN | |
F82 | Entry | W501 | RL/RLX/MLX11 | CL3861 | CL750 | 2553 | 4604LN |
Falcon | Arrow | Yale | Corbin/Russwin | Dorma | Hager |
---|---|---|---|---|---|

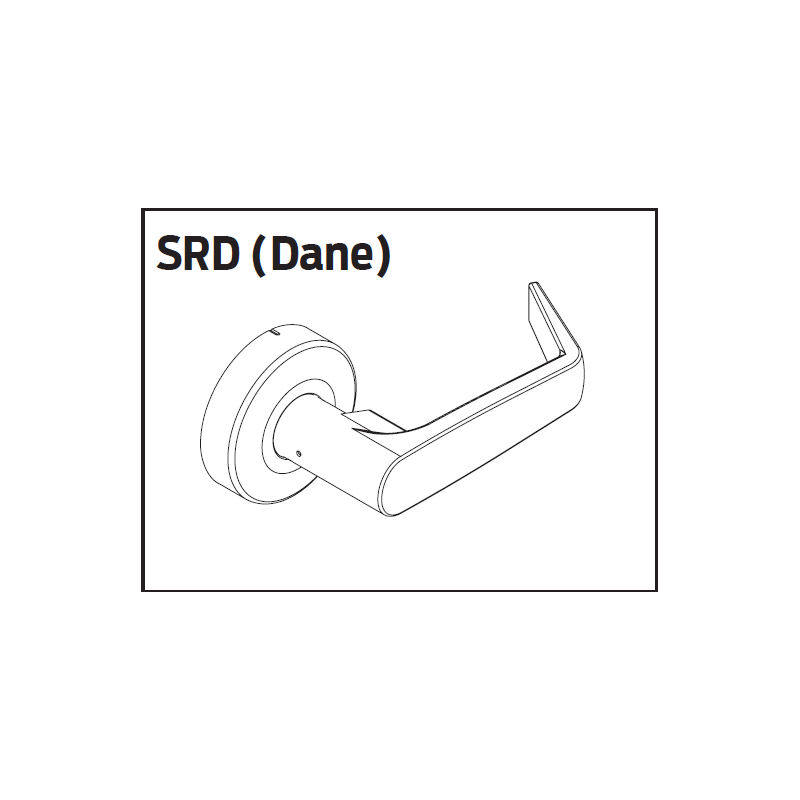

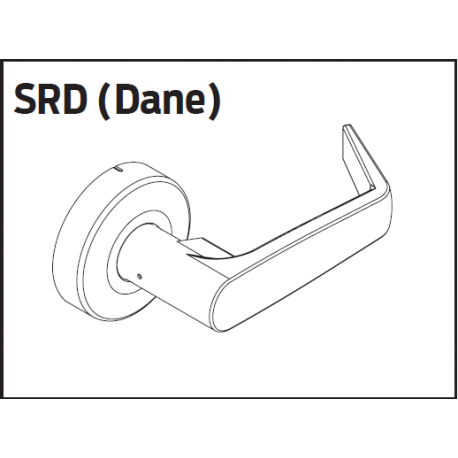

Dane | Sierra | Augusta | NZD | LR | Withnell |
Quantum | Broadway | Pacific Beach | PZD | LC | Archer |
Avalon | -- | Monroe | -- | LG | -- |
Broadwalk | -- | -- | -- | -- | -- |
Broadway | -- | -- | -- | -- | -- |
Latitude | -- | -- | -- | -- | -- |
Longitude | -- | -- | -- | -- | -- |
Hana | Ball | -- | -- | -- | -- |
Elite | -- | Carolina | -- | -- | -- |
All effort has been made to make this information comprehensive. Since no two products are exactly alike, this data represents those products which are similar. This information was obtained from trade services and is not guaranteed nor meant to represent any product as equal to any other product.
Model/SKU | Attributes |
---|---|
W581625P30-20430-149 SRBOQ330-154 | Bright Chrome, Storeroom (Single Cylinder), 5 Pinned Cylinder, Springlatch 101, 301 Square corner, 1" x 2 1/4" (Backset 2 3/4"), Square Corner, T-Strike 1 1/8" x 2 3/4", Boardwalk, 6 Pin Falcon keyway cylinder |
W1262230-20930-148 SRQQ330-154 | Single Dummy, Matte Black, Springlatch 101, 301 Square corner, 1 1/8" x 2 1/4" (Backset 2 3/8"), ANSI, 1 1/4" x 4 7/8" standard, Quantum, 6 Pin Falcon keyway cylinder |
W581626P630-19430-149 SRBOQ330-154 | Satin Chrome, Storeroom (Single Cylinder), 6 Pinned Cylinder, Restoring Deadlatch 201, 511, 571, 711 Square corner, 1 1/8" x 2 1/4" (Backset 2 3/4"), Square Corner, T-Strike 1 1/8" x 2 3/4", Boardwalk, 6 Pin Falcon keyway cylinder |
W511622P30-20230-150MK SRQQ330-154 | Matte Black, Entry/Office (Single Cylinder), 5 Pinned Cylinder, Deadlatch 161, 501, 511,561, 581 Radius corner, 1" x 2 1/4" (Backset 2 3/8"), Radius Corner, Full Lip Strike 1 5/8" x 2 1/4", Master Keyed, Quantum, 6 Pin Falcon keyway cylinder |
W10162230-20630-151 SRQQ330-152 | Passage, Matte Black, Springlatch 101, 301 Square corner, 1 1/8" x 2 1/4" (Backset 2 3/4"), Square Corner, Full Lip Strike 1 5/8" x 2 1/4", Quantum, 6 Pin Schlage C keyway cylinder |
W511626P630-19930-151 SRAQ330-152 | Satin Chrome, Entry/Office (Single Cylinder), 6 Pinned Cylinder, Restoring Deadlatch 201, 511, 571, 711 Radius corner, 1" x 2 1/4" (Backset 2 3/8"), Square Corner, Full Lip Strike 1 5/8" x 2 1/4", Avalon, 6 Pin Schlage C keyway cylinder |
W511613P630-19630-151MK SRQQ330-154 | Oil Rubbed Bronze, Entry/Office (Single Cylinder), 6 Pinned Cylinder, Deadlatch 161, 501, 511,561, 581 Radius corner, 1" x 2 1/4" (Backset 2 3/4"), Square Corner, Full Lip Strike 1 5/8" x 2 1/4", Master Keyed, Quantum, 6 Pin Falcon keyway cylinder |
W511613P630-19430-149 SRBRQ330-154 | Oil Rubbed Bronze, Entry/Office (Single Cylinder), 6 Pinned Cylinder, Restoring Deadlatch 201, 511, 571, 711 Square corner, 1 1/8" x 2 1/4" (Backset 2 3/4"), Square Corner, T-Strike 1 1/8" x 2 3/4", Broadway, 6 Pin Falcon keyway cylinder |
W581619P630-20930-149KA SRBOQ330-152 | Satin Nickel, Storeroom (Single Cylinder), 6 Pinned Cylinder, Springlatch 101, 301 Square corner, 1 1/8" x 2 1/4" (Backset 2 3/8"), Square Corner, T-Strike 1 1/8" x 2 3/4", Keyed Alike, Boardwalk, 6 Pin Schlage C keyway cylinder |
W511626P630-20630-148KA SRLOQ330-152 | Satin Chrome, Entry/Office (Single Cylinder), 6 Pinned Cylinder, Springlatch 101, 301 Square corner, 1 1/8" x 2 1/4" (Backset 2 3/4"), ANSI, 1 1/4" x 4 7/8" standard, Keyed Alike, Longitude, 6 Pin Schlage C keyway cylinder |
W511613P630-19430-149MK SRLAQ330-152 | Oil Rubbed Bronze, Entry/Office (Single Cylinder), 6 Pinned Cylinder, Restoring Deadlatch 201, 511, 571, 711 Square corner, 1 1/8" x 2 1/4" (Backset 2 3/4"), Square Corner, T-Strike 1 1/8" x 2 3/4", Master Keyed, Latitude, 6 Pin Schlage C keyway cylinder |
W511626P630-20630-149 SRBRQ330-154 | Satin Chrome, Entry/Office (Single Cylinder), 6 Pinned Cylinder, Springlatch 101, 301 Square corner, 1 1/8" x 2 1/4" (Backset 2 3/4"), Square Corner, T-Strike 1 1/8" x 2 3/4", Broadway, 6 Pin Falcon keyway cylinder |
W511613P630-19430-150KA SRAQ330-154 | Oil Rubbed Bronze, Entry/Office (Single Cylinder), 6 Pinned Cylinder, Restoring Deadlatch 201, 511, 571, 711 Square corner, 1 1/8" x 2 1/4" (Backset 2 3/4"), Radius Corner, Full Lip Strike 1 5/8" x 2 1/4", Keyed Alike, Avalon, 6 Pin Falcon keyway cylinder |
W581625P30-19730-150KD SRLAQ330-154 | Bright Chrome, Storeroom (Single Cylinder), 5 Pinned Cylinder, Deadlatch 161, 501, 511,561, 581 Square corner, 1 1/8" x 2 1/4" (Backset 2 3/4"), Radius Corner, Full Lip Strike 1 5/8" x 2 1/4", Keyed Different, Latitude, 6 Pin Falcon keyway cylinder |
W581625P30-19730-151KD SRLAQ330-152 | Bright Chrome, Storeroom (Single Cylinder), 5 Pinned Cylinder, Deadlatch 161, 501, 511,561, 581 Square corner, 1 1/8" x 2 1/4" (Backset 2 3/4"), Square Corner, Full Lip Strike 1 5/8" x 2 1/4", Keyed Different, Latitude, 6 Pin Schlage C keyway cylinder |
