Nostalgic WarehouseFunction Guide

Nostalgic Warehouse Item Functions

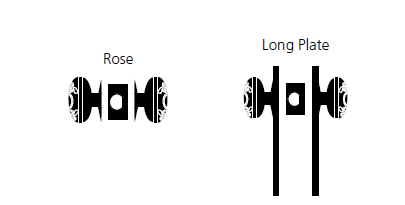

Passage (PSG):

Active latch with no locking mechanism. Knob is always unlocked. Specify "KH" to order a non-functioning keyhole. Standard door range: 1-3/8" to 1-3/4" thick.

Nostalgic Warehouse Passage Function

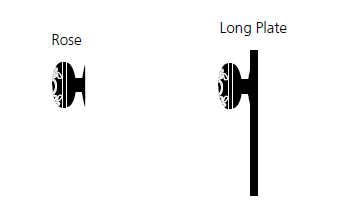

Single Dummy (SD):

Non-functioning door set with no latch, and no locking mechanism, used on one side of door (typically used with roller catch, flush bolts or surface bolts). Surface mounted. Specify "KH" to order a non-functioning keyhole.

Nostalgic Warehouse Single Dummy Function

Nostalgic Warehouse Handleset Exterior Single Cylinder Function

Handleset Exterior Single Cylinder:

Active thumb-operated latch and grip with single cylinder deadbolt. Requiers interior sin handleset. Standard door range: 1-3/4" to 2-1/4" thick.



Nostalgic Warehouse Handleset Interior Single Cylinder Function

Handleset Interior Single Cylinder:

Active latch (passage) with a single cylinder deadbolt. Requires exterior single cylinder to make a complete handleset. Standard door range: 1-3/4" to 2-1/4" thick.

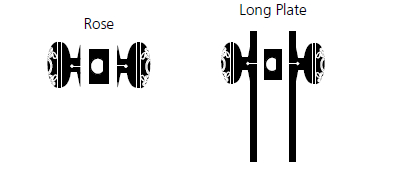

Privacy (PRV):

Active latch with locking mechanism. Privacy pin provides locking through rose or long plate. Can be opened from outside with small tool. Standard door range: 1-3/8" to 1-3/4" thick.

Nostalgic Warehouse Privacy Function

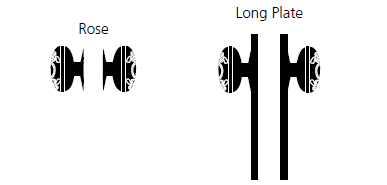

Double Dummy (DD):

Two non-functioning door sets (with no latch) are used on both sides of a door, or on side-by-side or French doors (Typically used with roller catch, flush bolts or surface bolts). Surface mounted or thru-bolted. Specify "KH" to order a non-functioning keyhole.

Nostalgic Warehouse Double Dummy Function

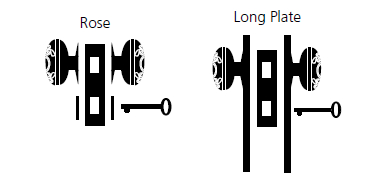

Interior Mortise (IM):

Active latch with skeleton key locking mechanism. Requires special mortise door preparation for mortise case. Standard door range: 1-3/8" to 1-3/4" thick.

Nostalgic Warehouse Interior Mortise Function

Single Cylinder Deadbolt:

Nostalgic Warehouse Single Cylinder Deadbolt Function

Manually operated bolt for entry door with keyed cylinder on the exterior and thumbturn on the interior. Standard door range: 1-3/4" to 2-1/4" thick.



Double Cylinder Deadbolt:

Nostalgic Warehouse Double Cylinder Deadbolt Function

Manually operated bolt for entry door with keyed cylinder on both the exterior and interior. Standard door range: 1-3/4" to 2-1/4" thick.
