List of Model/SKU Numbers for the Baldwin Hardware Estate 5020 Colonial Knob w/ 5048 Rose, Pre-Configured
Here is a list of the Model/SKU Numbers and their corresponding attribute combinations associated with the Model.
| Model #/SKU | Option Combination | MSRP | Price | |
|---|---|---|---|---|
| 5020.031.PASS |
Function:Passage, Finish:Non-lacquered Brass |
$236.00 | ||
| 5020.031.PRIV |
Function:Privacy, Finish:Non-lacquered Brass |
$236.00 | ||
| 5020.031.FD |
Function:Full Dummy, Finish:Non-lacquered Brass |
$194.40 | ||
| 5020.031.IDM |
Function:Half Dummy, Finish:Non-lacquered Brass |
$97.60 | ||
| 5020.102.PASS |
Function:Passage |
$236.00 | ||
| 5020.102.PRIV |
Function:Privacy |
$236.00 | ||
| 5020.102.FD |
Function:Full Dummy |
$194.40 | ||
| 5020.102.IDM |
Function:Half Dummy |
$97.60 | ||
| 5020.112.PASS |
Function:Passage, Finish:Venetian Bronze |
$236.00 | ||
| 5020.112.PRIV |
Function:Privacy, Finish:Venetian Bronze |
$236.00 | ||
| 5020.112.FD |
Finish:Venetian Bronze, Function:Full Dummy |
$194.40 | ||
| 5020.112.IDM |
Finish:Venetian Bronze, Function:Half Dummy |
$97.60 | ||
| 5020.260.PASS |
Function:Passage |
$236.00 | ||
| 5020.260.PRIV |
Function:Privacy |
$236.00 | ||
| 5020.260.FD |
Function:Full Dummy |
$194.40 | ||
| 5020.260.IDM |
Function:Half Dummy |
$97.60 | ||
| 5020.003.PASS |
Function:Passage |
$236.00 | ||
| 5020.003.PRIV |
Function:Privacy |
$236.00 | ||
| 5020.003.FD |
Function:Full Dummy |
$194.40 | ||
| 5020.003.IDM |
Function:Half Dummy |
$97.60 | ||
| 5020.055.PASS |
Function:Passage |
$236.00 | ||
| 5020.055.PRIV |
Function:Privacy |
$236.00 | ||
| 5020.055.FD |
Function:Full Dummy |
$194.40 | ||
| 5020.055.IDM |
Function:Half Dummy |
$97.60 |
Features
- Solid forged brass
- Finished and polished by hand
- Premium 28° Estate Latch
- Concealed Screws
- The anti-friction nylon insert provides quiet closing and reduces strike plate scratches
- Working parts are precisely machined for maximum strength
- Lifetime Finishes create a surface highly resistant to the effects of weather and normal wear and tear
- Lever-strength latches are built with heavy-duty springs to offset the solidity of Baldwin levers
- Lifetime Limited Warranty
Specifications
- Door Preparation
- 2-1/8" cross bore. 1" edge bore for latch
- Door Thickness
- 1-3/8" to 2" standard. Thick door optional for up to 2-1/2"
- ADA
- N/A
- UL
- 20-minute certified UL option available
- Front & Latch
- Square Corner 2-3/8" and 2-3/4" as optional
- Strike
- Full Lip standard and T-Strike as optional
- Latch Bolt
- ½" passage/privacy/entry function bolt
- Handing
- Handing not required
- ANSI/BHMA
- Tested to exceed ANSI/BHMA Grade 2 security
- Handing
- Reversible
- Rose Diameter
- 2⅝"
- Material
- Solid Forged Brass
- Concealed Screws
- Yes
- Projection
- 2.177"
- Knob Diameter
- 2.125"
- Door Thickness
- 1⅜" to 1¾"
- Cross Bore
- 2⅛"
- Backset
- 2⅜"
Helpful Downloads
Baldwin Craftsmanship
Baldwin has been hand-crafting highly functional and elegant pieces since 1946, and shows no signs of slowing down. They know how to get down brass tacks, in fact, they pioneered the forging of solid brass door hardware, securing their position as innovators in the industry. When you buy from Baldwin, you can trust you are receiving superior products made with care and conscience.

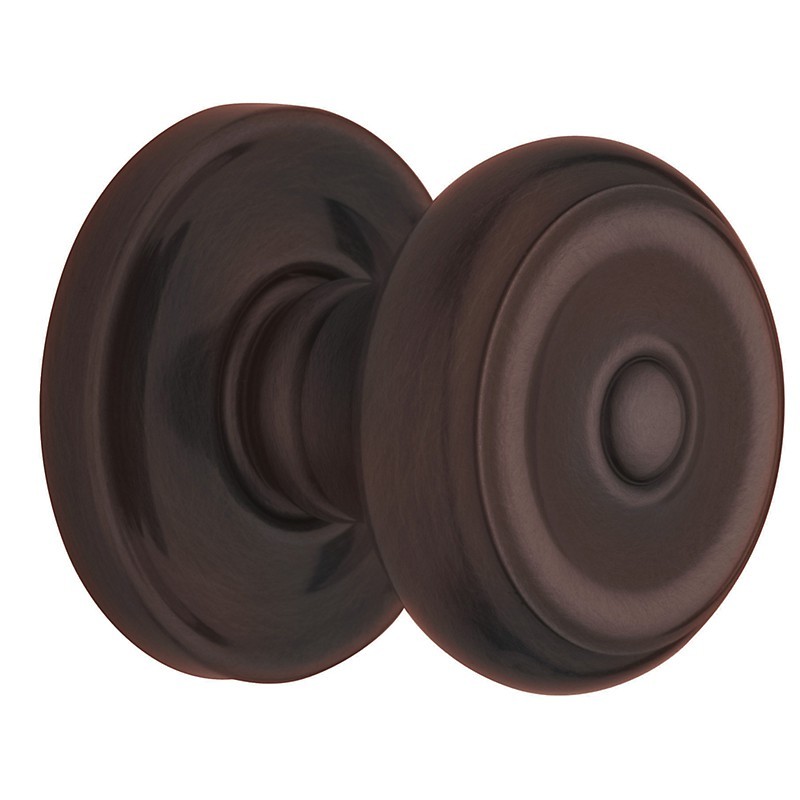

The Baldwin Hardware Estate Series 5020/5210 Colonial Style Round Solid Forged Brass Door Knob Set brings luxury home with a style and design to fit any homeowner's dream. Baldwin is the king of flexibility, offering numerous possibilities for customization in both style and function. Whether looking for a Contemporary, Traditional, Rustic, or Couture style of home, you can be sure that the Baldwin Hardware Estate Series 5020/5210 Colonial Style Round Solid Forged Brass Door Knob Set will be the best first and last impression you can give your guests.
