List of Model/SKU Numbers for the Cal-Royal CR441 Series Grade 1 ADA Barrier Free Adjustable Door Closer With Full Cover
Here is a list of the Model/SKU Numbers and their corresponding attribute combinations associated with the Model.
| Model #/SKU | Option Combination | MSRP | Price | |
|---|---|---|---|---|
| CR441 ALUM |
Delayed Action:Not Included, Finish:Aluminum, Back Check:Included |
$173.81 | ||
| CR441 ALUM32D / 15 |
Delayed Action:Not Included, Finish:Aluminum, Back Check:Included, Stainless Cover:Included |
$245.16 | ||
| CR441 DURO |
Finish:Duranodic, Delayed Action:Not Included, Back Check:Included |
$173.81 | ||
| CR441 DURO32D / 15 |
Finish:Duranodic, Delayed Action:Not Included, Back Check:Included, Stainless Cover:Included |
$245.16 | ||
| CR441 GOLD |
Finish:Gold, Delayed Action:Not Included, Back Check:Included |
$173.81 | ||
| CR441 GOLD32D / 15 |
Finish:Gold, Delayed Action:Not Included, Back Check:Included, Stainless Cover:Included |
$245.16 | ||
| CR441 L1 |
Finish:Flat Black, Delayed Action:Not Included, Back Check:Included |
$199.89 | ||
| CR441 L132D / 15 |
Finish:Flat Black, Delayed Action:Not Included, Back Check:Included, Stainless Cover:Included |
$271.25 | ||
| CR441 US4 |
Finish:Satin Brass, Delayed Action:Not Included, Back Check:Included |
$253.58 | ||
| CR441 US432D / 15 |
Finish:Satin Brass, Delayed Action:Not Included, Back Check:Included, Stainless Cover:Included |
$324.93 | ||
| CR441 US3 |
Finish:Bright Brass, Delayed Action:Not Included, Back Check:Included |
$253.58 | ||
| CR441 US332D / 15 |
Finish:Bright Brass, Delayed Action:Not Included, Back Check:Included, Stainless Cover:Included |
$324.93 | ||
| CR441 US26 |
Finish:Bright Chrome, Delayed Action:Not Included, Back Check:Included |
$253.58 | ||
| CR441 US2632D / 15 |
Finish:Bright Chrome, Delayed Action:Not Included, Back Check:Included, Stainless Cover:Included |
$324.93 | ||
| CR441 US26D |
Finish:Satin Chrome, Delayed Action:Not Included, Back Check:Included |
$253.58 | ||
| CR441 US26D32D / 15 |
Finish:Satin Chrome, Delayed Action:Not Included, Back Check:Included, Stainless Cover:Included |
$324.93 | ||
| CR441 US10B |
Delayed Action:Not Included, Finish:Oil Rubbed Bronze, Back Check:Included |
$253.58 | ||
| CR441 US10B32D / 15 |
Delayed Action:Not Included, Finish:Oil Rubbed Bronze, Back Check:Included, Stainless Cover:Included |
$324.93 | ||
| CR441 US5 |
Delayed Action:Not Included, Finish:Antique Brass, Back Check:Included |
$253.58 | ||
| CR441 US532D / 15 |
Delayed Action:Not Included, Finish:Antique Brass, Back Check:Included, Stainless Cover:Included |
$324.93 | ||
| CR441 US15 |
Finish:Satin Nickel, Delayed Action:Not Included, Back Check:Included |
$253.58 | ||
| CR441 US1532D / 15 |
Finish:Satin Nickel, Delayed Action:Not Included, Back Check:Included, Stainless Cover:Included |
$324.93 | ||
| CR441 US10 |
Finish:Satin Bronze, Delayed Action:Not Included, Back Check:Included |
$253.58 | ||
| CR441 US1032D / 15 |
Finish:Satin Bronze, Delayed Action:Not Included, Back Check:Included, Stainless Cover:Included |
$324.93 | ||
| CR441DA ALUM |
Delayed Action:Included, Finish:Aluminum, Back Check:Not Included |
$181.79 | ||
| CR441DA ALUM32D / 15 |
Delayed Action:Included, Finish:Aluminum, Back Check:Not Included, Stainless Cover:Included |
$253.14 | ||
| CR441DA DURO |
Finish:Duranodic, Delayed Action:Included, Back Check:Not Included |
$181.79 | ||
| CR441DA DURO32D / 15 |
Finish:Duranodic, Delayed Action:Included, Back Check:Not Included, Stainless Cover:Included |
$253.14 | ||
| CR441DA GOLD |
Finish:Gold, Delayed Action:Included, Back Check:Not Included |
$181.79 | ||
| CR441DA GOLD32D / 15 |
Finish:Gold, Delayed Action:Included, Back Check:Not Included, Stainless Cover:Included |
$253.14 | ||
| CR441DA L1 |
Finish:Flat Black, Delayed Action:Included, Back Check:Not Included |
$209.06 | ||
| CR441DA L132D / 15 |
Finish:Flat Black, Delayed Action:Included, Back Check:Not Included, Stainless Cover:Included |
$280.41 | ||
| CR441DA US4 |
Finish:Satin Brass, Delayed Action:Included, Back Check:Not Included |
$261.56 | ||
| CR441DA US432D / 15 |
Finish:Satin Brass, Delayed Action:Included, Back Check:Not Included, Stainless Cover:Included |
$332.91 | ||
| CR441DA US3 |
Finish:Bright Brass, Delayed Action:Included, Back Check:Not Included |
$261.56 | ||
| CR441DA US332D / 15 |
Finish:Bright Brass, Delayed Action:Included, Back Check:Not Included, Stainless Cover:Included |
$332.91 | ||
| CR441DA US26 |
Finish:Bright Chrome, Delayed Action:Included, Back Check:Not Included |
$261.56 | ||
| CR441DA US2632D / 15 |
Finish:Bright Chrome, Delayed Action:Included, Back Check:Not Included, Stainless Cover:Included |
$332.91 | ||
| CR441DA US26D |
Finish:Satin Chrome, Delayed Action:Included, Back Check:Not Included |
$261.56 | ||
| CR441DA US26D32D / 15 |
Finish:Satin Chrome, Delayed Action:Included, Back Check:Not Included, Stainless Cover:Included |
$332.91 | ||
| CR441DA US10B |
Delayed Action:Included, Finish:Oil Rubbed Bronze, Back Check:Not Included |
$261.56 | ||
| CR441DA US10B32D / 15 |
Delayed Action:Included, Finish:Oil Rubbed Bronze, Back Check:Not Included, Stainless Cover:Included |
$332.91 | ||
| CR441DA US5 |
Delayed Action:Included, Finish:Antique Brass, Back Check:Not Included |
$261.56 | ||
| CR441DA US532D / 15 |
Delayed Action:Included, Finish:Antique Brass, Back Check:Not Included, Stainless Cover:Included |
$332.91 | ||
| CR441DA US15 |
Finish:Satin Nickel, Delayed Action:Included, Back Check:Not Included |
$261.56 | ||
| CR441DA US1532D / 15 |
Finish:Satin Nickel, Delayed Action:Included, Back Check:Not Included, Stainless Cover:Included |
$332.91 | ||
| CR441DA US10 |
Finish:Satin Bronze, Delayed Action:Included, Back Check:Not Included |
$261.56 | ||
| CR441DA US1032D / 15 |
Finish:Satin Bronze, Delayed Action:Included, Back Check:Not Included, Stainless Cover:Included |
$332.91 | ||
| CR441DABC ALUM |
Delayed Action:Included, Finish:Aluminum, Back Check:Included |
$186.08 | ||
| CR441DABC ALUM32D / 15 |
Delayed Action:Included, Finish:Aluminum, Back Check:Included, Stainless Cover:Included |
$257.44 | ||
| CR441DABC DURO |
Finish:Duranodic, Delayed Action:Included, Back Check:Included |
$186.08 | ||
| CR441DABC DURO32D / 15 |
Finish:Duranodic, Delayed Action:Included, Back Check:Included, Stainless Cover:Included |
$257.44 | ||
| CR441DABC GOLD |
Finish:Gold, Delayed Action:Included, Back Check:Included |
$186.08 | ||
| CR441DABC GOLD32D / 15 |
Finish:Gold, Delayed Action:Included, Back Check:Included, Stainless Cover:Included |
$257.44 | ||
| CR441DABC L1 |
Finish:Flat Black, Delayed Action:Included, Back Check:Included |
$203.27 | ||
| CR441DABC L132D / 15 |
Finish:Flat Black, Delayed Action:Included, Back Check:Included, Stainless Cover:Included |
$274.62 | ||
| CR441DABC US4 |
Finish:Satin Brass, Delayed Action:Included, Back Check:Included |
$265.85 | ||
| CR441DABC US432D / 15 |
Finish:Satin Brass, Delayed Action:Included, Back Check:Included, Stainless Cover:Included |
$337.21 | ||
| CR441DABC US3 |
Finish:Bright Brass, Delayed Action:Included, Back Check:Included |
$265.85 | ||
| CR441DABC US332D / 15 |
Finish:Bright Brass, Delayed Action:Included, Back Check:Included, Stainless Cover:Included |
$337.21 | ||
| CR441DABC US26 |
Finish:Bright Chrome, Delayed Action:Included, Back Check:Included |
$265.85 | ||
| CR441DABC US2632D / 15 |
Finish:Bright Chrome, Delayed Action:Included, Back Check:Included, Stainless Cover:Included |
$337.21 | ||
| CR441DABC US26D |
Finish:Satin Chrome, Delayed Action:Included, Back Check:Included |
$265.85 | ||
| CR441DABC US26D32D / 15 |
Finish:Satin Chrome, Delayed Action:Included, Back Check:Included, Stainless Cover:Included |
$337.21 | ||
| CR441DABC US10B |
Delayed Action:Included, Finish:Oil Rubbed Bronze, Back Check:Included |
$265.85 | ||
| CR441DABC US10B32D / 15 |
Delayed Action:Included, Finish:Oil Rubbed Bronze, Back Check:Included, Stainless Cover:Included |
$337.21 | ||
| CR441DABC US5 |
Delayed Action:Included, Finish:Antique Brass, Back Check:Included |
$265.85 | ||
| CR441DABC US532D / 15 |
Delayed Action:Included, Finish:Antique Brass, Back Check:Included, Stainless Cover:Included |
$337.21 | ||
| CR441DABC US15 |
Finish:Satin Nickel, Delayed Action:Included, Back Check:Included |
$265.85 | ||
| CR441DABC US1532D / 15 |
Finish:Satin Nickel, Delayed Action:Included, Back Check:Included, Stainless Cover:Included |
$337.21 | ||
| CR441DABC US10 |
Finish:Satin Bronze, Delayed Action:Included, Back Check:Included |
$265.85 | ||
| CR441DABC US1032D / 15 |
Finish:Satin Bronze, Delayed Action:Included, Back Check:Included, Stainless Cover:Included |
$337.21 |
- Cal-Royal's Finest Hydraulic Door Closer Series Meeting The Highest Industry Standards, Grade 1
- Heavy-Duty Double Lever Arm With Extra Smooth Action Full Feature Multi-Size Commercial Door Closer For Use In Office Buildings, Shopping Centers and other Commercial Buildings
- Standard Back-Check Function
- Full Plastic Cover Is Standard Feature. (Metal Optional)
- Optional Plated Metal Decorative Covers
- Optional Adjustable Delayed Action Barrier Free For Handicapped Or Elderly
- Full Cover Multi-size
- Full Feature Closer
- ANSI 156.4 Grade 1
- UL Listed, Conforms to Standards UL10C and UBC7-2-1997
- BHMA Certified Lifetime Warranty

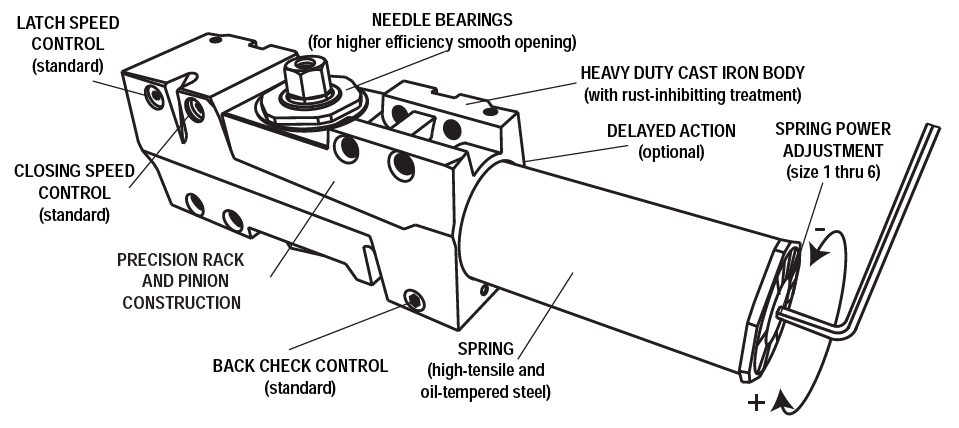

Features
- Universal application. Non-handed for standard, top-jamb or parallel arm installation
- Non-sized, 1 thru 6. FACTORY PRESET SIZE 3 meets ADA
- Hydraulic door closer with standard adjustable back-check function
- Adjustable closing and latching speed by two separate regulating valves
- Optional adjustable delayed action (DA) Preset at the factory for approximately 20 seconds, between 70° and 0°. Delay time easily adjusted up to 1 minute
- Self tapping screws and closer gauge for easy adjustment is standard feature
- Standard full plastic cover
| Exterior (and Vestibule) Door Width | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24" | 30" | 36" | 42" | 48" | ||||||||||
| CR441 Series |
|<— | Size 3 | —>| | |||||||||||
| |<— | Size 4 | —>| | ||||||||||||
| |<— | Size 5 | —>| | ||||||||||||
| |<— | Size 6 | —>| | ||||||||||||
| Minimum door Width | ||||||||||||||
| Interior Door Width | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24" | 34" | 38" | 48" | 54" | 60" | ||||||||||||
| CRR441 Series |
|<— | Size 2 | —>| | ||||||||||||||
| |<— | Size 3 | —>| | |||||||||||||||
| |<— | Size 4 | —>| | |||||||||||||||
| |<— | Size 5 | —>| | |||||||||||||||
| |<— | Size 6 | —>| | |||||||||||||||
| Minimum door Width | Adjustable 1 thru 6 | ||||||||||||||||
