List of Model/SKU Numbers for the HES Faceplates for the 5000 / 5200 Series Electric Strikes

HES Faceplates for the 5000 / 5200 Series Electric Strikes

Here is a list of the Model/SKU Numbers and their corresponding attribute combinations associated with the Model.

Model #/SKU Option Combination MSRP Price
501-630 Size:501: 4-7/8" x 1-1/4", Finish:Satin Stainless Steel
$22.00 $13.20
501-BLK Size:501: 4-7/8" x 1-1/4"
$46.00 $27.60
501-613 Size:501: 4-7/8" x 1-1/4"
$46.00 $27.60
501-605 Finish:Bright Brass, Size:501: 4-7/8" x 1-1/4"
$74.00 $44.40
501-606 Finish:Satin Brass, Size:501: 4-7/8" x 1-1/4"
$54.00 $32.40
501-612 Finish:Satin Bronze, Size:501: 4-7/8" x 1-1/4"
$54.00 $32.40
501-629 Finish:Bright Stainless Steel, Size:501: 4-7/8" x 1-1/4"
$74.00 $44.40
501A-630 Size:501A: 4-7/8" x 1-1/4" (Radius Corners), Finish:Satin Stainless Steel
$27.00 $16.20
501A-BLK Size:501A: 4-7/8" x 1-1/4" (Radius Corners)
$50.00 $30.00
501A-613 Size:501A: 4-7/8" x 1-1/4" (Radius Corners)
$50.00 $30.00
501A-605 Finish:Bright Brass, Size:501A: 4-7/8" x 1-1/4" (Radius Corners)
$80.00 $48.00
501A-606 Finish:Satin Brass, Size:501A: 4-7/8" x 1-1/4" (Radius Corners)
$57.00 $34.20
501A-612 Finish:Satin Bronze, Size:501A: 4-7/8" x 1-1/4" (Radius Corners)
$57.00 $34.20
501A-629 Finish:Bright Stainless Steel, Size:501A: 4-7/8" x 1-1/4" (Radius Corners)
$80.00 $48.00
502-630 Size:502: 7-15/16" x 1-7/16", Finish:Satin Stainless Steel
$47.00 $28.20
502-BLK Size:502: 7-15/16" x 1-7/16"
$66.00 $39.60
502-613 Size:502: 7-15/16" x 1-7/16"
$66.00 $39.60
502-605 Finish:Bright Brass, Size:502: 7-15/16" x 1-7/16"
$96.00 $57.60
502-606 Finish:Satin Brass, Size:502: 7-15/16" x 1-7/16"
$79.00 $47.40
502-612 Finish:Satin Bronze, Size:502: 7-15/16" x 1-7/16"
$79.00 $47.40
502-629 Finish:Bright Stainless Steel, Size:502: 7-15/16" x 1-7/16"
$96.00 $57.60
503-630 Size:503: 6-7/8" x 1-1/4", Finish:Satin Stainless Steel
$47.00 $28.20
503-BLK Size:503: 6-7/8" x 1-1/4"
$66.00 $39.60
503-613 Size:503: 6-7/8" x 1-1/4"
$66.00 $39.60
503-605 Finish:Bright Brass, Size:503: 6-7/8" x 1-1/4"
$96.00 $57.60
503-606 Finish:Satin Brass, Size:503: 6-7/8" x 1-1/4"
$79.00 $47.40
503-612 Finish:Satin Bronze, Size:503: 6-7/8" x 1-1/4"
$79.00 $47.40
503-629 Finish:Bright Stainless Steel, Size:503: 6-7/8" x 1-1/4"
$96.00 $57.60
504-630 Size:504: 10" x 1-3/8", Finish:Satin Stainless Steel
$47.00 $28.20
504-BLK Size:504: 10" x 1-3/8"
$66.00 $39.60
504-613 Size:504: 10" x 1-3/8"
$66.00 $39.60
504-605 Finish:Bright Brass, Size:504: 10" x 1-3/8"
$96.00 $57.60
504-606 Finish:Satin Brass, Size:504: 10" x 1-3/8"
$79.00 $47.40
504-612 Finish:Satin Bronze, Size:504: 10" x 1-3/8"
$79.00 $47.40
504-629 Finish:Bright Stainless Steel, Size:504: 10" x 1-3/8"
$96.00 $57.60

The 5000 series is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to 5/8" throw.

Specifications

  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • UL 294 (6th Edition) listed
  • ANSI/BHMA A156.31, Grade 1
  • Patent #5,934,720

Frame application

  • Metal
  • Wood

Electrical

  • .24 Amps at 12 VDC/VAC
  • .12 Amps at 24 VDC/VAC
  • DC continuous duty/AC intermittent duty only

Standard Features

  • Tamper resistant
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Endurance 500,000 cycles
  • Field selectable fail secure/ fail safe
  • Dual voltage 12 or 24 VDC/VAC
  • Non-handed
  • Internally mounted solenoid
  • Accommodates 1/2" - 5/8" latchbolt (5/8" with 1/8" door gap)
  • Strike body depth 1-1/16"
  • Plug-in connector
  • Trim enhancer included
  • Five year limited warranty

Optional Features

  • LBM - Latchbolt monitor

Finishes

  • 630 - Satin stainless steel
  • 605 - Bright brass
  • 606 - Satin brass
  • 612 - Satin bronze
  • 613 - Bronze toned
  • 629 - Bright stainless steel
  • BLK - Black , *Complete Pacs are only available in the 630 finish

Faceplates & Accessories

Faceplate Options

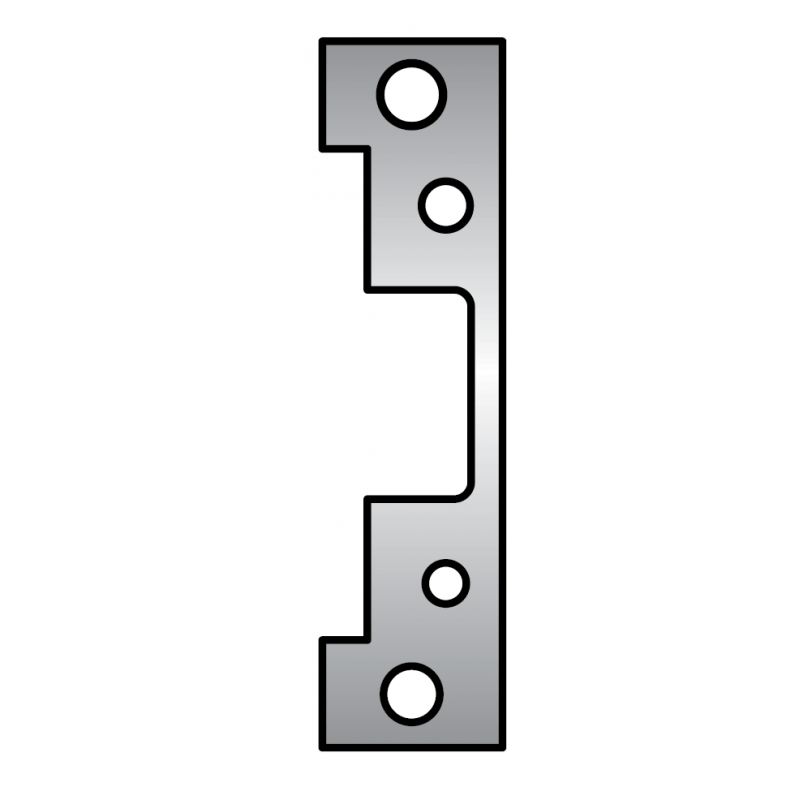

501 (4-7/8" × 1-1/4", square corners & flat faceplate)
For use with cylindrical locksets in ANSI metal jambs. ANSI/BHMA Numbers: #E09321, #E09322, #E09323
501A (4-7/8" × 1-1/4", radius corners & flat faceplate)
For use with cylindrical locksets. Includes universal mounting tabs. Aluminum frames. ANSI/BHMANumbers: #E09321, #E09322, #E09323
502 (7-15/16" × 1-7/16", radius corners & flat faceplate)
For use with cylindrical locksets. Includes universal mounting tabs. Aluminum frames. ANSI/BHMANumbers: #E09321, #E09322, #E09323
503 (6-7/8" × 1-1/4", radius corners & flat faceplate)
For use with cylindrical locksets. Includes universal mounting tabs. ANSI/BHMANumbers: #E09321, #E09322, #E09323
504 (10" × 1-3/8", radius corners & flat faceplate)
For use with cylindrical locksets. Four point mounting for wood installations. ANSI/BHMANumbers: #E09321, #E09322, #E09323
