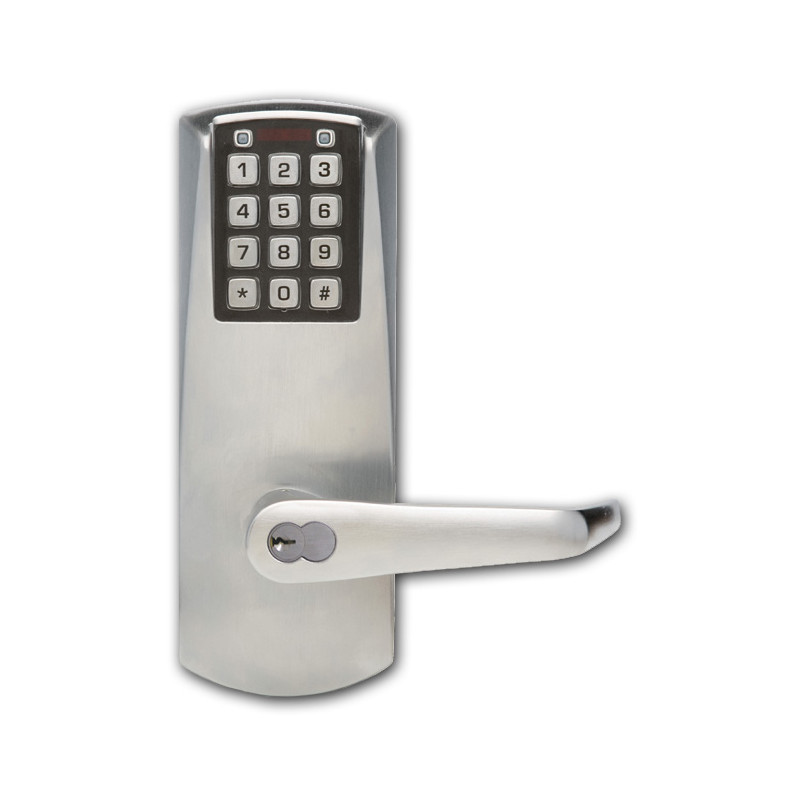

List of Model/SKU Numbers for the KABA PowerPlex P2000 Series Self-Powered Electronic Pushbutton Lock w/ Lever

Locking Device Options:

Cylindrical

Cylindrical latch with 3-hour UL/ULC fire rating

Exit Device

Compatible with most leading brands of Exit Devices; See list under "Exit Device Compatibility" (Exit Device and Mounting Hardware not included)

American Standard Mortise

With 1 1/4" (32 mm) face plate; with and without dead bolt, auto dead bolt also available

Master Level

performs all set-up and programming functions

Manager Level

administers common programming functions

Access User Level

entry granted with valid PIN

Service Level

codes for single event or single day access, programmable in advance

Maintenance Level

no access is granted, information can be uploaded/downloaded to/from the lock

User Parameters:

Code Length

Adjustable to accept 4 to 8 digits

Anti-tamper Lockout

Adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds

Relock time

Adjustable from 2 to 20 seconds

Lock Power:

Self Powering

Kaba's patented PowerStar technology supplies power for all electronic lock functions including programming users at the keypad without ever having to change batteries. Once the first digit of a valid code is entered to "wake up" the lock, the remainder of the code can be entered and access is granted. A full charge of the built-in super capacitors will last up to 10 weeks with no activity at the lock

Backset:

Cylindrical

2 3/4" (70 mm) backset, 2 3/8" (60 mm) backset

Mortise

2 3/4" (70 mm) backset

Exit Trim Model

Varies by exit device

Latches:

Cylindrical Models

1/2" (13 mm) throw latch,3/4" (19 mm) throw latch (optional)

Mortise Models

3/4" (19 mm) latch, 1" (25 mm) dead bolt (optional)

Strikes:

Cylindrical Models

Packaged standard with both ANSI A115.3 "T" Strike and A115.2 ASA Strike

Minimum Stile Required

5" (127 mm)

Key Override Options:

Key-In-Lever Cylinder

Kaba 1539 6-pin cylinder - Schlage "C" Keyway

Interchangeable Core

Small format - Best and equivalent (6 or 7-pin length); cylinder not included

Installation:

Ease of Installation

No wiring to or through the door - no risk of pinched wires

Door Preparation:

Cylindrical and Exit Trim

ASA 161 (Easily installs on door preparation with three additional through bore holes (wood or metal doors)

Mortise

ASA 86 door preparation with three additional through bore holes

Door Thickness:

Cylindrical Model

1 3/8" (35 mm) to 2 1/2" (64 mm); pre-assembled to accommodate doors 1 5/8" (41 mm) to 2" (50 mm)

Certification and Testing

Accessibility Standard

Americans with Disabilities Act (ADA)

Durability

ANSI/BHMA Grade 1 Certified (A156.25, A156.2, A156.13, A156.3)

Fire Rating

UL 10C Fire rated

Environmental

Indoor/Outdoor Approved; -31 F (-35 C) to + 151 F (66 C)

Available Finishes

Standard Finish

Satin Chrome 26D (626) housings and levers

Optional Finish

Satin Brass 04 (606) housings and levers or Dark Bronze 744 (10B) housings and levers
