List of Model/SKU Numbers for the NGP 111 Low Profile Saddle Threshold
Here is a list of the Model/SKU Numbers and their corresponding attribute combinations associated with the Model.
| Model #/SKU | Option Combination | MSRP | Price | |
|---|---|---|---|---|
| 111-1 |
Finish:Mill Aluminum, Length:1' |
$18.20 | ||
| 111-2 |
Finish:Mill Aluminum, Length:2' |
$36.40 | ||
| 111-3 |
Length:3', Finish:Mill Aluminum |
$54.60 | ||
| 111-4 |
Finish:Mill Aluminum, Length:4' |
$72.80 | ||
| 111-5 |
Finish:Mill Aluminum, Length:5' |
$91.00 | ||
| 111-6 |
Finish:Mill Aluminum, Length:6' |
$109.20 | ||
| 111-7 |
Finish:Mill Aluminum, Length:7' |
$127.40 | ||
| 111-8 |
Finish:Mill Aluminum, Length:8' |
$145.60 | ||
| 111-9 |
Finish:Mill Aluminum, Length:9' |
$163.80 | ||
| 111DKB-1 |
Finish:Dark Bronze, Length:1' |
$24.60 | ||
| 111DKB-2 |
Finish:Dark Bronze, Length:2' |
$49.20 | ||
| 111DKB-3 |
Length:3', Finish:Dark Bronze |
$73.80 | ||
| 111DKB-4 |
Finish:Dark Bronze, Length:4' |
$98.40 | ||
| 111DKB-5 |
Finish:Dark Bronze, Length:5' |
$123.00 | ||
| 111DKB-6 |
Finish:Dark Bronze, Length:6' |
$147.60 | ||
| 111DKB-7 |
Finish:Dark Bronze, Length:7' |
$172.20 | ||
| 111DKB-8 |
Finish:Dark Bronze, Length:8' |
$196.80 | ||
| 111DKB-9 |
Finish:Dark Bronze, Length:9' |
$221.40 |
Product Features
- Aluminum alloy 6063, T5 temper

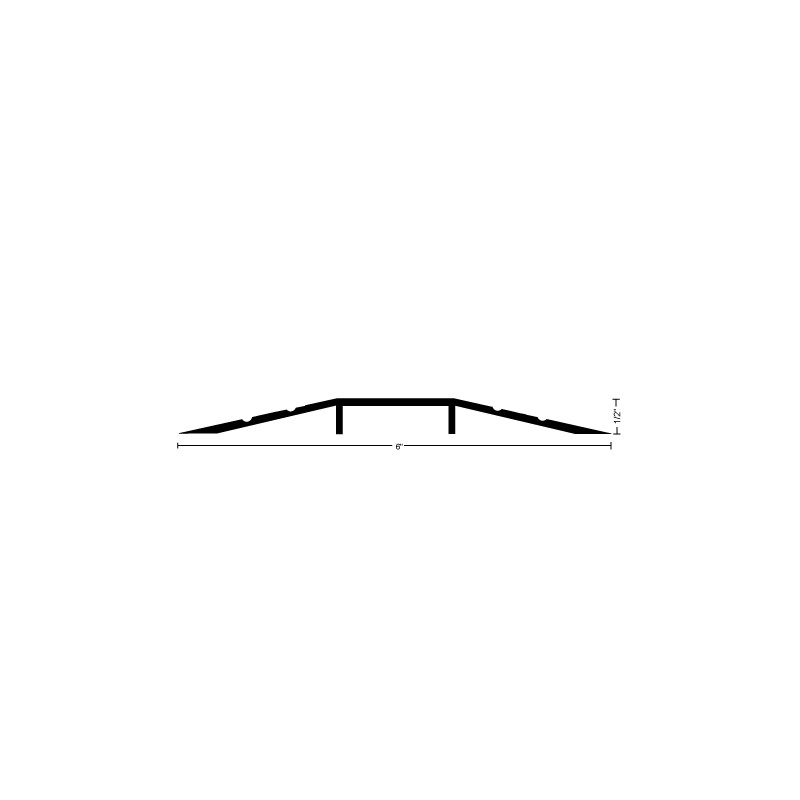

- 6" wide × 1/2" tall
- Smooth top with fluted ends
- Recommended to provide the best results where automatic door bottoms are used
- Typical wall thickness: .125"
- Weight: .93 lbs./ft.
- #10 × 1-1/2" FH zinc plated wood screws furnished
Certifications
- ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
- ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
