List of Model/SKU Numbers for the NGP RO50 ADA Compliant Aluminum Interlocking Ramp

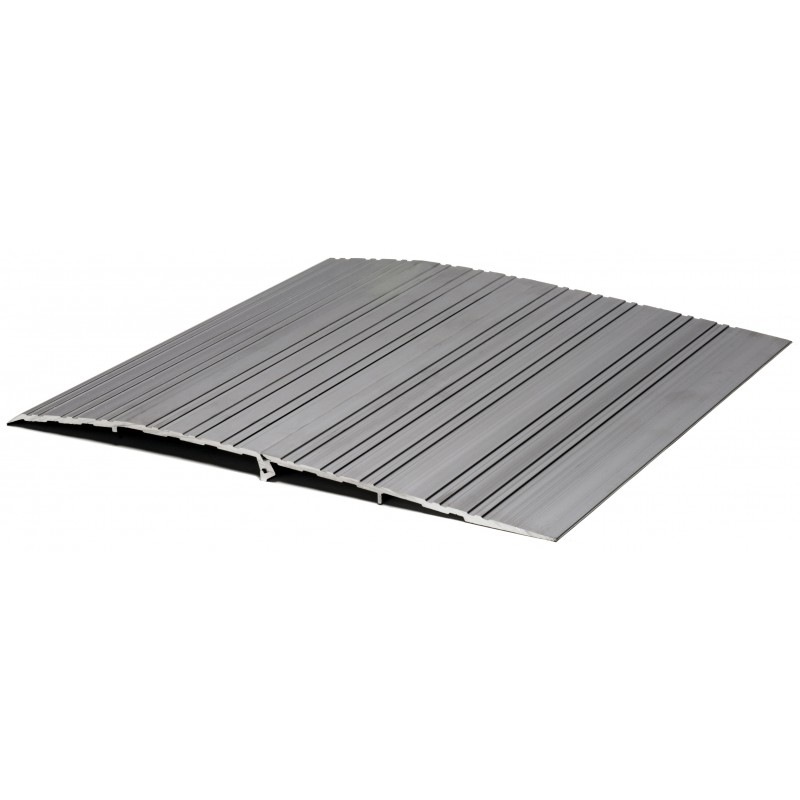

NGP RO50 ADA Compliant Aluminum Interlocking Ramp

Here is a list of the Model/SKU Numbers and their corresponding attribute combinations associated with the Model.

Model #/SKU Option Combination MSRP Price
RO50-12 Finish:Mill Aluminum
$77.00 $61.60
RO50-24 Finish:Mill Aluminum
$154.00 $123.20
RO50-36 Finish:Mill Aluminum
$231.00 $184.80
RO50-48 Finish:Mill Aluminum
$308.00 $246.40
RO50-60 Finish:Mill Aluminum
$385.00 $308.00
RO50-72 Finish:Mill Aluminum
$462.00 $369.60
RO50-84 Finish:Mill Aluminum
$539.00 $431.20
RO50-96 Finish:Mill Aluminum
$616.00 $492.80
RO50-108 Finish:Mill Aluminum
$693.00 $554.40
RO50DKB-12 Finish:Dark Bronze
$103.00 $82.40
RO50DKB-24 Finish:Dark Bronze
$206.00 $164.80
RO50DKB-36 Finish:Dark Bronze
$309.00 $247.20
RO50DKB-48 Finish:Dark Bronze
$412.00 $329.60
RO50DKB-60 Finish:Dark Bronze
$515.00 $412.00
RO50DKB-72 Finish:Dark Bronze
$618.00 $494.40
RO50DKB-84 Finish:Dark Bronze
$721.00 $576.80
RO50DKB-96 Finish:Dark Bronze
$824.00 $659.20
RO50DKB-108 Finish:Dark Bronze
$927.00 $741.60

Features

  • Aluminum alloy 6063, T5 temper
  • 18" wide × 1-1/2" tall
  • Typical wall thickness: .110"
  • Weight: 3.82 lbs./ft.
  • #10 FH zinc plated wood screws included
  • Mill finish

Options

  • Slip resistant SIA finish
  • Return closed ends provide an attractive finished appearance to ramps
  • Available in several lengths and can be trimmed to accommodate any size ramp assembly

Standards

  • ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
  • CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.

Downloads
