List of Model/SKU Numbers for the Pemko 29324 Brush Gasketing w/ 180 Degree Retainer & Concealed Fastener
Here is a list of the Model/SKU Numbers and their corresponding attribute combinations associated with the Model.
| Model #/SKU | Option Combination | MSRP | Price | |
|---|---|---|---|---|
| 29324CNB-12 |
|
$17.97 | ||
| 29324CNB-24 |
Length:24" |
$17.97 | ||
| 29324CNB-36 |
Length:36" |
$26.95 | ||
| 29324CNB-48 |
Length:48" |
$35.93 | ||
| 29324CNB-72 |
Length:72" |
$53.91 | ||
| 29324DNB-12 |
|
$26.08 | ||
| 29324DNB-24 |
Length:24" |
$26.08 | ||
| 29324DNB-36 |
Length:36" |
$39.12 | ||
| 29324DNB-48 |
Length:48" |
$52.16 | ||
| 29324DNB-72 |
Length:72" |
$78.25 | ||
| 29324CSB-12 |
|
$17.97 | ||
| 29324CSB-24 |
Length:24" |
$17.97 | ||
| 29324CSB-36 |
Length:36" |
$26.95 | ||
| 29324CSB-48 |
Length:48" |
$35.93 | ||
| 29324CSB-72 |
Length:72" |
$53.91 | ||
| 29324DSB-12 |
|
$26.08 | ||
| 29324DSB-24 |
Length:24" |
$26.08 | ||
| 29324DSB-36 |
Length:36" |
$39.12 | ||
| 29324DSB-48 |
Length:48" |
$52.16 | ||
| 29324DSB-72 |
Length:72" |
$78.25 | ||
| 2932410BE-NB-12 |
Finish:Satin Bronze Powder Coat |
$29.27 | ||
| 2932410BE-NB-24 |
Length:24", Finish:Satin Bronze Powder Coat |
$29.27 | ||
| 2932410BE-NB-36 |
Length:36", Finish:Satin Bronze Powder Coat |
$43.90 | ||
| 2932410BE-NB-48 |
Length:48", Finish:Satin Bronze Powder Coat |
$58.54 | ||
| 2932410BE-NB-72 |
Length:72", Finish:Satin Bronze Powder Coat |
$87.81 | ||
| 29324BSPNB-12 |
|
$29.27 | ||
| 29324BSPNB-24 |
Length:24" |
$29.27 | ||
| 29324BSPNB-36 |
Length:36" |
$43.90 | ||
| 29324BSPNB-48 |
Length:48" |
$58.54 | ||
| 29324BSPNB-72 |
Length:72" |
$87.81 | ||
| 29324WSPNB-12 |
Finish:White Suede Powder Coat |
$29.27 | ||
| 29324WSPNB-24 |
Length:24", Finish:White Suede Powder Coat |
$29.27 | ||
| 29324WSPNB-36 |
Length:36", Finish:White Suede Powder Coat |
$43.90 | ||
| 29324WSPNB-48 |
Length:48", Finish:White Suede Powder Coat |
$58.54 | ||
| 29324WSPNB-72 |
Length:72", Finish:White Suede Powder Coat |
$87.81 |
Astragal and Meeting Stile seals are used to seal the gap between a pair of doors. The snap covering conceals the fasteners and provides an attractive finished look.

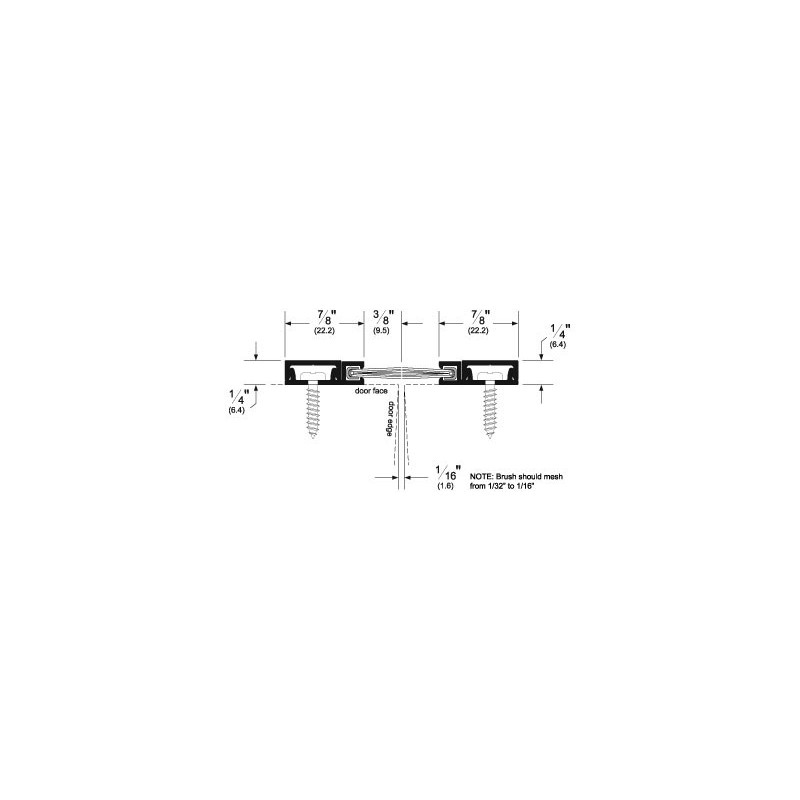

Brush Meeting Stile
- When installing pairs of fire doors care must be taken to maintain the requirements of NFPA 80.
- Also available with a soft brush (SB) insert.
- Note: brush should mesh from 1/32" to 1/16".
- This meeting stile is supplied with a Nylon Brush ("NB") insert - item number P516041 (available in gray or black).
Ratings
- Air Infiltration Tested
- BHMA Certified
- Smoke Tested - UL1784
- Fire Rated - UL10C - Positive Pressure
- Underwriters Laboratory 4L10
- GREENGUARD Gold Certified
Finishes
- 29324CNB: C - Clear Anodized Aluminum with Gray Nylon Brush insert
- 29324DNB: D - Dark Bronze Anodized Aluminum with Black Nylon Brush insert
