List of Model/SKU Numbers for the Securitron M680E EcoMag Series Sustainable 1200 lbs. Magnalock
Here is a list of the Model/SKU Numbers and their corresponding attribute combinations associated with the Model.
| Model #/SKU | Option Combination | MSRP | Price | |
|---|---|---|---|---|
| M680E-628 |
Finish:Satin Aluminum Clear |
$456.00 | ||
| M680EBD-600 |
|
$546.00 | ||
| M680EBD-605 |
Finish:Bright Brass |
$606.00 | ||
| M680EBD-606 |
Finish:Satin Brass |
$606.00 | ||
| M680EBD-612 |
Finish:Satin Bronze |
$606.00 | ||
| M680EBD-613E |
Finish:Dark Oxidized Satin Bronze |
$546.00 | ||
| M680EBD-628 |
Finish:Satin Aluminum Clear |
$486.00 | ||
| M680EBD-629 |
Finish:Bright Stainless Steel |
$606.00 | ||
| M680EBD-630 |
Finish:Satin Stainless Steel |
$606.00 | ||
| M680EBD-BSP |
Finish:Black Suede Powder |
$546.00 | ||
| M680EBDX-600 |
|
$651.00 | ||
| M680EBDX-605 |
Finish:Bright Brass |
$711.00 | ||
| M680EBDX-606 |
Finish:Satin Brass |
$711.00 | ||
| M680EBDX-612 |
Finish:Satin Bronze |
$711.00 | ||
| M680EBDX-613E |
Finish:Dark Oxidized Satin Bronze |
$651.00 | ||
| M680EBDX-628 |
Finish:Satin Aluminum Clear |
$591.00 | ||
| M680EBDX-629 |
Finish:Bright Stainless Steel |
$711.00 | ||
| M680EBDX-630 |
Finish:Satin Stainless Steel |
$711.00 | ||
| M680EBDX-BSP |
Finish:Black Suede Powder |
$651.00 |

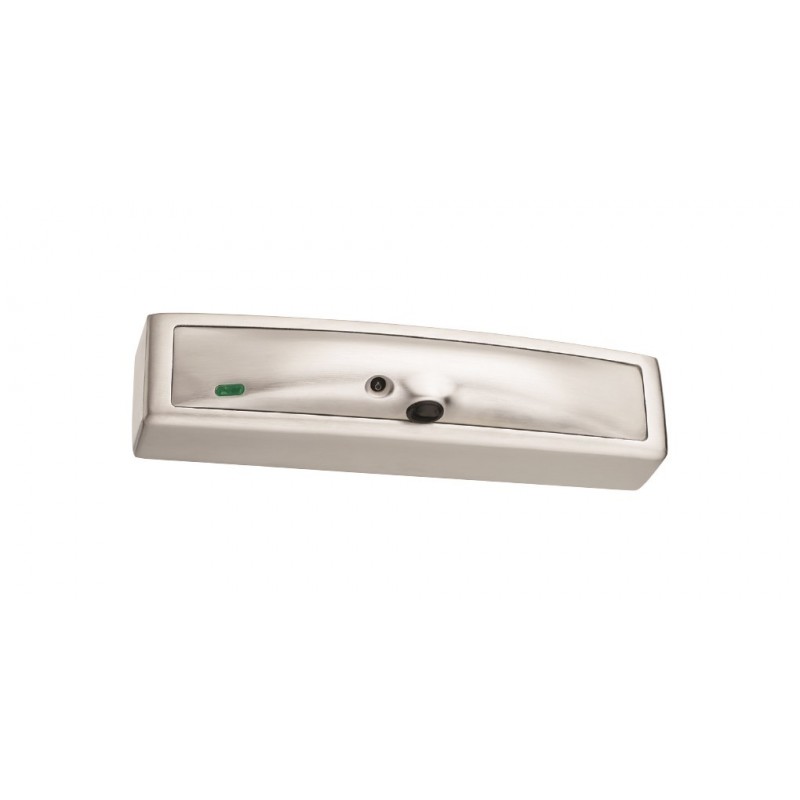

The Smart, Stylish and Secure Magnalock®
The M680 from Securitron® delivers unsurpassed intelligence, style and convenience.
- Intelligence
- A built-in, smart voltage sensing microprocessor controls Securitron's patented BondSTAT and door position status monitoring
- Style
- The aesthetics of the M680 are refined enough for the most discriminating designer openings
- Convenience
- An integrated camera option provides a unique perspective for discreet surveillance and clear facial views. Use the integrated motion sensor exit device alone, or with the camera for advanced access control
- Easy Installation
- The fastest, easiest, most secure installation of any bracket-mount maglock
M680BDX
The M680BDX with integrated request to exit (REX) provides optimum coverage for detecting an approaching person so the door unlocks for egress. The configurability of the passive infrared (PIR) beam allows the detection area to be tailored to your environment, for better accuracy.
M680BDCX
The M680BDCX combines strength and style with smarts at a whole new level. Optimal coverage comes from the integrated passive infrared (PIR) request to exit (REX) with analog CCTV camera that allows for video surveillance. Everyone will be happy except those with ill intent: Facility Manager: Secure and smart access control; Installer: Easy installation; Architect: Sleek and stylish.
Features
- Bracket mounting provides the easiest install for out-swing doors
- Innovative install templating for an efforlessly accurate alighnment between magnet and armature plate
- Sleek, low profile and refined lines for improved aesthetics
- LED visual locked status with configurable red/green color output
- BondSTAT lock bond sensor - Patented
- Integrated door position switch
- Autosensing dual voltage with microprocessor technology
- Adjustable automatic relock timer (0 to 30 seconds)
- Wire chamber anti-tamper switch
- Efficient, low power usage
- Size optimized for use with door closers
- MagnaCare® lifetime replacement, no fault warranty
Optional Features
Standard Features
- Adjustable passive infrared(PIR) Request to Exit
- Automatically cuts power to the M680 for egress
- Request to exit (REX) output
- Easily adjustable beam pattern
- Adjustable relock timer
Black & White Features
- Analog black/white CCTV camera
- 112 degree view angle
- 420 TV line resolution
- 48db S/N ratio
- 0.1 LUX minimum illumination day/ night operation
- Supports BNC connection
Color Features
- Analog color CCTV camera
- 112 degree view angle
- 520 TV line resolution
- 48db S/N ratio
- 1.5 LUX minimum illumination day/night operation
- Supports BNC connection
Features Continued
- UL1034Burglary-Resistant Listed
- UL10CListed
- CAN4-S104,CAN/ULC Listed
- UL294 Recognized Component
- ANSI/BHMA A156.23, Grade1; E18501-1000
- CSFM-California State Fire Marshal Listed
Specifications
- Patent
- Patents Pending (Patents: D682,655; D690,576; 8,094,017)
- Holding Force
- 1100lbs [499 kg]
- Dimensions
- M680BD Magnalock: 11-1/2"L × 2-9/16"D × 2-1/2"H Strike: 10-7/8"L × 9/16"D × 2"H
- Electrical
- 550mA (± 10%) at 12VDC 300mA (± 10%) at 24VDC
- Operating Temperature
- +32 to +110F [0 to +43C] Indoor use only
- Shipping Weight
- 13lbs [5.44kg]
Finish Options
- US28/628- Satin Aluminum Clear (Standard)
- US20A/313- Satin Brown
- 335- Satin Black
- US03/605- Polished Brass
- US04/606- Satin Brass
- US10/612- Satin Bronze
