List of Model/SKU Numbers for the SDC AUTO Series Low Energy Swing Single Door Operator
Here is a list of the Model/SKU Numbers and their corresponding attribute combinations associated with the Model.
| Model #/SKU | Option Combination | MSRP | Price | |
|---|---|---|---|---|
| AUTOS136V |
Finish:Dull Aluminium |
$2151.75 | ||
| AUTOS136X |
Finish:Dark Bronze |
$2393.25 | ||
| AUTOS142V |
Finish:Dull Aluminium |
$2151.75 | ||
| AUTOS142X |
Finish:Dark Bronze |
$2393.25 | ||
| AUTOS148V |
Finish:Dull Aluminium |
$2151.75 | ||
| AUTOS148X |
Finish:Dark Bronze |
$2393.25 | ||
| AUTOS172V |
Finish:Dull Aluminium |
$2313.00 | ||
| AUTOS172X |
Finish:Dark Bronze |
$2554.50 | ||
| AUTOS184V |
Finish:Dull Aluminium |
$2313.00 | ||
| AUTOS184X |
Finish:Dark Bronze |
$2554.50 | ||
| AUTOS196V |
Finish:Dull Aluminium |
$2313.00 | ||
| AUTOS196X |
Finish:Dark Bronze |
$2554.50 | ||
| AUTOS236V |
Finish:Dull Aluminium |
$2151.75 | ||
| AUTOS236X |
Finish:Dark Bronze |
$2393.25 | ||
| AUTOS242V |
Finish:Dull Aluminium |
$2151.75 | ||
| AUTOS242X |
Finish:Dark Bronze |
$2393.25 | ||
| AUTOS248V |
Finish:Dull Aluminium |
$2151.75 | ||
| AUTOS248X |
Finish:Dark Bronze |
$2393.25 | ||
| AUTOS272V |
Finish:Dull Aluminium |
$2313.00 | ||
| AUTOS272X |
Finish:Dark Bronze |
$2554.50 | ||
| AUTOS284V |
Finish:Dull Aluminium |
$2313.00 | ||
| AUTOS284X |
Finish:Dark Bronze |
$2554.50 | ||
| AUTOS296V |
Finish:Dull Aluminium |
$2313.00 | ||
| AUTOS296X |
Finish:Dark Bronze |
$2554.50 | ||
| AUTOS336V |
Finish:Dull Aluminium |
$2376.00 | ||
| AUTOS336X |
Finish:Dark Bronze |
$2617.50 | ||
| AUTOS342V |
Finish:Dull Aluminium |
$2376.00 | ||
| AUTOS342X |
Finish:Dark Bronze |
$2617.50 | ||
| AUTOS348V |
Finish:Dull Aluminium |
$2376.00 | ||
| AUTOS348X |
Finish:Dark Bronze |
$2617.50 |

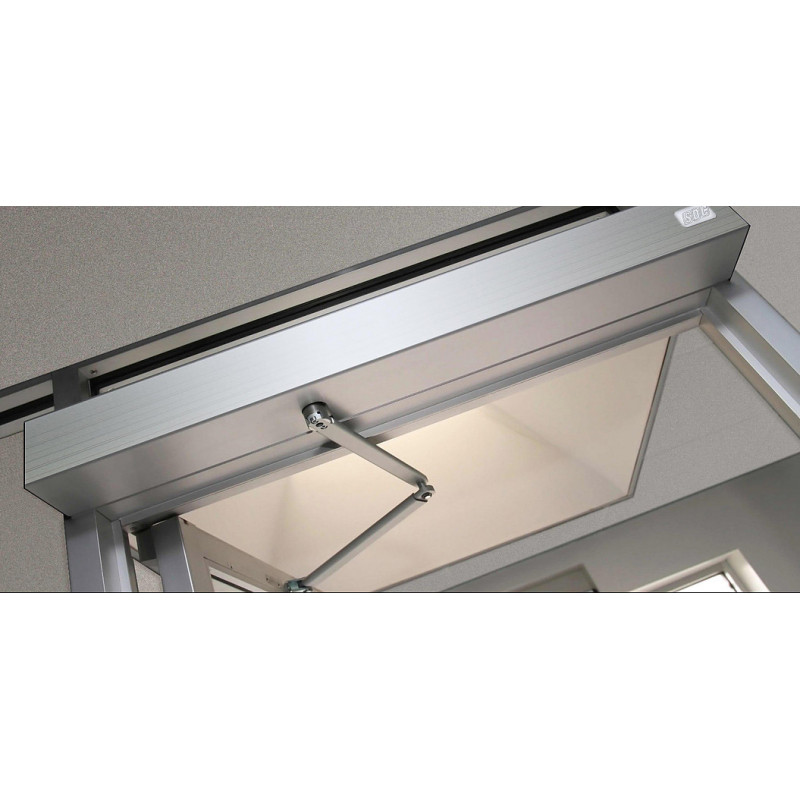

SDC's operator is built with a stateof-the-art microprocessor-based unit that is self-tuning and self-learning while offering non-handed operation, full-mechanical stops and a variety of interface options for sensors, pushplates, fire alarms and electrified locks. SDC's operator is belt driven with a combination of gears and pulleys which requires less torque, less power, absorbs more abuse, and is quieter than other automatic door openers while complying with all US and Canadian ADA requirements. Onboard diagnostics simplifies troubleshooting for ease of installation and all SDC operators can be easliy configured for surface mounted push/ pull applications. ANSI certified not required for initial installation.
Features
- Adjustable opening and closing speeds.
- Single button, self-tuning setup
- Adjustable hold-open time between 0 and 30 seconds.
- Stop door on obstruction.
- Push and Go operation
- Fire Alarm input
- Door Sequencing input
- Door Interlock input
- LED Status indication for all inputs
- Extremely quiet operation
- Momentary back pressure relief
- Obstruction detection
- Power close option
- Hold-open timer
- External function switches
- Built-in 1 Amp power supply
- Onboard lock sequencing
- Preset dip switches for alternative functions
- Customizable programming for system design
- USB port to easily upload customized programming
- Non-handed
- Push or pull compatible
- Spindles included
- High traffic use
Specifications
- Power Supply
- 115VAC @ 60Hz (+6%, -10%)
- Power Consumption
- 100W
- Current Consumption
- 1 Amp
- Motor
- 24 VDC Permanent Magnet with Belt Driven Encoder
- Header Dimension
- 4-1/2" H × 4-7/8" D
- Fused Protection
- 3.5 Amp Fuse (F1 located on I/O Board)
- Weight
- 22 lbs per Operator Assembly
- Ambient Operating Temperature
- -4 to 131°F
- Ingress Protection
- IP23 - protection from spray water up to 60° from the vertical - i.e. Rainstorm
- Accessory / Lock Power Supply
- 24 VDC / 1 Amp +
- Adjustable Timers
- Hold Open Time, Opening & Closing Speed
- Maximum Degree of Opening
- 130°
Standard Selector Switch Function
- Automatic
- Hold Open
- Manual (Off)
Maximum Door Weight
| PUSH Arm: | PULL Arm | |
|---|---|---|
| 36" Door | 438 lbs | 342 lbs |
| 42" Door | 328 lbs | 256 lbs |
| 48" Door: | 254 lbs | 198 lbs |
Standard Control Outputs
- Electric Lock Control
- 24 VDC Power Supply
- Door Status (Fully Open & Fully Closed)
- Alarm Signal
Standard Control Inputs
- Interior Activation
- Exterior Activation
- Emergency Shutdown
- Fire Alarm Input
- Safety Device Input
