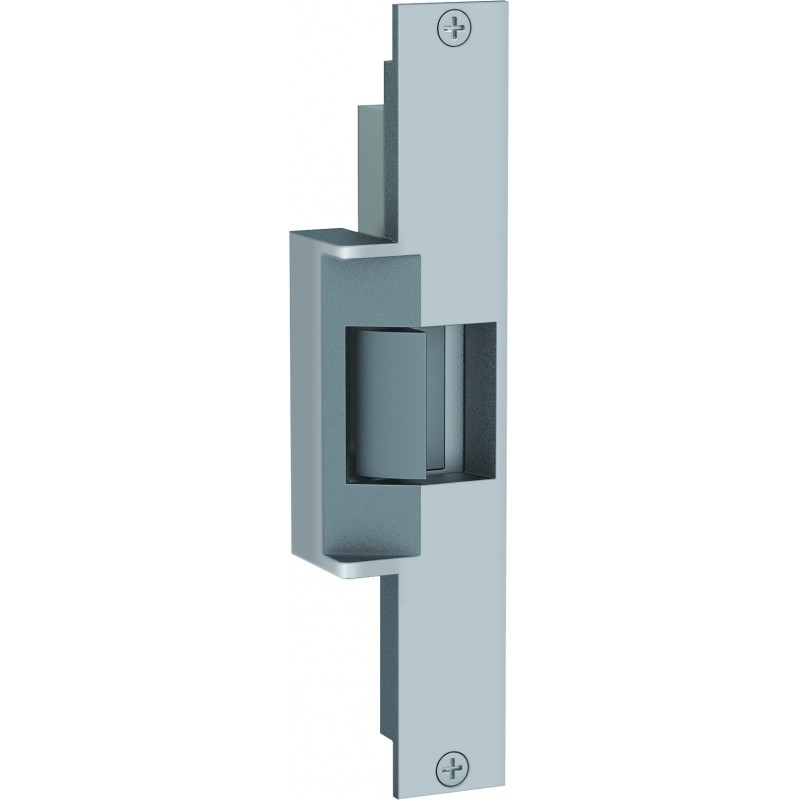

HES 310 Folger Adam Series Electric Strike

$905.00

Details: HES 310 Folger Adam Series Electric Strike

The 310 Series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes.

Features

  • Tamper resistant, heavy-duty construction
  • Constructed entirely of stainless steel for strength and corrosion resistance
  • Static strength 1,500 lbs
  • Dynamic strength 70 ft-lbs
  • Endurance rating 1,000,000 cycles
  • Horizontally adjustable keeper allows for door and frame misalignment
  • 1/2" keeper depth (310-2)
  • Non-handed
  • Fail secure (standard)
  • Plug-in connector

Specifications

Adjustability
Horizontal
Surface Mounting
Cutting required
Frame Material
Metal, Wood
Shim Type
NA
Latchbolt Accommodation
1/2" - 1"
Voltage
12, 24
Monitoring Installation
Factory Configured
Monitoring Options
Latchbolt and locking cam monitor with auxiliary switch
Endurance (cycles)
1,000,000
Dynamic Strength (ft-lbs)
70
Tamper Resistant
Yes
Fail Safe or Fail Secure
Fail Secure, Fail Safe
Warranty
SecuriCare five-year, no fault, no questions asked warranty
Lock Type
Cylindrical Lock, Mortise Lock, Mortise Lock with Deadbolt
Strike Body Depth (in)
NA
Strike Body Height (in)
NA

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

HES Compatibility Chart

HESFolger AdamAdams RiteVon DuprinRCITrineSDC
Complete, One Box, Solutions Standard, Models
1006CS, 1006CLB1006J712-75, 732-756211, 6400F2164410055
1006CS, 1006CLB1006K, 1006KD, 1006KM742-756210, 6400F21644100
1006CS, 1006CDB1006A, 1006AD, 1006AM
1006CS, 1006CDB1006N, 1006ND, 1006NM6210F2164
1006CS, 1006CDB1006T, 1006TD
1006CS, 1006CDB1006H, 1006HD, 1006HMF2164
1006CS, 1006CDB1006E
1006CS1006Z
1006R
1006J2310-2, 310-2 3/46215, 6224, 6226
1006CDB1006H-2310-3-16216
4500C742-757240, 72706210F21644100
5000C5000-5017140, 7340, 7410, 74114200, 5100L651425-4U
5000C5000-501A7101, 7160, 7300, 74404200, 5100L650425-4U
5000-5027110, 7310, 74105100L6508
5000-5037130, 7430L6507
5000-504
5200C5200-5015100S6514, 7114, 7314201245-4S
5200C5200-501A5100S6504, 7104, 730445-4R
5200-5025100S6508, 7108, 7308200245-7R
5200-503S6507, 7107, 73072678145-6R
5200-504
7000C7000-791712, 7327400, 7401, 7440
7000C7000-7927410, 7411
7000-78374R1, 74R2
7000-786
7000-789
75017501
8000C8000-801, 8000-801A
8000-801E, 8000-802, 8000-803
8500 Series
9400940005634850
950095006300F01624800F
9600960001624800
310-20B6222, 6225
310-46212
97009700310-4S4801
310-4-1, 310-4-2, 310-4-3, 310-4-30
310-6-1, 310-6-2, 310-6-3, 310-6-8, 310-6-30

NOTE:This chart is offered as a convenience only. Reference should be made to the idividual manufactuer's catalogs for complete data as to exact equivalents. There may be some variation in physical size, electrical characteristics and durability between strikes of different manufacturers. HES assumes no liability for differenes between items compared. When compatibility is a concern, contact Customer Support at 800-626-7590 for application assistance. NOTE: The 109 trim adapter may be required for a neater appearance in retro fit application where the strike lop dimensions exceed 3-3/8". NOTE:This chart details the HES and Folger Adam products that can replace competitors products, but not necessarily the reverse.

Lock Cross Reference

ANSI Lock Description Manufactuter Electric Strikes

Mortise, Locksets,

Mortise lockset, without a deadbolt
Arrow, Baldwin, Best, Marks, Omnia, PDQ 1600CS, 1006CS, 1600CLB, 1006CLB, RF1006CLB, IC1006CLB, 1600-1LB, 1006KM, RF1006-KM, IC1006-KM, 1500C, 4500C, RF4500, IC4500, 742-75
Corbin Russwin, ML2000 and, Arrow1600CS, 1006CS, 1600CLB, RF1006CLB, IC1006CLB 1600-1LB, 1006-KM, , RF1006-KM, IC1006-KM, 1500C, 4500C, RF4500, IC4500, 8500-852K, RF8500-852K, IC8500-852K, 742-75
Sargent 7700, 8100, Schlage L*1600CS, 1006CS, 1600CLB, 1006CLB, RF1006CLB, IC1006CLB, 1600-1LB, 1006-KD, RF1006-KD, IC1006-KD, 1500C, 4500C, RF4500, IC4500, *8500-852L, RF8500-852L, IC8500-, 852L(Schlage L), 742-75
Sargent 7900, 8200, 92001600CS, 1006CS, 1600CLB, 1006CLB, RF1006CLB, IC1006CLB, 1600-1LB, 1006-KM, RF1006-KM, IC1006-KM, 1500C, 4500C, 8500-851M, RF8500-851M, IC8500-851M, 742-75
Accurate, Falcon, Kaba, Ilco/Unican, Yale 8700, (manufactured, after 2005), Yale 88001600CS, 1006CS, 1600CLB, 1006CLB, RF1006CLB, IC1006CLB, 1600-1LB, 1006-KD, RF1006-KD, IC1006-KD 1500C, 4500C, RF4500, IC4500, 8500-852M, RF8500-852M, IC8500-852M

Mortise, Locksets

Mortise lockset, with a , 1" deadbolt
Accurate, Almet, Arrow, Baldwin, Best, Marks, Corbin, Russwin, Falcon, Omnia, PDQ Schlage1600CS, 1006CS, 1600CDB, 1006CDB, RF1006DBL, IC1006CDB, 1600-1DB, 1006-AM*, 1006-HM*, 1006-, NM, 1006T*
Sargent, Yale1600CS, 1006CS, 1600CDB, 1006CDB, RF1006DBL, IC1006CDB, 1600-1DB, 1006-AD*, 1006-HD, 1006-ND

Cylindrical , lockset

Latchbolt for, aluminum stile, doors
All, manufacturers5000, RF5000, IC5000, 1600-1LB, 1006-J, 7000C, RF7000, 1500C, IC7000, 5200, RF5200, IC5200

Cylindrical , lockset

Cylindrical lockset, up to 5/8" throw
All manufacturers1600CS, 1006CS, 5000, RF5000, IC5000, 7000C, RF7000, IC7000, 8000, RF8000, IC8000, 8300, RF8300, IC8300, V3, 712, 310-2

Cylindrical , lockset

Cylindrical lockset, up to 3/4" throw
All Manufacturers1600CS, 1006CS, 1600CLB, 1006CLB, RF1006CLB, IC1006CLB, 1600-1LB, 1006-J, RF1006-J, IC1006-J, 5200, RF5200, IC5200, 1500C, 4500C, RF4500, IC4500, 4500, RF7500, IC7500, 712-75, 310-75

Rim mounted

Rim mounted exit, device up to 1/2", throw
All Manufacturers7000-789, RF7000-789, IC7000-789, 9400, RF9400, IC9400

Rim mounted

Rim mounted exit, device up to 3/4", throw
All Manufacturers7000-783, RF7000-783, IC7000-783, 7000-786, RF7000-786, IC7000-786, 9500, RF9500, IC9500, 9600, RF9600, IC9600, 310-4

Rim mounted

Rim mounted exit, deadbolt
Corbin Russwin, (Secure Bolt), Yale (Square, Bolt), 9700, 310-4S

HES and Folger Adam electric strikes are designed to be installed in accordance with the ANSI/BHMA A156.31 4-7/8" jam preparation.

When accommodating a cylindrical lock, the electric strike is to be installed centerline to centerline.

When accommodating a mortise lock, the centerline of the electric strike is to be installed 3/8" above the centerline of the mortise lock, except asnoted for individual strikes. Folger Adam 712 series and 310 series will need special alignment with used with a mortise lock.

HES electric strikes are all non-handed and designed for installation in hollow metal, concrete filled metal, aluminum and wood jambs.

Folger Adam electric strikes are all non-handed and designed for installation in hollow metal, aluminum and wood jambs.

Available Model Numbers and Combinations

Model/SKU Attributes
310-3-1-12D-605 Bright Brass, Fail Secure, 1" Keeper Standard; For up to a 3/4" Throw Latchbolt & a 1" Deadbolt
310-3-1-24D-629-LCBMA Bright Stainless Steel, Fail Secure, 1" Keeper Standard; For up to a 3/4" Throw Latchbolt & a 1" Deadbolt
310-3-1-24D-630-LCBMA Fail Secure, Satin Stainless Steel, 1" Keeper Standard; For up to a 3/4" Throw Latchbolt & a 1" Deadbolt
310-3-1-12D-606 Satin Brass, Fail Secure, 1" Keeper Standard; For up to a 3/4" Throw Latchbolt & a 1" Deadbolt
310-3-1-12D-612 Satin Bronze, Fail Secure, 1" Keeper Standard; For up to a 3/4" Throw Latchbolt & a 1" Deadbolt
310-3-1-F-12D-605-LCBMA Bright Brass, Fail Safe, 1" Keeper Standard; For up to a 3/4" Throw Latchbolt & a 1" Deadbolt
310-3-1-12D-613 Fail Secure, Dark Oxidized Satin Bronze, 1" Keeper Standard; For up to a 3/4" Throw Latchbolt & a 1" Deadbolt
310-3-1-F-12D-606-LCBMA Satin Brass, Fail Safe, 1" Keeper Standard; For up to a 3/4" Throw Latchbolt & a 1" Deadbolt
310-3-1-12D-629 Bright Stainless Steel, Fail Secure, 1" Keeper Standard; For up to a 3/4" Throw Latchbolt & a 1" Deadbolt
310-3-1-F-12D-612-LCBMA Satin Bronze, Fail Safe, 1" Keeper Standard; For up to a 3/4" Throw Latchbolt & a 1" Deadbolt
310-3-1-12D-630 Fail Secure, Satin Stainless Steel, 1" Keeper Standard; For up to a 3/4" Throw Latchbolt & a 1" Deadbolt
310-3-1-F-12D-613-LCBMA Fail Safe, Dark Oxidized Satin Bronze, 1" Keeper Standard; For up to a 3/4" Throw Latchbolt & a 1" Deadbolt
310-3-1-24D-605 Bright Brass, Fail Secure, 1" Keeper Standard; For up to a 3/4" Throw Latchbolt & a 1" Deadbolt
310-3-1-F-12D-629-LCBMA Bright Stainless Steel, Fail Safe, 1" Keeper Standard; For up to a 3/4" Throw Latchbolt & a 1" Deadbolt
310-3-1-24D-606 Satin Brass, Fail Secure, 1" Keeper Standard; For up to a 3/4" Throw Latchbolt & a 1" Deadbolt

View All Model Numbers and Options
