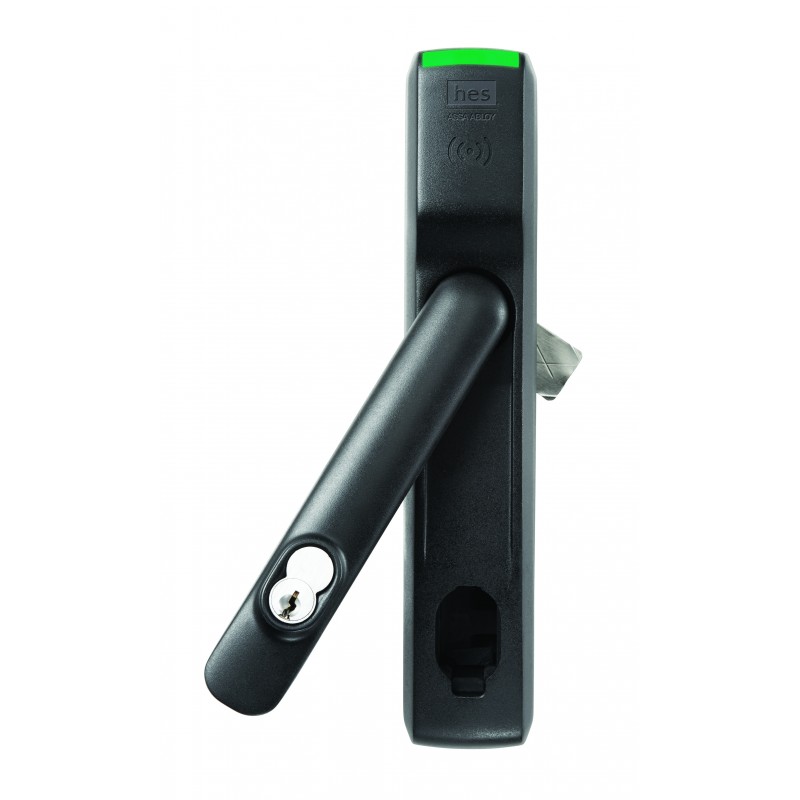

Details: HES KS200-640 Wiegand Server Cabinet / Drawer Access Control Lock

The HES KS200 Server Cabinet Lock extends access control to protect data center assets from intrusion and expensive downtime, by bringing real-time access control in a single-card system to individual server cabinet doors. Designed to install quickly and easily, on most swing-handle style server rack doors, the KS200 uses Wiegand wiring to integrate seamlessly with existing access control systems and ID badges. It supports a Small Format Interchangeable Core (SFIC) mechanical key override. With an integrated, multi-technology reader, the KS200 provides robust, cost-effective access control to meet strict regulatory compliance and protect data.

Specifications

FCC Part 15 & Industry Canada (ICES) Compliant
EU/CE Mark (EN 300 & 301)
RoHS Compliant
Patents Pending & D725,992
Operating Temperature 0 - 50C (32 - 122F)
Credentials supported: 125kHz Prox or 13.56 MHz; iCLASS®, iCLASS Elite, iCLASS SEOS™, iCLASS SE, ISO 15693 iCLASS, ISO 14443A Mifare, Mifare Plus, Desfire SE, Desfire EV1, HCE over NFC

Features

Mutli-technology reader
Integrates easily with existing electronic access control system
Hard wired Wiegand communication
Mechanical key override capable with SFIC (SFIC not included)
Static strength 250 lbs
Lock and DPS status monitoring
Dual voltage 12 or 24 VDC
Non-handed
Designed for standard 25 mm × 150 mm server rack lock openings
Three year limited warranty

Electrical

12 - 24 VDC +/- 10%
470 mA peak at 12 VDC
245 mA peak at 24 VDC

HES Warranty
