Reduced price!

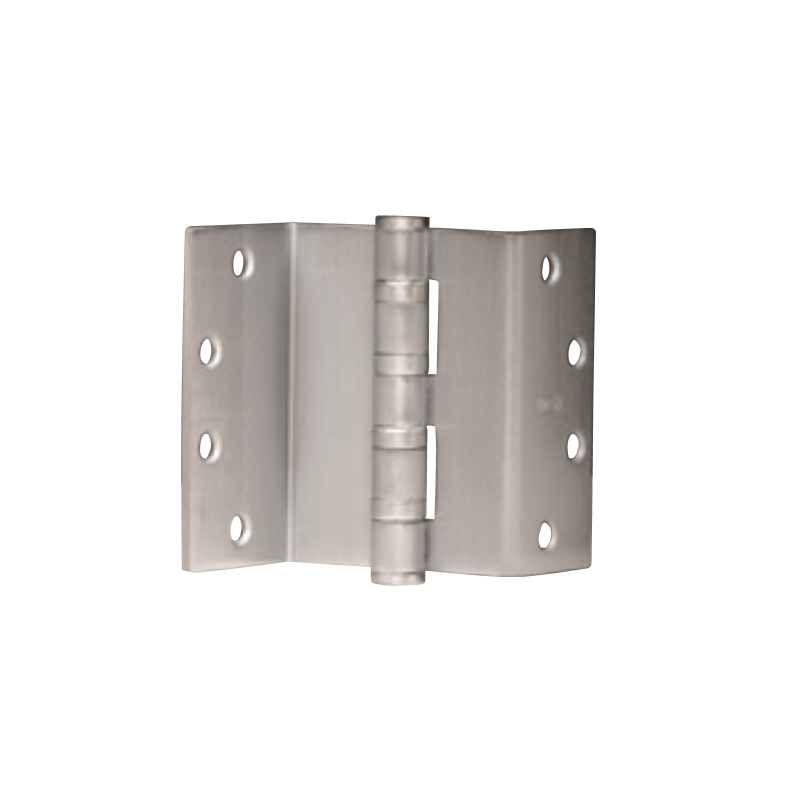

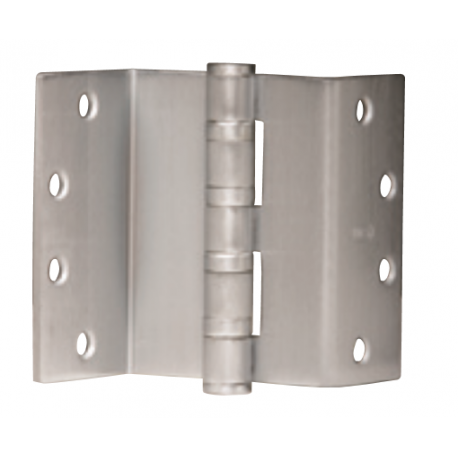

Ives 5BB1HW SC/BSC Five Knuckle, Ball Bearing, Swing Clear, Heavy Weight Mortise Hinge
Details: Ives 5BB1HW SC/BSC Five Knuckle, Ball Bearing, Swing Clear, Heavy Weight Mortise Hinge
5 Knuckle, Ball Bearing, Swing Clear Heavy Weight Full Mortise Hinge
- For heavy weight doors
- High frequency usage
- 2 ball bearing
- Packed with flat head wood and metal screws
- Designed too completely clear the opening when door is opened 92 degrees
Options
- NRP
- Non-Removable Pin
- B
- Beveled edge door
- HT
- Hospital Tip
- RC
- Round Corners - 1/4" or 5/8" Radius
- SEC
- Security Fastners - Pin-in-Socket
Dimensions
| Size (Inches) | Size (mm) | Gauge |
|---|---|---|
| 4.5 | 114 | 0.180 |
| 5 | 127 | 0.190 |
Brass Finishes
| Ives Finish | US3 | US4 | US10 | US10B | US10A | US11 | US15 | US26 | US26D |
|---|---|---|---|---|---|---|---|---|---|
| BHMA | 605 | 606 | 612 | 613 | 614 | 616 | 619 | 625 | 626 |
Steel Finishes
| Ives Finish | USP | US3 | US4 | US10 | US10B | US10A | US11 | US15 | US26 | US26 |
|---|---|---|---|---|---|---|---|---|---|---|
| BHMA | 600 | 632 | 633 | 639 | 640 | 641 | 643 | 646 | 651 | 652 |
Stainless Steel Finishes
| Ives Finish | US32 | US32D |
|---|---|---|
| BHMA | 629 | 630 |
Available Model Numbers and Combinations
| Model/SKU | Attributes |
|---|---|
| 5BB1 HW SC/BSC4.5-600RC1/4SHHT | Primed for Painting, Steel, 4.5", Not included |
| 5BB1 HW SC/BSC4.5-633NRPRC1/4SH | Steel, Satin Brass (Clear Coated), 4.5", Not included |
| 5BB1 HW SC/BSC4.5-646NRPRC1/4 | Steel, 4.5", Bright Nickel, Clear Coat, Not included, Not included |
| 5BB1 HW SC/BSC4.5-F-BLKSHHT | Steel, Matte Black, 4.5", Not included |
| 5BB1 HW SC/BSC5-632NRPRC1/4SHHTSEC | Bright Brass Plated, Clear Coated, 5", Steel, Included |
| 5BB1 HW SC/BSC5-639HT | 5", Steel, Dark Bronze, Clear Coated, Not included, Not included |
| 5BB1 HW SC/BSC5-641NRP | 5", Steel, Oxidized Satin Bronze, Relieved, Clear Coated, Not included, Not included |
| 5BB1 HW SC/BSC5-F643E/716NRPRC1/4HTSEC | 5", Steel, Aged Bronze, Blackened, Edge Relieved, Not included, Included |
| 5BB1 HW SC/BSC5-646NRPRC1/4HTSEC | 5", Steel, Bright Nickel, Clear Coat, Not included, Included |
| 5BB1 HW SC/BSC5-651NRPRC1/4HTSEC | Bright Chrome, 5", Steel, Not included, Included |
| 5BB1 HW SC/BSC5-652NRPRC1/4HTSEC | Satin Chrome, 5", Steel, Not included, Included |
| 5BB1 HW SC/BSC5-F-BLKNRPRC1/4HTSEC | 5", Steel, Matte Black, Not included, Included |
| 5BB1 HW SC/BSC5-630NRPRC1/4HTSEC | 5", Satin Stainless Steel, Not included, Included |
| 5BB1 HW SC/BSC4.5-639NRPRC5/8SHHTSEC | Steel, Dark Bronze, Clear Coated, 4.5", Included |
| 5BB1 HW SC/BSC4.5-641RC1/4HT | Steel, Oxidized Satin Bronze, Relieved, Clear Coated, 4.5", Not included, Not included |
