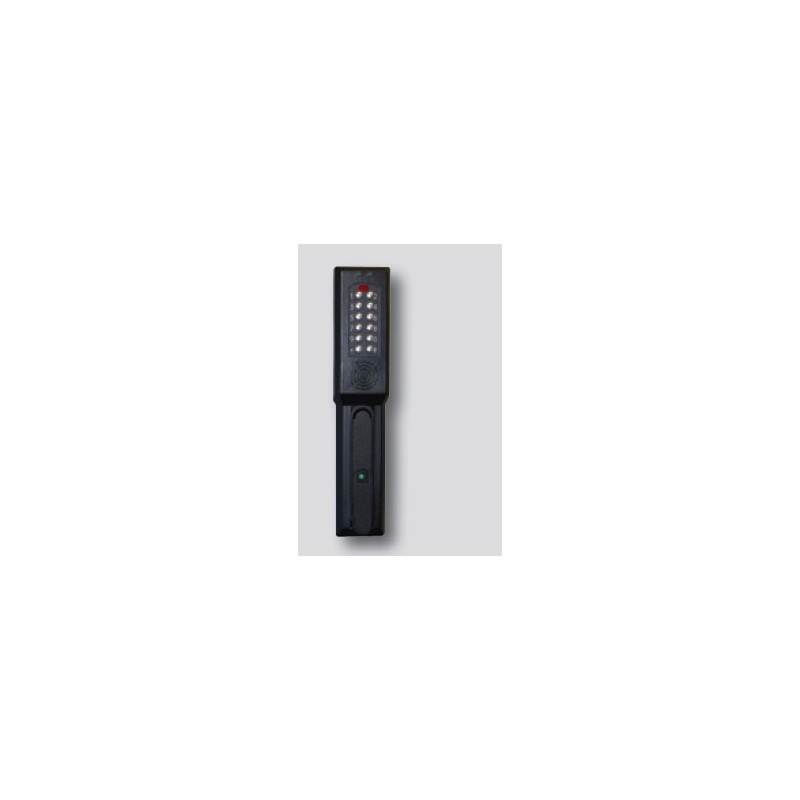

Details: KABA E-Plex 5090 Server Cabinet Cipher Lock

Small, sleek keyless electronic pushbutton deadbolt lock replaces existing deadbolt and eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by PIN code, while allowing free egress. Requires no wiring to or through the door which eliminates the risk of damage from pinched wires that can result in costly callbacks.

Product Details

100 Codes; upgrades to 300 Codes with optional software
Locks are programmed via keypad or with optional Microsoft Excel based software
(5) Authority Levels: master, manager, service user, access user, and maintenance unit user
Non-handed; pre-assembled for left hand door installations-easily changed in the field
Heavy-Duty resin polymer housing, stainless backing plate, vandal resistant, solid metal pushbuttons
Standard Finish: Black 401 housing and lever with Satin Chrome 626 Buttons
Key Override Options: Key-in-lever style cylinder can be ordered keyed alike or keyed different (not a changeable field)

Operation Mode:
- PIN access; Passage -- can be be toggled on/off or can be pre-programmed to relock after a certain number of hours

Electronic Access Control lock for installation on a standard 50?50/50 IT server cabinet
100 Codes
30,000 Audit Events
Optional Software

Requires AA batteries (4x) located in Mortise housing

Certification and Standards:
- Americans with Disabilities Act (ADA)
- ANSI/BHMA A156.13 and A156.25, Grade 1 Certification for Mortise Electronic Locks; 3-hour, UL/ULC fire door rating for "A" labeled doors
- Environmental: Approved for Indoor use only: -31° F (-35° C) to 151° F (66° C)

Warranty: 1-year warranty from date of installation; built-in warranty counter in lock memory

(Optional) E-Plex Series Acessories

E-Plex Software Implementation kit - up to 300 Users (Excel based templates)

Mechanical Features

EMKA 1150 Locking Handle; Utilizes the existing door locking hardware (cam and/or locking bar)
Heavy-Duty resin polymer housing, stainless backing plate, vandal resistant, solid metal pushbuttons
Non-handed; pre-assembled for left hand door installations-easily changed in the field

Installation

Simple, easy-to-install reader unit installs into standard 50?50/50 IT server cabinet prep. Power interface unit enclosure is factory prepped for simple wiring with low voltage connections directly into off-the-shelf power supply units. Wiring harness with cabinet-to-door quick disconnect and mounting brackets are also included.

Items supplied include: installation manual, quick reference guide, operations manual, and required installation hardware

Electronic Features

Indicators: Audible and Visual indicators
Power Supply: Requires 12 or 24 VDC power input. If power is lost, user data and lock parameters are retained in on-board memory. Power interface unit enclosure is factory prepped for simple wiring with low voltage connections directly into off-the shelf power supply units.
Alarm Interface: Product also includes a contact closure, alarm shunt output to interface with new or existing fire alarms and security systems.

Kaba's line of electronic locks provide greater access control and more features than their Simplex mechanical models. The KABA E-Plex 5090 Server Cabinet Lock offers the ability to program up to 3000 individual codes via the keypad or on an optional Microsoft Excel program. Audit trails, in the past only featured on expensive networked access control systems, are now accessible on your Kaba lock. So whether you want the simplicity of keyless access or the power of RFID integrated technology, be sure to try the KABA E-Plex 5090 Server Cabinet Lock.

Kaba Warranty
