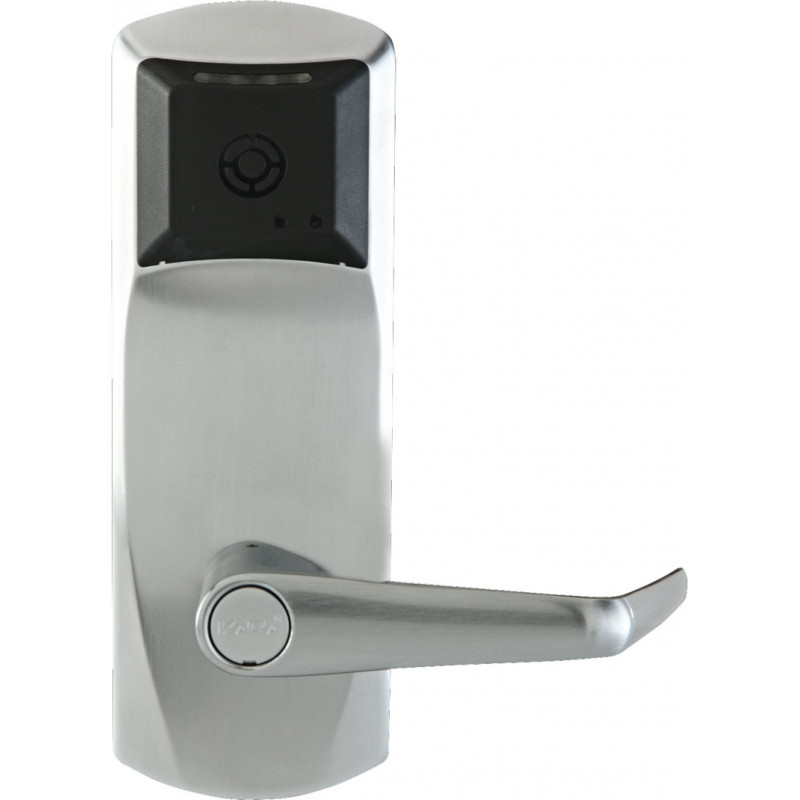

Reduced price! Kaba E7900 E-Plex Satin Chrome  RFID Electronic Lock Satin Chrome

Kaba

Kaba E-Plex E7900 Electronic Wireless Lock

E79N

$1,073.00

?
?

Details: Kaba E-Plex E7900 Electronic Wireless Lock

With a streamlined design, this cost-effective, heavy duty electronic lockset is built for performance. The most versatile E-Plex model to date, it functions in standalone or wireless modes for cylindrical, mortise, and exit trim applications. The E-Plex 7900 offers the same trusted function and reliability customers have come to love with other E-Plex offerings. With variable models each designed to function with a designated list of credential types, E-Plex 7900 can be trusted in many access control environment.

  • Proximity (125kHz)
  • MiFare
  • iCLASS Legacy

Features

  • Integrated wireless access control
  • Integrated RFID reader only lock - not push buttons
  • Streamlined design
  • More secure with door monitoring and sensing capabilities

Technical Data

  • Handing:
  • Left or right factory handed mortise, field reversible handing (lever and mortise)
  • Levers (inside & outside):
  • ADA compliant, outside lever free to rotate upward and downward in locked
  • mode.
  • Lever clearance (space from end of lever to door):
  • Long Lever: 3/8" (9.5 mm lever clearance)
  • Short Lever: 2" (51 mm lever clearance)
  • Elevon & Gala Lever: 2" (58 mm lever clearance) (non-key override, inside
  • levers only)

Key Override Ilco KIL cylinder, keyed-alike, keyed different (includes adapter for various KIL cylinder), Best small format IC prep 6-7 pin (core not included) Deadbolt 1" (25 mm) (for ASM mortise) solid metal, projected by inside thumbturn and retracted with the latch by the interior handle, emergency key override or authorized keycards. Door Thickness From 1-3/8" to 2-1/2" (35 mm to 66 mm) Shipping Weight 8.5 lbs (3.8 kg) Housing Construction Cast zinc alloy (outside housing levers and thumbturn), stainless steel inside housing

Finishes

  • Satin chrome
  • Bright brass
  • Bright chrome
  • Dark bronze
  • Satin brass
  • Satin nickel
  • Ultra satin chrome
  • Standard Backset:
  • 2-3/4" (70 mm) backset or optional 2-3/8" (60 mm) backset also available for cylindrical lock
  • 2-3/4" (70 mm) backset for mortise lock
  • Locking Options:
  • ANSI lock case with 1-1/4" or 1" lock front mortise
  • Cylindrical latch (2-3/8 or 2-3/4 backset)
  • Batteries:
  • Alkaline 4 AA batteries for up to 90,000 openings. Low battery indicator on lock and in software.

Programming & Audit Trail

E-Plex 7900 RFID is a BLE enabled Grade 1 electronic lockset offering more compatibility. With variable models each designed to function with a designated list of credential types, E-Plex 7900 can be trusted in any access control environment. The E7900 offers wireless door sensing capabilities and allows for real-time commands such as emergency lockdown. E7900 integrates with a suite of dormakaba products to provide complete facility access control.

7900 with E-Plex Enterprise Software

Lock memory stores 30,000 audits, max 10,000 users, wireless locks using Enterprise software stream lock transactions in real time with on-line programming. Stand-alone lock programming and audit retrieval requires PC M unit.

7900 with Aurora Software

Lock memory stores 30,000 audits, max 10,000 users, wireless locks using Aurora software stream lock transactions in real time with on-line programming. Stand-alone lock programming and audit retrieval requires M unit (Handheld device - available soon).

Programming Command Card

Command card set matching card technology of lock ordered is required to be purchased separately to program all locks with that same card technology (not included with lock)

Product Listings

ADA compliant, BHMA/ANSI Grade 1, Florida Windstorm, UL10/UL10C, FCC Part 15 Class A and CE directive 89/336/EEC compliant

Operating Conditions

-31°F to 149°F (-30°C to 65°C) 0% to 85% non-condensing humidity at 86°F (30°C)

Functionality

  • Up to 100 gateways per network
  • 100 devices (locks/routers) per gateway
  • Up to 8 routers per gateway
  • Locks/routers can be up to 2-hops from gateway
  • Locks will ping and look for closest gateway/router

Available Model Numbers and Combinations

Model/SKU Attributes
E79N2061LLKL626 Left Handed, Not Included
E79N2061LLKR626 Right Handed, Not Included
E79N1061LLBL626 Left Handed, Not Included
E79N1061LLBR626 Right Handed, Not Included
E79N1061LLKL626 Left Handed, Not Included
E79N1061LLKR626 Right Handed, Not Included
E79N2031LLBF626 Not Included
E79N2031LLKF626 Not Included
E79N2067LLBL626 Left Handed, Not Included
E79N2067LLBR626 Right Handed, Not Included
E79N2067LLKL626 Left Handed, Not Included
E79N2067LLKR626 Right Handed, Not Included
E79N1031LLBF626 Not Included
E79N1031LLKF626 Not Included
E79N1067LLBL626 Left Handed, Not Included

View All Model Numbers and Options
