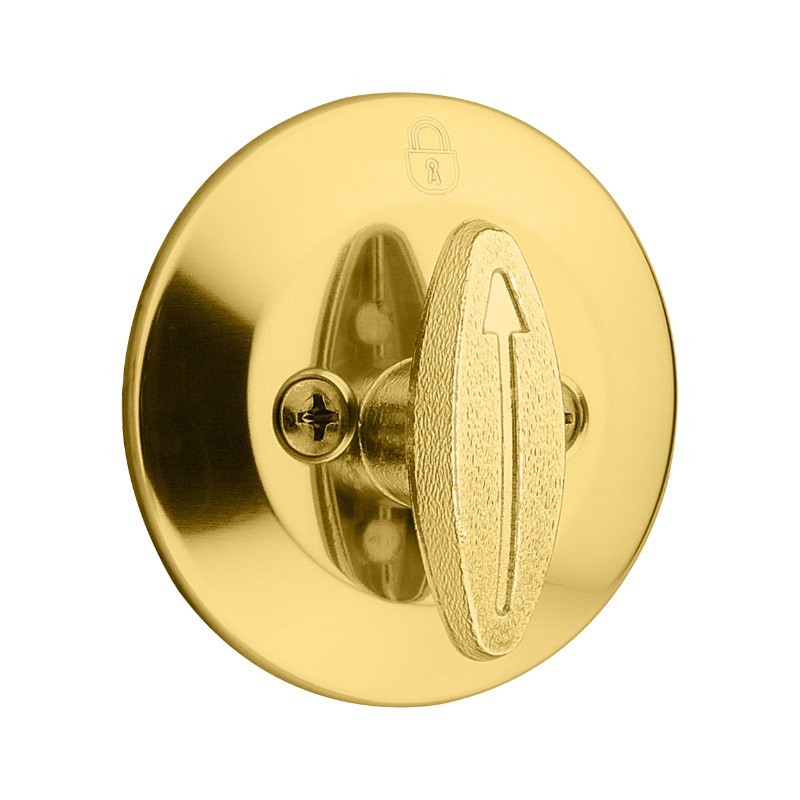

Kwikset 663 One Sided Deadbolt (No Exterior Plate)
Details: Kwikset 663 One Sided Deadbolt (No Exterior Plate)
Performance Features
- ANSI/BHMA Grade 3 Security
- Add to a keyed knob or lever for additional security
- Lifetime mechanical and finish warranty
Technical Specifications
- ADA
- Meets sec. 4.13.9 ADA requirements
- ANSI Certification
- A156.2
- Backset
- 2⅜"
- BHMA Certification
- Grade 3
- Bolt
- 1" throw
- Cross Bore
- 1⅝"
- Door Thickness
- 1⅜" to 1¾"
- Edge Bore
- 1"
- Latch Face
- 1" × 2¼"
- Latch Type
- Round Corner, Square Corner and Drive-In
- Panic Proof
- No
- Product Class
- Residential
Downloads
Kwikset is a leading producer of residential deadbolts, which includes the Kwikset 663 One Sided Deadbolt (No Exterior Plate). Trust them to provide you with a high level of security, while looking good in the process.
Available Model Numbers and Combinations
| Model/SKU | Attributes |
|---|---|
| 663 UL 3 | Thumbturn One Side UL |
| 663 UL 5 | Thumbturn One Side UL |
| 663 UL 11P | Thumbturn One Side UL |
| 663 UL 15 | Satin Nickel, Thumbturn One Side UL |
| 663 UL 15A | Thumbturn One Side UL |
| 663 UL 26 | Polished Chrome, Thumbturn One Side UL |
| 663 UL 26D | Satin Chrome, Thumbturn One Side UL |
| 663 UL 514 | Matte Black, Thumbturn One Side UL |
| 663 514 | Matte Black, Thumbturn One Side |
| 663 15A | Thumbturn One Side |
| 663 26D | Satin Chrome, Thumbturn One Side |
| 663 15 | Satin Nickel, Thumbturn One Side |
| 663 26 | Polished Chrome, Thumbturn One Side |
| 663 3 | Thumbturn One Side |
