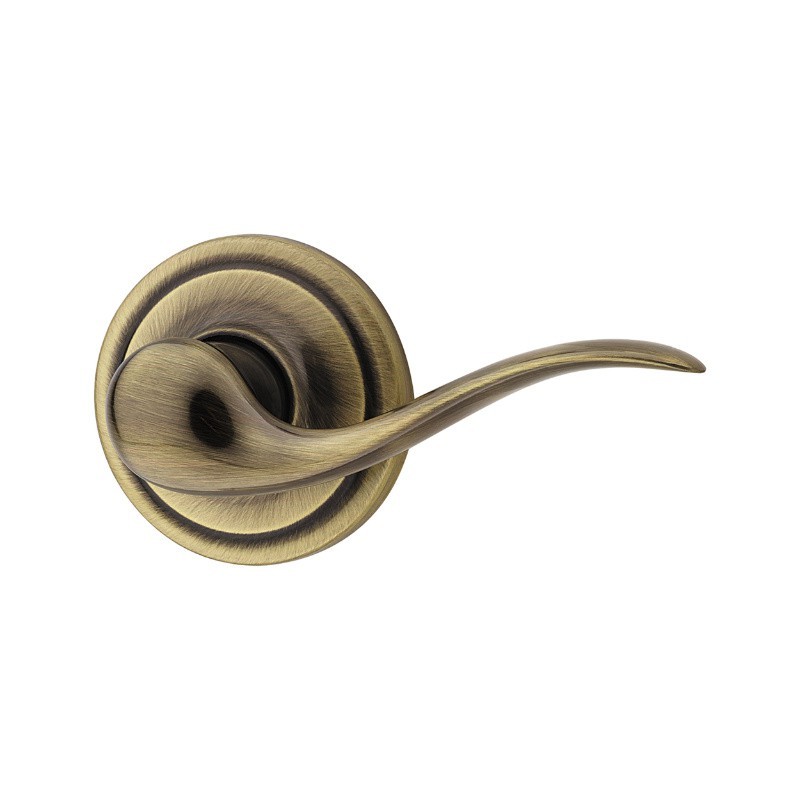

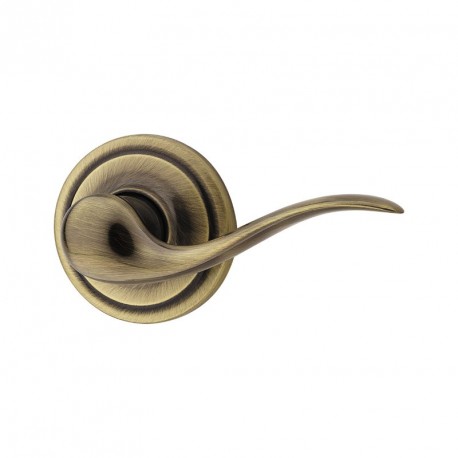

Kwikset Tustin Lever

$55.00

?
?
?
?
?

Details: Kwikset Tustin Lever

The Tustin Lever adds the perfect touch to any door thanks to its stylish yet understated wave silhouette design. It's simple and elegant and comes in a variety of finishes. Pair it with one of Kwikset's deadbolts for added security.

Features

Performance Features

  • Features a fully adjustable latch to fit all standard door preparations
  • ANSI/BHMA Grade 2 Security
  • Fully reversible Lever - Fits both right handed and left handed doors
  • Lifetime mechanical and finish warranty
  • Cylinders feature a stainless steel side locking bar, racks and pins for increased strength and security
  • Patented side locking bar technology offers improved security by protecting against lock bumping, an attack technique used to defeat conventional pin & tumbler locks.

Specifications

ADA
Passage and Dummy functions satisfy sec. 4.13.9 ADA req
ANSI Certification
A156.2
Backset
Adjustable 2 3/8 or 2 3/4
BHMA Certification
Grade 2
Collection
Tustin
Cylinder
6-pin Standard or 5 pin SmartKey
Cross Bore
2"
Door Thickness
1" to 1"
Edge Bore
1"
Functions Available
Hall/Closet Passage, Bed/Bath Privacy, Keyed Entry, Keyed Entry-Free Interior, Vestibule
Handing
Left, Reversible, Right
Handle Style
Metal Lever
Latch Face
1" 2
Latch Type
Round Corner, Square Corner and Drive-In
Lever Length
4-7/32"
Panic Proof
No
Product Class
Residential
Projection
2-3/32"
Rose Diameter
2"
Shape
Wave
Style
Contemporary/Modern

Downloads

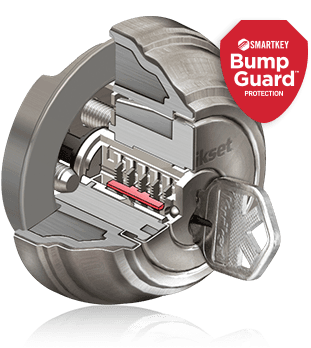

Kwikset SmartKey Cylinder

Kwikset SmartKey

With Kwikset SmartKey you never have to worry about an intruder finding lost or stolen keys again. Utilizing SmartKey technology, you can easily and quickly re-key your locks in three easy steps. Simply insert the functioning key and turn ¼ clockwise, then insert the SmartKey learn tool and remove the functioning key. Finally, insert your new key and ½ turn it counter clockwise and just like that your security is reset. Kwikset prides themselves on creating ANSI Graded bump guard protected high security door hardware you can trust to be drill and pick resistant. Re-key your SmartKey locks as frequently as you wish while maintaining the highest level of security. Choose from our variety of knobs, levers, deadbolts, handlesets, and electronic locks to upgrade your safety and your home.

SmartKey™ provides security that is resistant against torque attacks, passes the most stringent lock picking standard UL 437, par 11.6. and utilizes BumpGuardâ„¢ to prevent lock bumping.

Features of the SmartKey

  • Bump proof and superior pick resistance
  • Secure your home in seconds – SmartKey allows you to re-key your lock in seconds, rendering lost or unreturned keys useless.
  • Advanced protection from kick attacks
  • Highest professional security ANSI/BHMA certified Grade 1

Reasons you will want to re-key

  • Lost, stolen or unreturned keys
  • Recently moved
  • Increase your home's security
  • One-key convenience for all Kwikset locks
  • Remodeling, upgrading or updating

Reasons SmartKey is Superior

Drill Resistance
The lock cylinder uses two steel balls inserted into the front of the key face to resist attack from drilling.
ANSI Grading
SmartKey is available in an ANSI Grade 1 deadbolt - certified the highest level of residential security.
BumpGuard™
Patented side locking bar technology offers improved protection against lock bumping, an attack technique used to defeat conventional pin tumbler locks.
Superior Pick-Resistance
SmartKey locks have passed the most stringent lock-picking standard, UL 437, par. 11.6.

How the Kwikset SmartKey Works

You will need to have your Functioning Key and Learn Tool for this to work.

  • Functioning Key
    Functioning Key
  • Learn Tool
    SmartKey Learn Tool
  • New Key
    New Key
  1. Re-Key Step 1
    Insert the functioning key & make a 1/4 turn clockwise.
  2. Re-Key Step 2
    Insert & remove the SmartKey learn tool, Then remove the functioning key.
  3. Re-Key Step 3
    Insert the new key & turn 1/2 turn counter-clockwise. Done. Your lock is now re-keyed!

Available Model Numbers and Combinations

Model/SKU Attributes

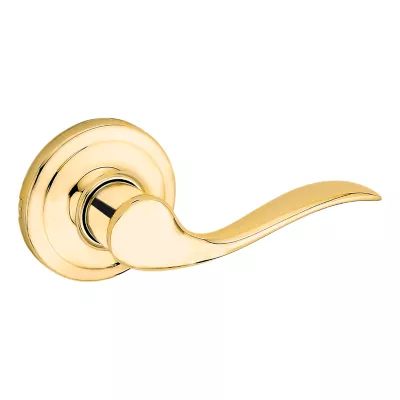

725TNL 3 Polished Brass, Full-Round Strike, Non-Keyed Function
725TNL 15 SCAL RCS Satin Nickel, Square Corner, Standard Round Corner, Non-Keyed Function
725TNL 26 RFAL Polished Chrome, Drive in, Full-Round Strike, Non-Keyed Function
725TNL 26D RCALKD Satin Chrome, Round Corner, Full-Round Strike, Keyed Different
725TNL 514 RFAL SCSKA Matte Black, Drive in, Square Corner, Keyed Alike
735TNL 15 RCSKA Satin Nickel, Standard Round Corner, Keyed Alike
735TNL 26D SCALKD Satin Chrome, Square Corner, Full-Round Strike, Keyed Different
740TNL 3 SMT SCAL RCSKD Entry, Polished Brass, Square Corner, Standard Round Corner, Keyed Different
740TNL 514 SCALKA Entry, Matte Black, Square Corner, Full-Round Strike, Keyed Alike
745TNL 11P RCS Venetian Bronze, Standard Round Corner, Non-Keyed Function
745TNL 26D RFALKA Satin Chrome, Drive in, Full-Round Strike, Keyed Alike
750TNL 11P SMT RCAL RCS Venetian Bronze, Round Corner, Standard Round Corner, Non-Keyed Function
750TNL 11P 6AL SCSKD Venetian Bronze, Six Way Adjustable, Square Corner, Keyed Different
750TNL 26 SMT SCSKA Polished Chrome, Square Corner, Keyed Alike
755TNL 11P SCAL SCSKD Venetian Bronze, Square Corner, Square Corner, Keyed Different

View All Model Numbers and Options
