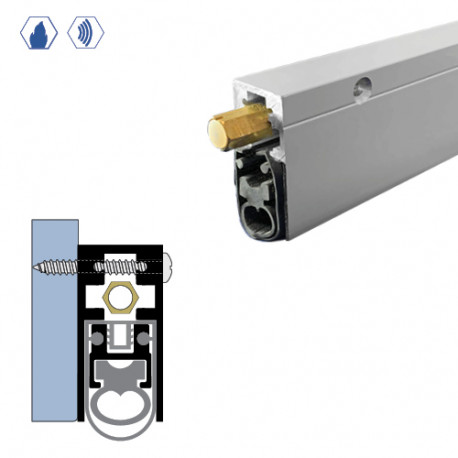

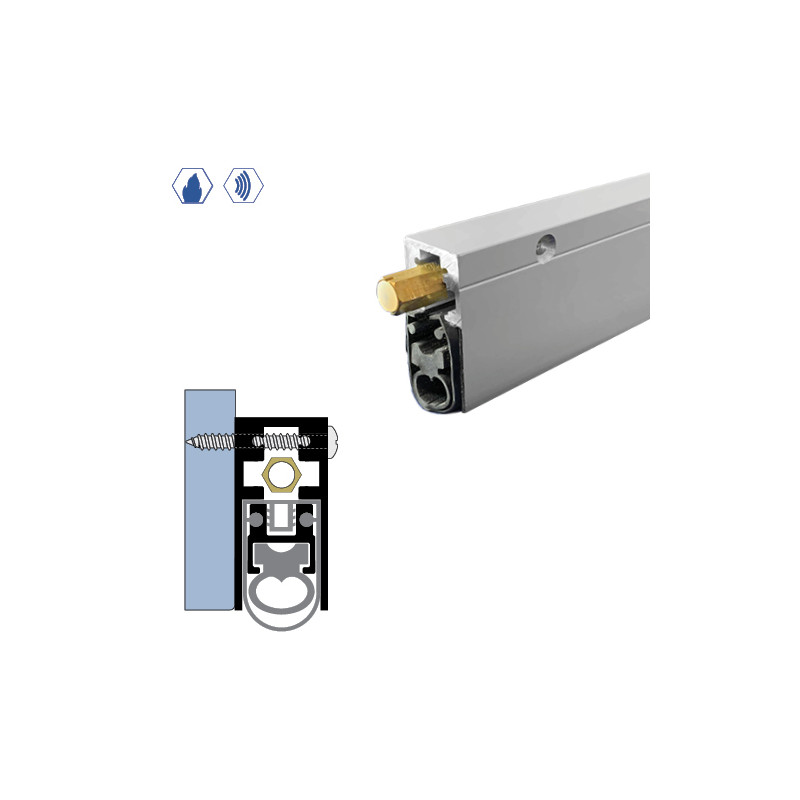

Legacy Manufacturing 7763 Surface Automatic Door Bottom

$289.44

Details: Legacy Manufacturing 7763 Surface Automatic Door Bottom

Competitor Equivalent

LegacyNGPPemkoZero
7763--367AA

Finishes

CA
Clear Anodized Aluminum
DB
Dark Bronze Anodized Aluminum
WP
White Powder Coat
MB
Matte Black Powder Coat

Options

PV
Pivot Doors
EA
Electrical Actuator
FX
Integral Intumescent
PULL
Pull Option
FL
Fire Label

Features

  • Can be made any size from 12" to 144"
  • Designed to drop like a scissor, hinge side first then self-leveling to compensate for uneven floors.
  • 3.5 million cycles tested.

Materials / Specifications

  • Solid Rubber Extrusion is Black
  • Aluminum is Clear Anodized
  • Screws are standard (#8 × 1-1/2" SMS self-drilling screws) supplied
  • Brass Hex Nut
  • Unit comes with 1 pair of End Caps - Part #4163EC-CA or #4163EC-MB
  • Maximum 1" drop / adjustable
  • Replacement SRE - Part #4563SRE and Jacket - Part #4763SRE

THIS PRODUCT IS FIRE-RATED

ACOUSTICAL RATINGS ARE ACHIEVED BY OEM TESTING USING SPECIFIC DOOR ASSEMBLY CONFIGURATIONS.

Download Assets

Available Model Numbers and Combinations

Model/SKU Attributes
7763WP-SF-72 72", White Powder Coat,
7763MB-60 Standard, 60", Matte Black Powder Coat
7763WP-96 Standard, 96", White Powder Coat
7763MB-PV-18 18", Matte Black Powder Coat, Pivot Doors
7763DB-FL-108 108", Dark Bronze Anodized Aluminum, Fire Label
7763MB-PV-36 36", Matte Black Powder Coat, Pivot Doors
7763WP-108 Standard, 108", White Powder Coat
7763MB-PV-48 48", Matte Black Powder Coat, Pivot Doors
7763WP-SF-84 84", White Powder Coat,
7763MB-PV-60 60", Matte Black Powder Coat, Pivot Doors
7763MB-EA-18 18", Matte Black Powder Coat, Electrical Actuator
7763WP-SF-96 96", White Powder Coat,
7763MB-EA-36 36", Matte Black Powder Coat, Electrical Actuator
7763MB-EA-48 48", Matte Black Powder Coat, Electrical Actuator
7763CA-FL-72 72", Clear Anodized Aluminum, Fire Label
