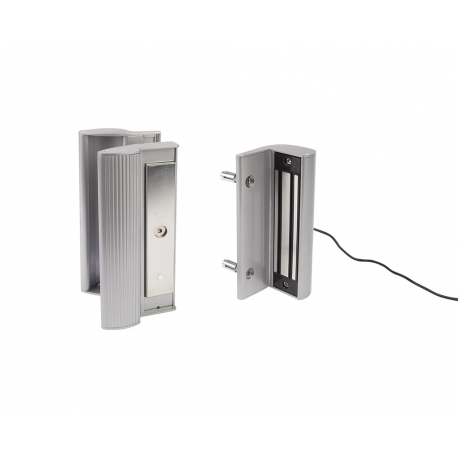

Locinox MAG Surface Mounted Electromagnetic Lock w/ Integrated Pull/Push Handles, 3006 - Pull Handle

MAG

$323.72

Details: Locinox MAG Surface Mounted Electromagnetic Lock w/ Integrated Pull/Push Handles, 3006 - Pull Handle

The MAG is a bolt-on electromagnetic lock for powered access control. Available in 2 versions; the MAG3000 has up to 660 lbs. and the MAG6000 which has up to 1320 lbs. of pull force resistance. The aluminum powder coated housing with integrated design handles gives your access control gate that extra elegant touch. Stop losing precious time with welding boxes; drilling just 7 holes does the job - our patented Quick-Fix bolts help you install quickly and easily. A two-layer, protective coating guarantees that our electromagnetic locks are ready for years of worry-free use in the outside elements.

Features

  • Guaranteed holding force tested on every magnetic lock
  • 500h salt spray resistant! SGS Certified (ISO 9227)
  • Tested according to ISO 9227
  • Special two-layer protective coating developed for outdoor use
  • Weatherproof aluminum housing designed for exterior use
  • Anti-residual magnetism kick-off system
  • Raised edge on the magnet housing makes it impossible to put a crowbar between the magnet and the armature plate
  • Fail open
  • Fast and easy fixing by means of 5 holes with Quick-Fix

Specifications

Voltage
12V / 24V DC
MAG3000 Minimal pulling force
3000N (660 lbs)
MAG6000 Minimal pulling force
6000N (1300 lbs)
Current MAG3000
500 mA / 12 V or 250 mA / 24 V
Current MAG6000
460 mA /12 V or 230 mA / 24 V

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Available Model Numbers and Combinations

Model/SKU Attributes
MAG-3000-9005 Silver,
MAG-3000-ZILV
MAG-6000-9005 Silver,
MAG-6000-ZILV
