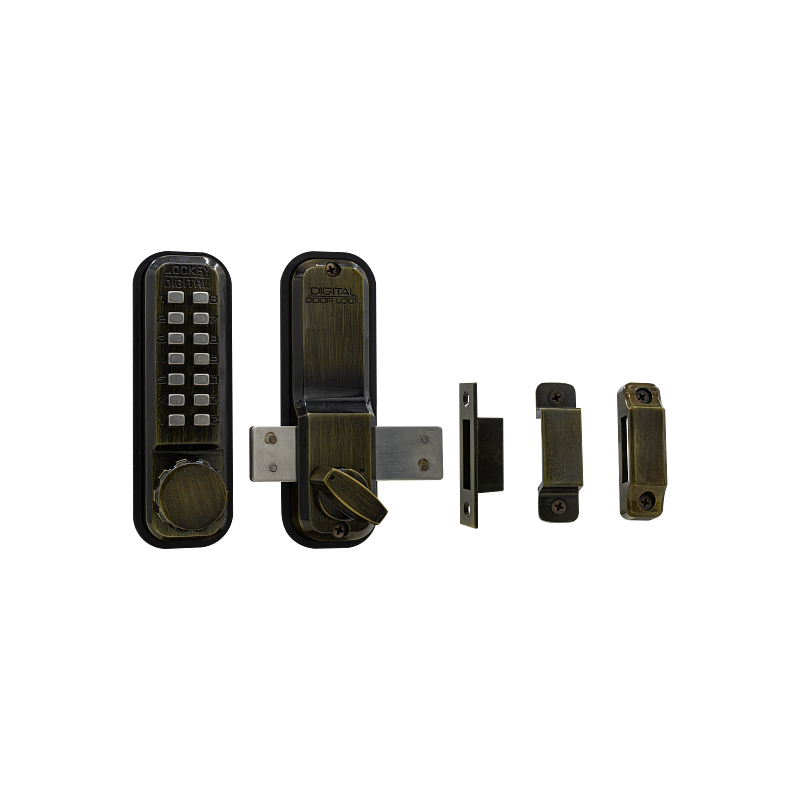

Details: Lockey 2200 Mechanical Keyless Surface Mount Deadbolt Lock

Features

• Surface Mount Deadbolt Lock/Surface Mount Slide Bolt
• Narrow Stile
• One user code with thousands of possible combinations
• Both long and short bar included
• Easy to change combination
• Reversible Handing
• Will lock any hinged configuration
• Oversized Knob (OSK) Available
• Lifetime Mechanical Warranty
• For Exterior & Interior use
• Weather Resistant

Specifications

Dimensions

5-5/8" L × 1-5/8" W × 1-5/8" D

Total Coverage with Trim Plates

6" × 2"

Door Thickness

1-1/8" to 2", up to 5" thick with Extension Kit (sold separately)

Short Throw Bar

7/8"

Long Throw Bar

2-1/4"

Material

Zinc-plated Steel with Teflon coated stainless steel interior components

Applications

• Public Buildings & Facilities
• Commercial & Industrial Buildings
• Government & Military Facilities
• Retail & Strip Malls
• Multifamily & Mixed-Use

Downloads

• LockeyUSA Catalog
• Instructions
• Spec Sheet

Lockey Warranty
