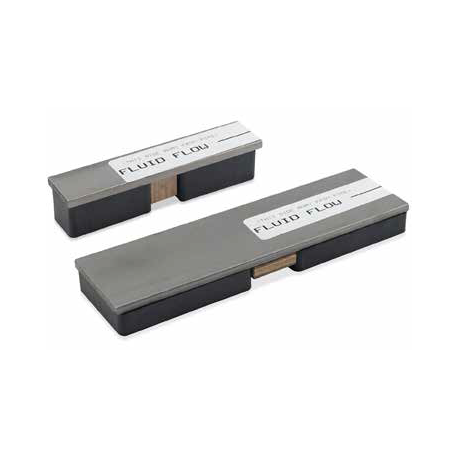

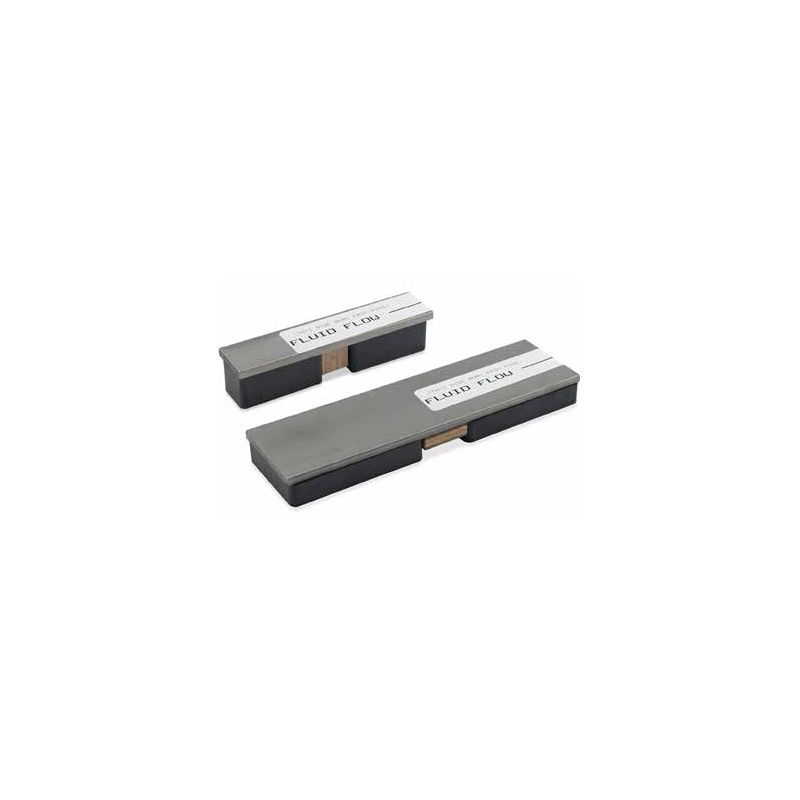

Magnet Source WTM Water Treatment Magnet

WTM

$28.03

Details: Magnet Source WTM Water Treatment Magnet

Magnetic treatment of water helps reduce "hardness" caused primarily by calcium and magnesium.

Water treatment magnets can prevent deposits of minerals on the inside of the pipe walls, and descale the existing buildup of solids. Although treatment begins when the magnets are installed, descaling can take as long as six months in heavily crusted pipes. Magnetized water is softer and cleaner.

These magnets are specifically designed for installation on various pipe sizes that range from .25 to 8 inches in diameter. They can be used on copper, plastic or steel pipes, and can be applied directly to a pipe or housed in a more marketable enclosure. For producers of finished, marketable water treatment units, please call one of our magnet application experts to determine the magnet best suited for your design.

Water Treatment Magnets

Part No.Pipe Size (Dia., In.)Magnets NeededLengthWidthHeightWeight (lbs.)Typical Applications
WTM4.75 - 11 - 24.511.7079Private Residences
WTM8022472.681.796Agricultural Pipe, Car Washes, Spas
WTM186334721.252.834Factories, Hospitals, Mines, Boilers
WTM186681321.257.03Steel Fabricators, Public Pools, Cooling Towers
WTM186X281213.522.3711.45Industrial Drainage, Sewage Treatment Outlet Pipes
WTMLM50PUp to .751-24.511.344Ice Machines, Water Coolers, Instant Water Heaters
Dimensions in Inches

Small Pipe Water Treatment Magnet

The WTMLM50P water treater is for all pipes up to .75 inch in diameter. The south pole of the magnet is designated with an "S". Water flow direction should be from north magnetic pole to south magnetic pole. The illustration to the left shows the proper application of this magnet to the pipe. Attach using wire, string, duct tape, zip ties or hose clamp.

Available Model Numbers and Combinations

Model/SKU Attributes
WTM4 4.5" x 1" x 1"
WTM802 7" x 2" x .68"
WTM1863 7" x 2" x 1.25"
WTM186 13" x 2" x 1.25"
WTM186X2 13.5" x 2" x 2.37"
WTMLM50P 4.5" L x 1" W x 1" H
