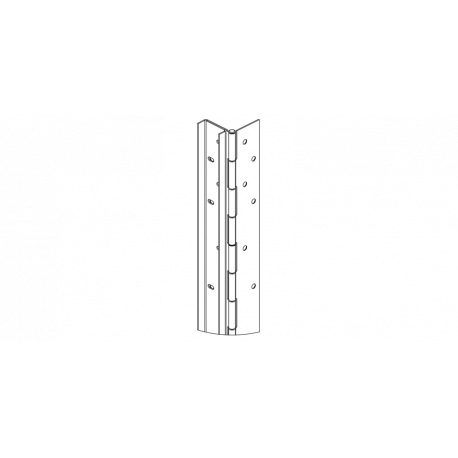

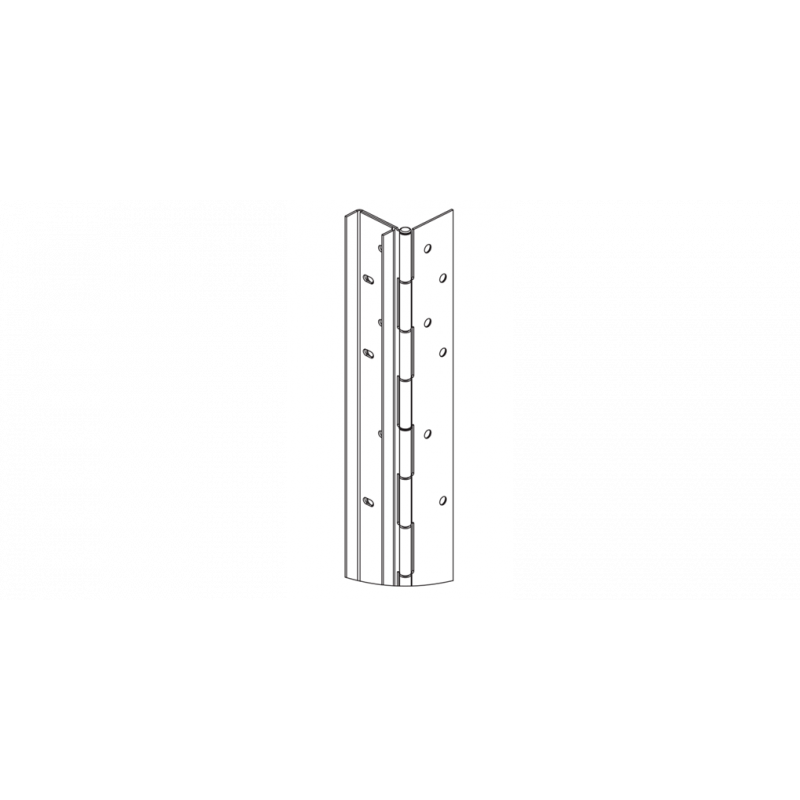

Markar HG105 Hinge/Guard Pin and Barrel Hinge

HG105

$959.41

Details: Markar HG105 Hinge/Guard Pin and Barrel Hinge

  • 3⁄16" diameter stainless steel barrel type hinge pin (rod). Medical bearings. Aluminum end pins
  • 6063-T6 aluminum alloy. Finished in Clear Anodized (628) or Dark Bronze Anodized (313) Other optional finishes available.
  • Fasteners concealed when door is closed. Fastener screw pack includes Custom 12-24 × 11/16 S.S Phillips Flat Head Undercut TEK Screws
  • ANSI/BHMA Standard A156.26 Grade 2

Finish

  • Light Bronze Anodized (311)
  • Scratch-Resistant Powder Coated Paint

Fasteners

  • Tamper-proof security screws
  • Adjust-A-Screw™ for correcting frame fit problems up to 3/8"

Other Features

  • Custom lengths- specify in inches
  • Custom hole pattern
  • Dutch door hinges- suffix "DDP"
  • Hospital tips — suffix "HT"

Electrical Modifications

  • Current Transfer Prep - suffix "CTP"
  • ElectroLynx® EL4 (4 wire), EL8 (8 wire), EL12 (12 wire)
  • PoE (9 wire)

Available Model Numbers and Combinations

Model/SKU Attributes
HG105C-79 79-3/16", Clear Anodized
HG105C-83 83-1/8", Clear Anodized
HG105C-85 Clear Anodized, 85-1/8"
HG105C-95 95", Clear Anodized
HG105D-79 79-3/16", Bronze Anodized
HG105D-83 83-1/8", Bronze Anodized
HG105D-85 Bronze Anodized, 85-1/8"
HG105D-95 95", Bronze Anodized
