> >>>>Marks USA i-Qwik LITE Series Electronic Access Control Lockset
Reduced price! Marks USA i-Qwik LITE Series Electronic Access Control Lockset

Marks USA

Previous Next

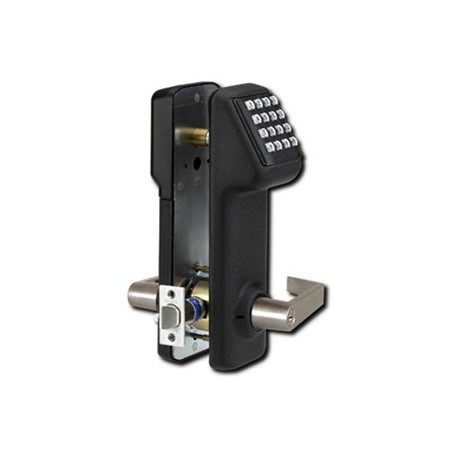

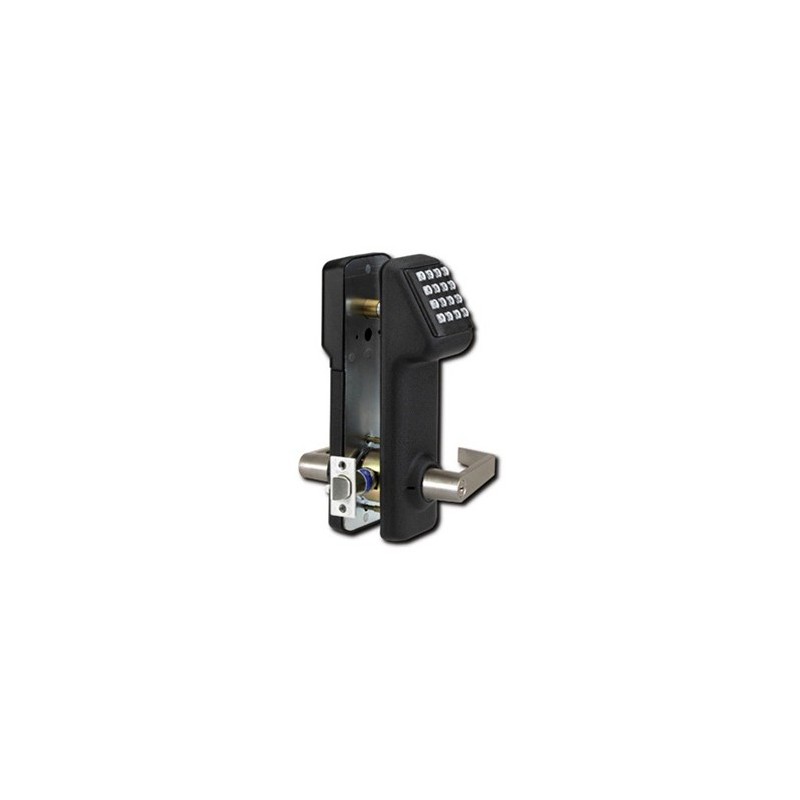

Marks USA i-Qwik LITE Series Electronic Access Control Lockset

IQ

$748.82

Details: Marks USA i-Qwik LITE Series Electronic Access Control Lockset

The i-Qwik Line is Marks USA freestanding access control locksets. They allow doors to be locked or unlocked via a user-programmable keypad, rather than a key. All i-Qwik Line Locksets feature the "CableGard" to protect the wiring going through the door.

Features

  • CableGard protects wires for easy installation
  • Standard ANSI door prep with one additional hole
  • Pre-programmed code
  • Keypad programmable
  • 160 User codes
  • Temporary user codes
  • Passage mode
  • Pin only mode
  • Double code entry for maximum security
  • Two wire remote release
  • 16 Digit tactile metal keypad
  • Durable black powder coat finish with 26D American levers
  • Weatherproof standard
  • Audible & visible entry indicator
  • Audible low battery alert
  • 4 AA batteries; 100,000 operations
  • Easy installation
  • Lifetime Mechanical Warranty; 2 Year Electronic Warranty

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

IQ1 LITE Cylindrical Lockset Specifications

Door Thickness
1-3/4" standard; For thicker doors, Consult factory
Handing
Non-handed
Key Override
Marks "C" keyway, 6 pin w/2 keys, IC Core optional
Lock Body
Cylindrical "Survivor" featuring the "Clutch" for trouble free service
Latch
Grade 2, 2-3/4" backset, 1/2" throw,3 Hour UL fire rating
Strike Plate
4-7/8" ASA strike

IQ2 LITE Mortise Lockset Specifications

Door Thickness
1-3/4" standard; For thicker doors, Consult factory
Handing
Field reversible
Key Override
1-1/8" Mortise cylinder, 6 pin w/2 keys
Lock Body
Grade 1, Series 5, 2-3/4" backset, 3/4" anti-friction latch, 3 Hr UL fire rating
Auxiliary Latch
1/2" throw
Clutch
The "Clutch" for trouble free service
Strike Plate
4-7/8" ASA standard

IQ7 LITE Rim Exit Device Interface Specifications

Door Thickness
1-3/4" standard; For thicker doors, Consult factory
Handing
Non-handed
Key Override
1-1/8" Mortise cylinder, 6 pin w/2 keys
Clutch
The "Clutch" for trouble free service

Downloads

i-Qwik Line - IQLITE

Available Model Numbers and Combinations

Model/SKU Attributes
IQ119 Cylindrical Lockset
IQ1 26D Satin Chrome, Plated, Cylindrical Lockset
IQ219 Mortise Lockset
IQ2 26D Satin Chrome, Plated, Mortise Lockset
IQ719 Rim Exit Device Interface
IQ7 26D Satin Chrome, Plated, Rim Exit Device Interface
