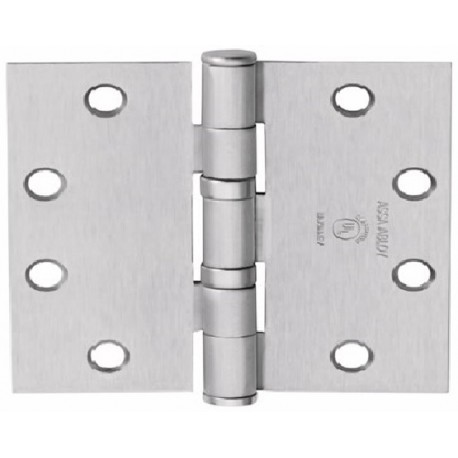

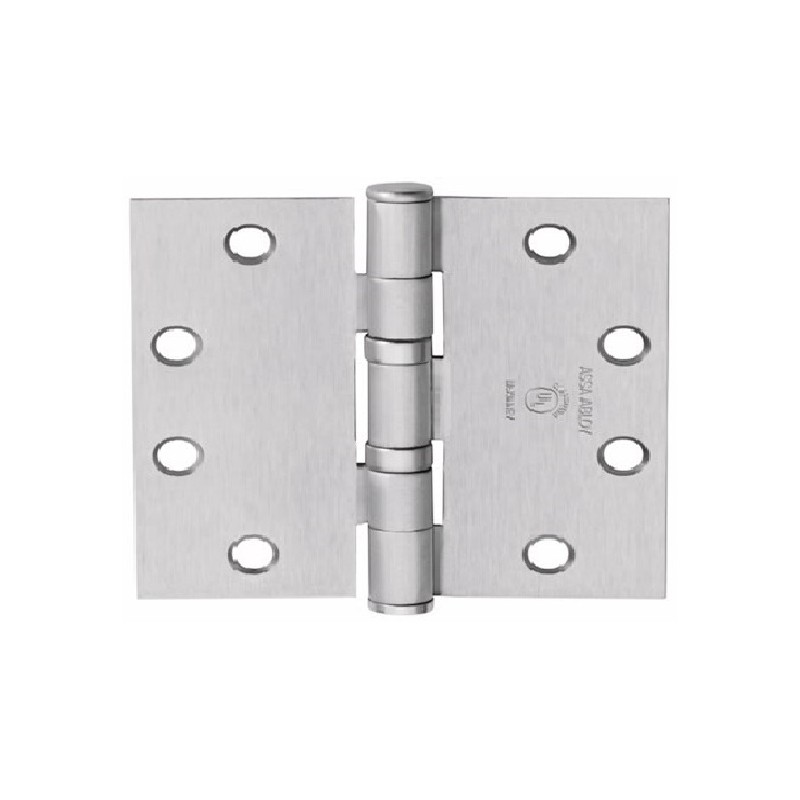

McKinney TA2714 Steel Standard Weight 5 Knuckle Bearing


55385

$16.54

Details: McKinney TA2714 Steel Standard Weight 5 Knuckle Bearing

Steel Standard Weight 5 Knuckle Bearing Series- TA2714

Recommended for standard weight, medium frequency doors, or doors with closing devices

Specification

  • Use for common flush door/frame/wall applications
  • For Beveled Edge, where doors are beveled on hinge side
  • TA2714 and TA2714 NRP 4½" × 4½" in 26D are also available in convenient bulk packaging
  • T2714 steel base material
  • T2714, 4½" × 4½" in 26D are also available in convenient bulk packaging

TA2714

InchesmmGaugeNo. of HoleMachineWood
4½" × 4½"114.3 × 114.313481/2 × 12-241¼ × 12
5" × 4 1⁄2"127 × 114.314681/2 × 12-241¼ × 12

Finishes:

  • US26D
  • US32D
  • US10B
  • USP
  • US3
  • US15
  • US10

Available Model Numbers and Combinations

Model/SKU Attributes
TCA2714 10A 4 1/2" x 4", Concealed Bearing, Antique Bronze, Oiled and Lacquered
TCA2714 15 Satin Nickel, 4 1/2" x 4", Concealed Bearing
HTA2714 26D Satin Chrome, 4 1/2" x 4", Hospital Tip
HTA2714 15 Satin Nickel, 5" x 4 1/2", Hospital Tip
HTA2724 26D-NRP Satin Nickel, 4 1/2" x 4", Safety Stud
TCA2714 26D 4 1/2" x 4", Concealed Bearing, Dull Chromium
TA2714 WSP 3 1/2" x 3 1/2", Knuckle Bearing, White Suede Powder Coat
TA2714 26D Satin Chrome, 4" x 4", Knuckle Bearing
TA2714 BSP 4" x 4", Knuckle Bearing, Black Suede Powder Coat
HTA2714 10 Dull Bronze, 4 1/2" x 4 1/2", Hospital Tip
TCA2714 AP 4 1/2" x 4", Concealed Bearing, Aluminum
TA2714 5 Knuckle Bearing, 4 1/2" x 4 1/2", Dull Brass, Oxidized
TA2714 14 Knuckle Bearing, 4 1/2" x 4 1/2", Bright Nickel Plated
TA2714 P Primed for Painting, 3 1/2" x 3 1/2", Knuckle Bearing
TA2714 AP 3 1/2" x 3 1/2", Knuckle Bearing, Aluminum

View All Model Numbers and Options
