MS Sedco Radio Control ClearPath Transmitters
CP-
The ClearPath™ Radio Control Door Activation System provides the most reliable wireless activation of automatic doors available. To accomplish this, the ClearPath™ product line features several advances, the most important of which is three selectable frequencies built into each product: HDRC™, 300 MHz and 390 MHz.
High Definition Radio Control™ (HDRC™) is the latest breakthrough in radio frequency (RF) signal transmission from MS SEDCO. Unlike conventional RF systems in use today, HDRC™ uses sophisticated componentry that transmits a fixed frequency signal that will not distort due to outside interference. The fixed signal is then transmitted through a proprietary electronic "filter" in the receiver ensuring door activation occurs. For added versatility, each ClearPath™ device also includes the two most widely used conventional frequencies, 300 MHz and 390 MHz. A simple slide of a switch allows the ClearPath™ product line to be used interchangeably with all past MS SEDCO products and other manufacturers products that operate at these frequencies.

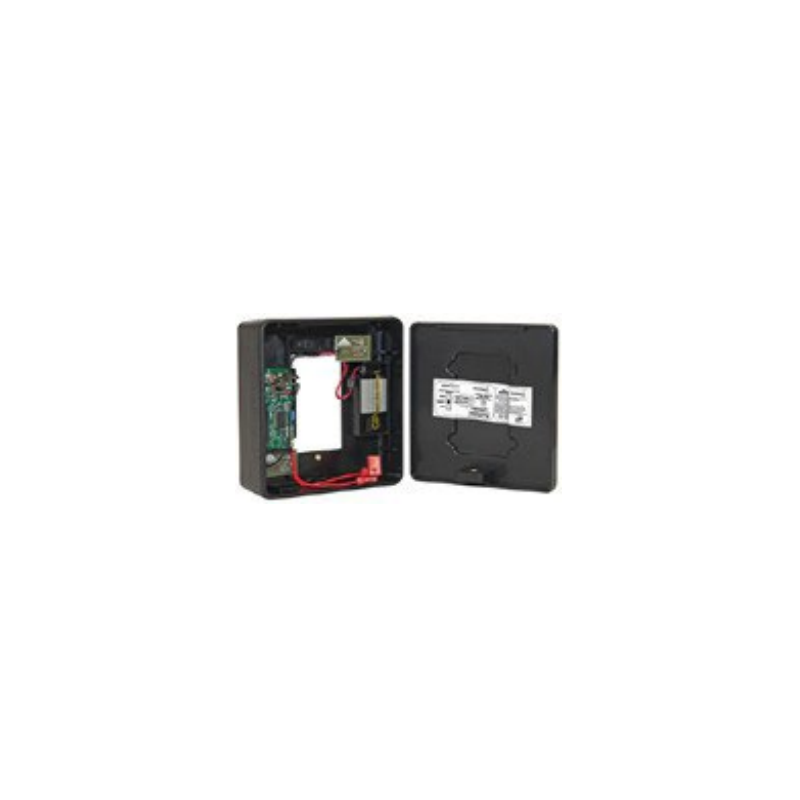

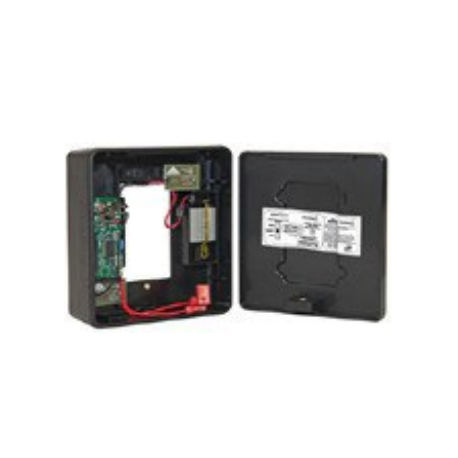

The ClearPath™ transmitters share the same printed circuit board (PCB), come prewired and installed with a battery in a mounting box and feature the above MS SEDCO exclusive advantages.
Model/SKU | Attributes |
---|---|
CP-TX | Standard transmitter, 1020 box, wire harness |
CP-STX | Vestibule Sequencing transmitter, 1020 box, wire harness |
CP-TX-R4 | Standard transmitter, 1025 box, wire harness |
CP-TX-R6 | Standard transmitter, 1030 box, wire harness |
CP-STX-R4 | Vestibule Sequencing transmitter, 1025 box, wire harness |
CP-STX-R6 | Vestibule Sequencing transmitter, 1030 box, wire harness |
