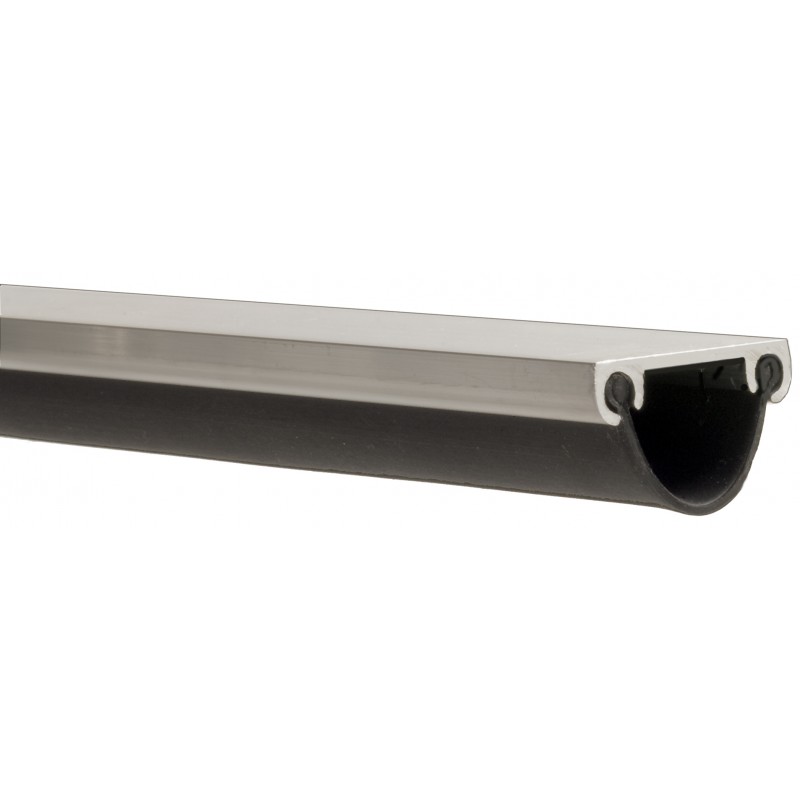

NGP 112N Neoprene Door Bottom or Astragal

112N

$18.75

?

Details: NGP 112N Neoprene Door Bottom or Astragal

Features

  • Aluminum alloy 6063, T5 temper
  • Synthetic rubber polymer blend: Chloroprene and EPDM
  • Very good abrasion resistance, tensile strength and memory
  • Flame resistant
  • Moisture resistant
  • Temperature range -20°F to 200°F
  • Good resistance to ozone, sunlight and aging
  • BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration
  • #6 × 3/4" stainless steel sheet metal screws furnished
  • Screw holes slotted for adjustment
  • Neoprene is black
  • Mill aluminum

Options

Standards

  • CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
  • SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category 'H'; complies with IBC and NFPA 105 for use on 'S' labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
  • ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.

Downloads

NGP LEED Recycled Content Percentage Chart

Available Model Numbers and Combinations

Model/SKU Attributes
112N-12 12", Anodized Aluminum
112N-24 24", Anodized Aluminum
112N-36 36", Anodized Aluminum
112N-48 48", Anodized Aluminum
112N-60 Anodized Aluminum, 60"
112N-72 72", Anodized Aluminum
112N-84 84", Anodized Aluminum
112N-96 96", Anodized Aluminum
112N-108 Anodized Aluminum, 108"
112NDKB-12 12", Dark Bronze
112NDKB-24 24", Dark Bronze
112NDKB-36 36", Dark Bronze
112NDKB-48 48", Dark Bronze
112NDKB-60 Dark Bronze, 60"
112NDKB-72 72", Dark Bronze

View All Model Numbers and Options
