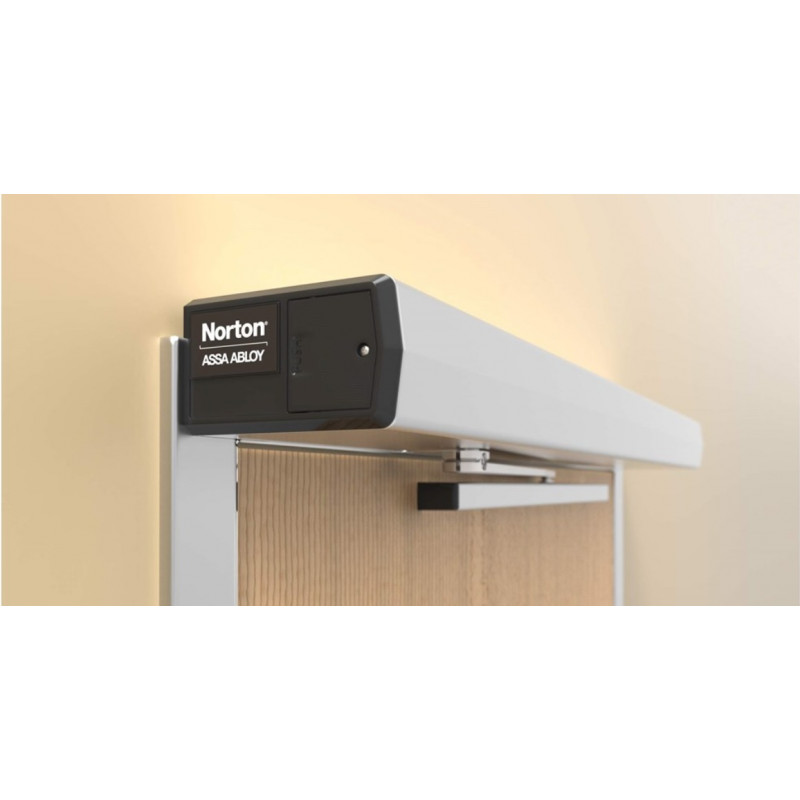

Norton 6300 Touchless Low Energy Door Operator-Universal Unit, Push & Pull Side

$5,933.00

Details: Norton 6300 Touchless Low Energy Door Operator-Universal Unit, Push & Pull Side

The Norton 6300 Series Low Energy Operator offers a broad set of intelligent functions, such as power close, latch assist and obstruction detection to safely secure a variety of moderate to high traffic openings. A unique design with one of the slimmest profiles available allows the 6300 to blend more seamlessly with the frame while fitting challenging applications with minimal header space. A modular design, simple controls, and new wifi interface via a mobile device make for easy installation and setup.

Features

  • Push and pull side mounting.
  • Non-handed.
  • Activated by push button, hands-free and RF devices.
  • Door Width (single or pair): min 36", max 48"
  • Door Weight: 200 lbs.
  • Aesthetically pleasing, slim profile.
  • Modular Design.
  • LCD Screen.
  • Wifi Interface.
  • Push & Go (selectable).
  • Obstruction detection (open and close)
  • Modular design.
  • Latch assist feature for enhanced security
  • Power Close.
  • Selectable mode switch (off, on, hold open)
  • Adjustable opening force.
  • Adjustable closing power.
  • Blow open and blow close for smoke ventilation.
  • 2 year limited warranty.

Applications

  • Corridors
  • Hospitals
  • Universities Entrance Doors
  • Schools
  • Theaters
  • Banks
  • Large office buildings
  • Large department stores

Norton 6300 Series Operator: Operator & Sales Kit Introduction | Norton Door Controls

Downloads

Norton 6300 Door Operator | Push & Go | Norton Door Controls

Norton 6300 Door Operator | Outputs | Norton Door Controls

Norton 6300 Door Operator | Set-Up Procedure | Norton Door Controls

How to program a Norton Rixson 6300 Series Operator

How to program a Norton Rixson 6300 Series Operator - Technical Product Support from ASSA ABLOY on Vimeo.

Available Model Numbers and Combinations

Model/SKU Attributes
6341689700
6341690700
6341BSP700 Black Suede Powder Coat,
6341WSP700 White Suede Powder Coat,
6342689700
6342690700
6342BSP700 Black Suede Powder Coat,
6342WSP700 White Suede Powder Coat,
6341689
6341690
6341BSP Black Suede Powder Coat,
6341WSP White Suede Powder Coat,
6342689
6342690
6342BSP Black Suede Powder Coat,
