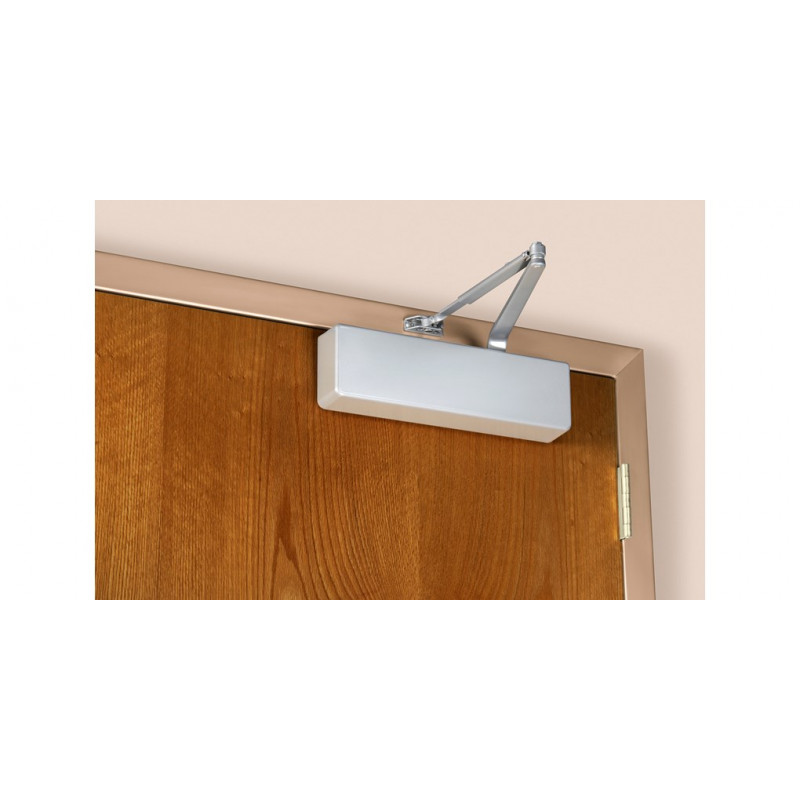

Details: Norton 7500 Institutional Door Closer, Adjustable Size 1-6

The 7500 Series Door Closer offers customers the ideal combination of superior performance, strength and quality. Ideal for interior or exterior doors in facilities that demand reliability.

Specification

**Unitrol® Arm: Door closers shall have a fixed door stop feature effective at one point selected at installation, from 85°-110° in five-degree increments. Door stop shall be cushioned by a shock-absorbing heavy-duty spring action effective at the [soffit plate] [arm shoe] pivot. [Closers shall be provided for parallel arm installation using rigid steel main arm and secondary arm lengths proportional to the door width.] [Closers shall be provided for top jamb installation using steel, rigid main arm and telescoping secondary arm adequate for the frame reveal of the openings.]
**CloserPlus® Arm: Door closers shall have a field reversible door stop. Door closer shall have a feature with selectable on and off ball and detent hold open. Hold open tension shall be adjustable effective at one point selected at installation, from 85°-110° in five degree increments. [Hold open mechanism shall have engage/disengage selection actuated by thumbturn]. Closers shall be provided for parallel arm installation using a forged rigid steel main arm and secondary arm
**CloserPlus Spring™ Arm: Door closers shall have built-in door stop [and holder] effective at one point selected at installation, from 85°-110° in five-degree increments. Door stop mechanism shall be reversible and have a buffer spring that engages prior to the dead stop feature, reducing shock loads to the door and frame assembly. Door stop mechanism shall be attached to soffit plate. [Hold open mechanism shall have engage/disengage selection actuated by thumbturn]. Closers shall be provided for parallel installation using a forged rigid steel main arm and secondary arm

Features

Adjustable spring sizes 1 through 6 (ADA Compliant)
Tri-Style® packaging for regular, top jamb or parallel arm mounting
Exceeds 25 million cycles
Non-handed
Rack-and-pinion design
Cast aluminum body
2-3/16" (56mm) projection
1-1/2" (38mm) diameter piston
5/8" (16mm) diameter pinion journals
Staked valves
Standard, separate and independent, latch, sweep and backcheck intensity valves
Backcheck positioning valve
NorGlide® fluid
Molded plastic cover
All standard arm applications allow doors to swing 180°, conditions permitting
Self-drilling screws
Slide Tracks: push or pull side mounting

Available Model Numbers and Combinations

Model/SKU	Attributes
7500J 7530613EPROMR	Non-Hold Open, Top Jamb only, Reveals 0-3", 7786 Backplate Included, Dark Oxidized Satin Bronze, Not Included, Included, Not Included, Not Included, Not Included, Not Included, Included
7500PS 7540 ST690DAMGR	Non-Hold Open, Included, Not Included, Not Included, Included, Not Included, Not Included, Included
75007500 H693DAPROMGMLL	Hold Open, Regular, Parallel or Top Jamb to 3" Reveal, Included, Included, Not Included, Included, Included, Not Included, Not Included
7500PS 7540 STH 689PROMR	Hold Open, Push Side, Low Profile Slide Track, Not Included, Included, Not Included, Not Included, Not Included, Not Included, Included
7500CLP 7500 RBSPPROEBCMDER	Hold Open, CloserPlus Ramp Arm, Not Included, Included, Included, Not Included, Not Included, Included
7500P 7500 SS693DAMGR	Parallel Arm Application Only, Included, Not Included, Not Included, Included, Not Included, Not Included, Included
7500PS 7540 ST691GMLLDE	Non-Hold Open, Not Included, Not Included, Not Included, Included, Included, Not Included
7500P 7500 SS693DAPROMGDER	Parallel Arm Application Only, Included, Included, Not Included, Included, Not Included, Included
7500J 7530613EDAMGMLL	Non-Hold Open, Top Jamb only, Reveals 0-3", 7786 Backplate Included, Dark Oxidized Satin Bronze, Included, Not Included, Not Included, Included, Included, Not Included, Not Included
7500PS 7540 ST691PROEBCMLLR	Non-Hold Open, Not Included, Included, Included, Not Included, Included, Not Included, Included
7500P 7500 SS693DAPROEBCMG	Parallel Arm Application Only, Included, Included, Included, Included, Not Included, Not Included, Not Included
7500CLP 7500 RWSPEBCMMLLR	Hold Open, CloserPlus Ramp Arm, Not Included, Not Included, Included, Not Included, Included, Not Included, Included
7500UNI 7500 H693DAPROEBCMGDER	Hold Open, Included, Included, Included, Included, Not Included, Included
7500PS 7540 STH 690EBCGMLLDER	Hold Open, Push Side, Low Profile Slide Track, Not Included, Not Included, Included, Included, Included, Included
7500UNI 7500 H694MR	Hold Open, Not Included, Not Included, Not Included, Not Included, Not Included, Not Included, Included
