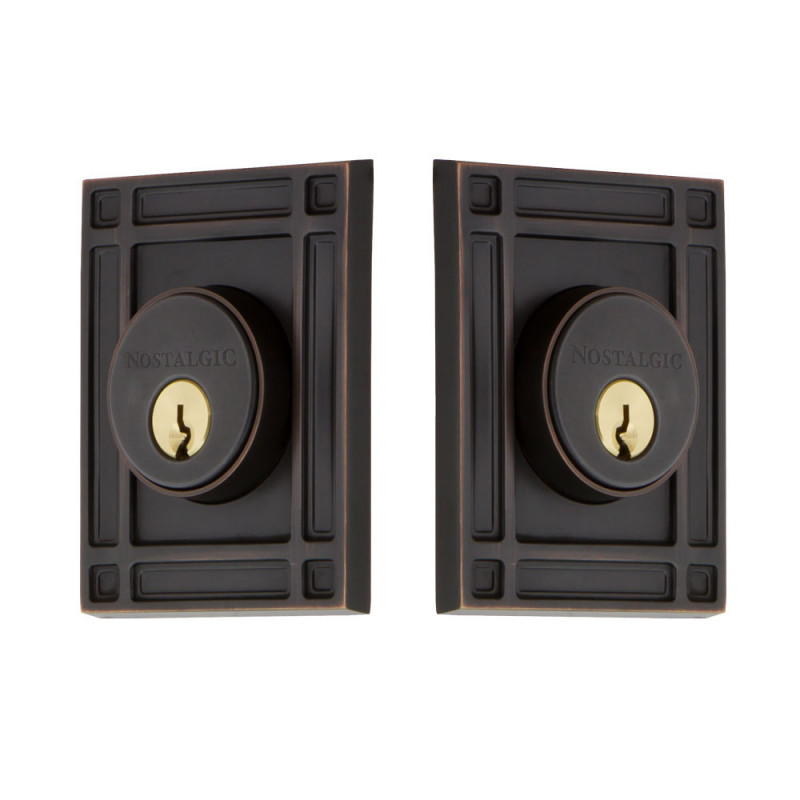

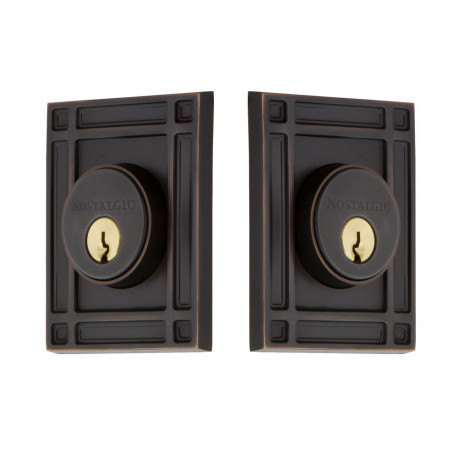

Nostalgic Warehouse MISMIS Mission Plate Deadbolt


703962

$138.75

?
?

Details: Nostalgic Warehouse MISMIS Mission Plate Deadbolt

The Mission Deadbolt harkens to the Spanish Colonial period of the Western frontier, with an instantly recognizable square corner. Made of solid, forged brass for durability and beauty.

Box Contents

Exterior and interior trim deadbolt, deadbolt latch and kit, screws to install and two keys.

Features

  • Solid forged brass for fine detail
  • Complete set for one door (both sides)
  • Perfect for restoration and easy to install on modern pre-drilled doors
  • Hand assembled in USA
  • 5-year warranty

Specifications

Design Code
MISMIS
Collection
Mission
Category
Deadbolt
ADA Rated
No
Finishes Available
Antique Brass, Antique Pewter, Oil-Rubbed Bronze, Satin Nickel, Timeless Bronze
Material
Brass
Door Handing
Non-handed
Backset Options
2 3/8"
Assembled In
USA

Dimensions

Assembled Depth (1.75" door thickness)
3.94"
Projection
Exterior: .713"
Cross Bore
2 1/8""
Door Thickness
1 3/4" - 2 1/4"
Max Height
3.375"
Max Width
2.5"
Thumb Turn Diameter
1.375"
Thumb Turn Projection
1.55"
Edge Bore Hole Diameter
1"
Door Bore Hole Diameter
2.125"
Strike Height
2.25"
Strike Width
1"
Deadbolt Throw Length
1"

Shipping

Box Size
5⅜" × 9⅜" × 2¾"
Shipping Weight
1.5 lbs

Available Model Numbers and Combinations

Model/SKU Attributes
MISMIS 62 DC KA AB 234 2 3/4", Keyed Alike, Antique Brass,
MISMIS 62 DC KD AP 234 2 3/4", Keyed Different, Antique Pewter,
MISMIS 62 DC KA AP 234 2 3/4", Keyed Alike, Antique Pewter,
MISMIS 62 DC KD OB 234 2 3/4", Keyed Different, Oil-rubbed Bronze,
MISMIS 62 DC KA OB 234 2 3/4", Keyed Alike, Oil-rubbed Bronze,
MISMIS 62 DC KD SN 234 Satin Nickel, 2 3/4", Keyed Different,
MISMIS 62 DC KA SN 234 Satin Nickel, 2 3/4", Keyed Alike,
MISMIS 60 SC KD TB 234 2 3/4", Keyed Different, Timeless Bronze,
MISMIS 60 SC KA TB 234 2 3/4", Keyed Alike, Timeless Bronze,
MISMIS 60 SC KD AB 234 2 3/4", Keyed Different, Antique Brass,
MISMIS 60 SC KA AB 234 2 3/4", Keyed Alike, Antique Brass,
MISMIS 60 SC KD AP 234 2 3/4", Keyed Different, Antique Pewter,
MISMIS 60 SC KA AP 234 2 3/4", Keyed Alike, Antique Pewter,
MISMIS 60 SC KD OB 234 2 3/4", Keyed Different, Oil-rubbed Bronze,
MISMIS 60 SC KA OB 234 2 3/4", Keyed Alike, Oil-rubbed Bronze,

View All Model Numbers and Options
