> >>>>Nostalgic Warehouse ROPROP Rope Rosette Deadbolt
Previous Next

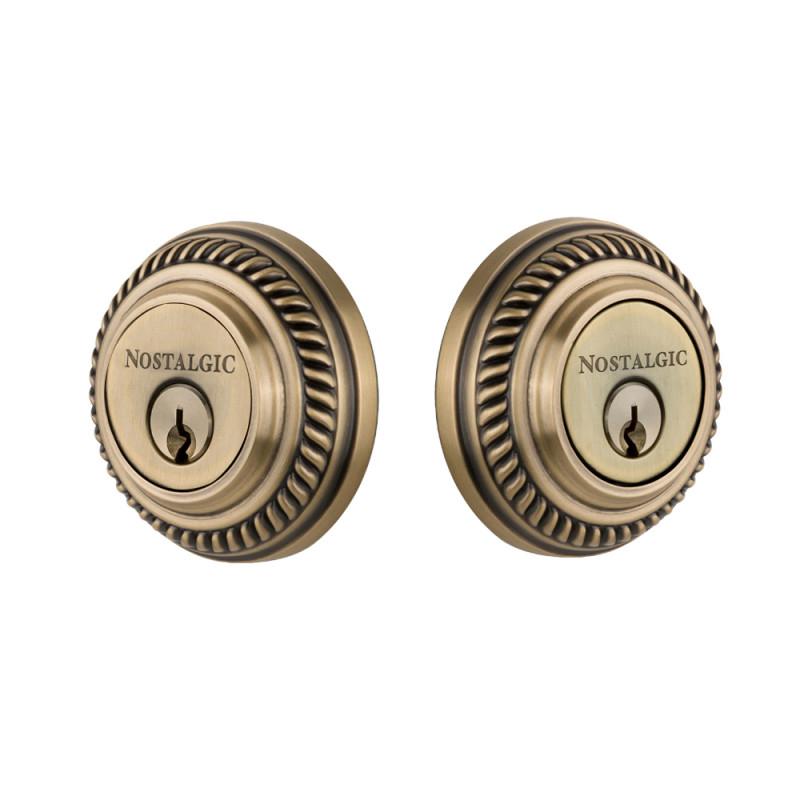

Nostalgic Warehouse ROPROP Rope Rosette Deadbolt


702307

$131.25

?
?

Details: Nostalgic Warehouse ROPROP Rope Rosette Deadbolt

Blending rich detail and subdued refinement, the Rope Deadbolt captures a style that has been a favorite for centuries. Made of solid, forged brass for durability and beauty.

Box Contents

Exterior and interior trim deadbolt, deadbolt latch and kit, screws to install and two keys.

Features

  • Solid forged brass for fine detail
  • Complete set for one door (both sides)
  • Perfect for restoration and easy to install on modern pre-drilled doors
  • Hand assembled in USA
  • 5-year warranty

Specifications

Design Code
ROPROP
Collection
Rope
Category
Deadbolt
ADA Rated
No
Finishes Available
Antique Brass, Antique Pewter, Oil-Rubbed Bronze, Polished Brass, Satin Nickel, Timeless Bronze, Unlacquered Brass
Material
Brass
Door Handing
Non-handed
Backset Options
2 3/8"
Assembled In
USA

Dimensions

Assembled Depth (1.75" door thickness)
4.12"
Projection
Exterior: .72", Interior:1.65"
Cross Bore
2 1/8""
Door Thickness
1 3/4" - 2 1/4"
Max Height
2.625"
Max Width
2.625"
Thumb Turn Diameter
1.375"
Thumb Turn Projection
1.65"
Trim Ring Diameter
2.625"
Edge Bore Hole Diameter
1"
Door Bore Hole Diameter
2.125"
Strike Height
2.25"
Strike Width
1"
Deadbolt Throw Length
1"

Shipping

Box Size
5⅜" × 9⅜" × 2¾"
Shipping Weight
1.5 lbs

Documentation

Available Model Numbers and Combinations

Model/SKU Attributes
ROPROP 62 DC KD AB 238 2 3/8", Keyed Different, Antique Brass,
ROPROP 62 DC KA AB 238 2 3/8", Keyed Alike, Antique Brass,
ROPROP 62 DC KD AP 238 2 3/8", Keyed Different, Antique Pewter,
ROPROP 62 DC KA AP 238 2 3/8", Keyed Alike, Antique Pewter,
ROPROP 62 DC KD OB 238 2 3/8", Keyed Different, Oil-rubbed Bronze,
ROPROP 62 DC KA OB 238 2 3/8", Keyed Alike, Oil-rubbed Bronze,
ROPROP 62 DC KD PB 238 2 3/8", Keyed Different, Polished Brass,
ROPROP 62 DC KA PB 238 2 3/8", Keyed Alike, Polished Brass,
ROPROP 62 DC KD SN 238 Satin Nickel, 2 3/8", Keyed Different,
ROPROP 62 DC KA SN 238 Satin Nickel, 2 3/8", Keyed Alike,
ROPROP 62 DC KD UB 238 2 3/8", Keyed Different, Unlacquered Brass,
ROPROP 62 DC KA UB 238 2 3/8", Keyed Alike, Unlacquered Brass,
ROPROP 62 DC KD TB 238 2 3/8", Keyed Different, Timeless Bronze,
ROPROP 62 DC KA TB 238 2 3/8", Keyed Alike, Timeless Bronze,
ROPROP 60 SC KD AB 238 2 3/8", Keyed Different, Antique Brass,

View All Model Numbers and Options
