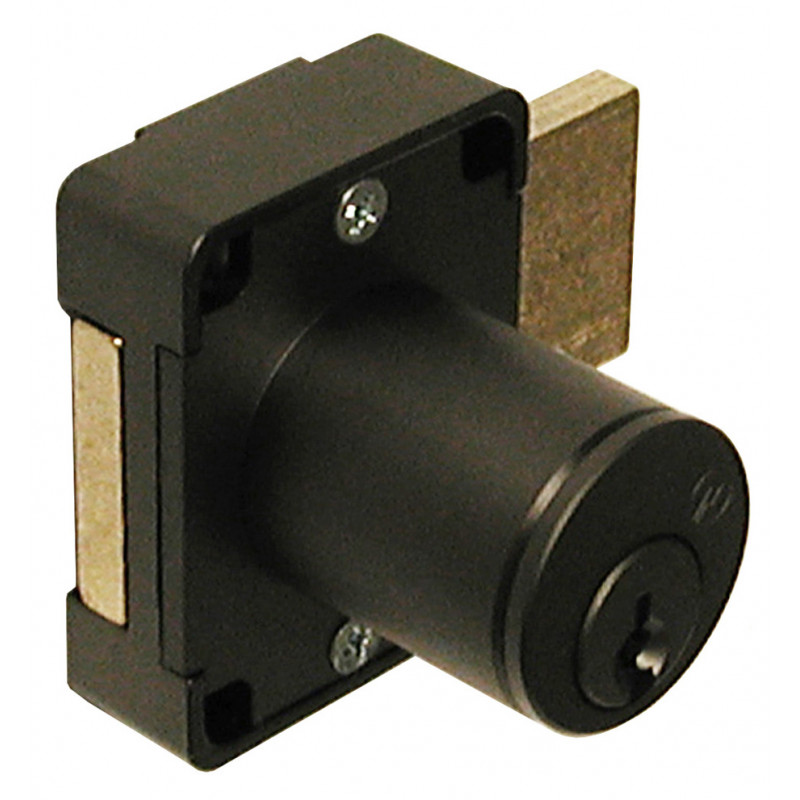

Details: Olympus 500DR Door Deadbolt Lock, 5 Pin

Features

Cabinet deadbolt door lock
Easily rekeyable via set screw cylinder release mechanism
For weather resistant locks see 500B.
For MRI locks see 500M.
(E07121) ANSI/BHMA Grade 1
Solid brass pin tumbler cylinder drilled for 6 pins (stock KA/KD and MK are 5 pinned)
6D, US4 or 10B finish (10B not available on 1-3/8")
Includes bar strike 56-1
Packed 10 per box
*Key-retaining = key removable in locked position only.

R Series: CCL R1 Keyway
Barrel lengths: 15/16" or 1-3/8" specify barrel length when ordering
Barrel diameter: 7/8"
Standard function: locks are non-handed with key removable in the locked and unlocked position
Optional key-retaining* function: Specify 500KR for right-hand or 500KL for left hand
US Patent Nos: 4,899,563; 4,920,774

Model/SKU	Attributes
500KLBUS4-KD78 -LB	Satin Brass, Keyed Different, Included, 7/8", Not Included, Included
500KLBUS4-KD138	Satin Brass, Keyed Different, Included, 1-3/8", Not Included, Not Included
500KLBUS4-KD138 -LB	Satin Brass, Keyed Different, Included, 1-3/8", Not Included, Included
500KLUS4-MK138 -LB	Satin Brass, Not Included, 1-3/8", Not Included, Included
500DR26D-KA78 -LB	Keyed Alike, Not Included, 7/8", Not Included, Included
500DR10B-KD78	Keyed Different, Not Included, 7/8", Not Included, Not Included
500KLBUS4-MK78	Satin Brass, Included, 7/8", Not Included, Not Included
500KLBUS4-MK78 -LB	Satin Brass, Included, 7/8", Not Included, Included
500DR26D-KA138	Keyed Alike, Not Included, 1-3/8", Not Included, Not Included
500KL10B-KA78	Keyed Alike, Not Included, 7/8", Not Included, Not Included
500KLBUS4-MK138	Satin Brass, Included, 1-3/8", Not Included, Not Included
500KLBUS4-MK138 -LB	Satin Brass, Included, 1-3/8", Not Included, Included
500KLB10B-KA78	Keyed Alike, Included, 7/8", Not Included, Not Included
500DR10B-KD78 -LB	Keyed Different, Not Included, 7/8", Not Included, Included
500KL10B-KA78 -LB	Keyed Alike, Not Included, 7/8", Not Included, Included
