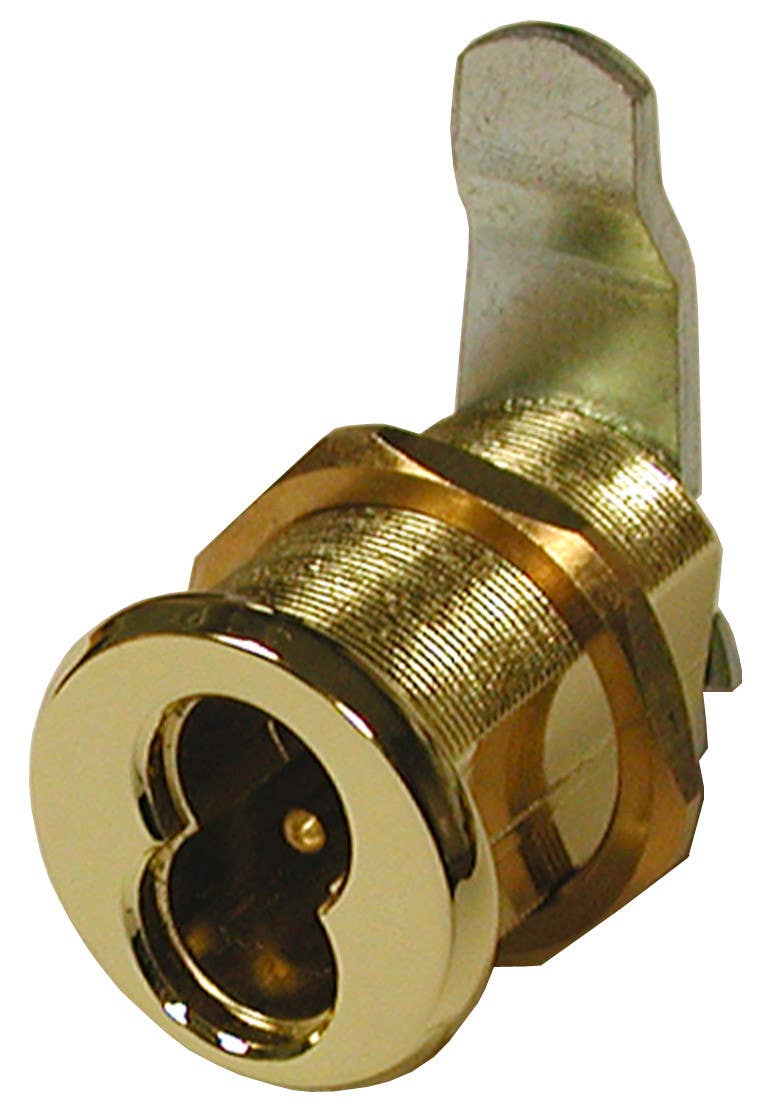

Olympus 720B-DM Best IC Medical Cart / Direct Drive Cam Lock Body
720B-DM
Details: Olympus 720B-DM Best IC Medical Cart / Direct Drive Cam Lock Body
Features
Cam lock (direct drive) - SFIC
Accepts Best, Arrow, Falcon or equivalent 6 or 7 pin small format interchangeable core cylinders
Retrofits Best original 1E7D4 slabbed direct motion cam lock
Works with BEST brand original cams
Standard function: direct drive, key removable in locked position only
Machined solid brass body
Cylinder diameter: 1-1/8
Across flats: 7/8"
Mounting cutout: 1-5/32"
Max. material thickness: 1-1/8"
Min. material thickness: 0.08"
26D finish
Packed 10 per box
WARNING (Proposition 65)
Available Separately
720-3-SC1 switch cam (see specifications below)
Trim collars for extending the face of the lock out from casework material
CL-MP-118 Double D Metal Punch (punches a 7/8" × 1-1/8" cutout in sheet metal for cam lock installation)
SPECIAL NOTE: For lost motion function (key removable in locked and unlocked position), please see 720LM/DM. 720B-DM is direct motion with key removable in the locked position only.
Includes
725-1 spacer for 6 pin cores
725-PA plastic actuator to operate lock without core
720-3-D1 short cam (see specificaitons below)
TR201 trim (spacer) collar 1/8"
TR202 trim (spacer) collar 1/4"
Typical application
For use in metal applications
Examples include: metal drop boxes, electrical panel enclosures, medical carts, etc
